Wheel Horse B-80

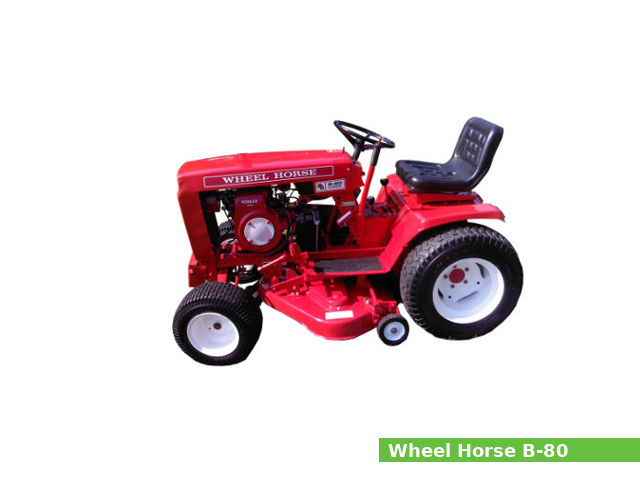

Wheel Horse B-80The Wheel Horse B-80 is a lawn tractor model from the B series, manufactured from 1974 to 1977 by Wheel Horse in South Bend, Indiana, USA. It was available in a two-wheel drive (2WD) version.

The Wheel Horse B-80 is equipped with a 305 cc (18.6 cu·in) single-cylinder gasoline engine with 74.62 mm (2.94 in) of the cylinder bore and 69.85 mm (2.75 in) of the piston stroke, and a belt-driven gear type transmission with 6 forward and 2 reverse gears.

The Wheel Horse B-80 lawn tractor features:

  • The Kohler K181S gasoline engine which produces 8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Open operator station

General specifications

General Specifications
ModelWheel Horse B-80
Tractor typeLawn tractor
Production years1974-1977
FactorySouth Bend, Indiana, USA
Dimensions and weight
Length1,650 mm (65 in)
Width830 mm (32.7 in)
Height1,010 mm (39.8 in)
Wheel base1,150 mm (45.3 in)
Weight244 kg (538 lbs)
Fuel capacity
Fuel tank capacity5.7 liters (1.5 US gal.; 1.3 Imp. gal)

Engine

Engine Specifications
Engine modelKohler K181
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement305 cm3, (18.6 cu·in)
Bore and stroke74.62 mm X 69.85 mm (2.95 in X 2.75 in)
Max. horsepower8.2 PS (6.0 kW; 8.0 HP) at 3,600 rpm
Cooling systemForced air
Lubricating systemSplash type
Fuel systemCarburetor
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
GovernorCentrifugal governor
Valve clearance
Intake valve clearance:0.15-0.20 mm (0.0059-0.0079 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity:0.9 L (1 US. qt, 0.8 Imp. qt.)
Ignition system
Spark plug:Champion RJ8C
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission
Transmission manufacturer or model
Transmission typeBelt-driven gear type
Gears6 forward and 2 reverse
Speed Forward: 8.7 kmh (5.4 mph)
Reverse: 4.2 kmh (2.6 mph)

Tires

Tires
Front tiresLawn/turf: 16×6.50-8
Rear tiresLawn/turf: 22×7.50-12

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery12V, 24Ah

Attachments

Wheel Horse 36″ mower deck with 3-blade
Cutting width910 mm (36 in)
Wheel Horse 42″ front-mount blade
Cutting width1,060 mm (42 in)
Wheel Horse 42″ front-mount snow blower
Cleaning width1,060 mm (42 in)
