Caterpillar C0.7

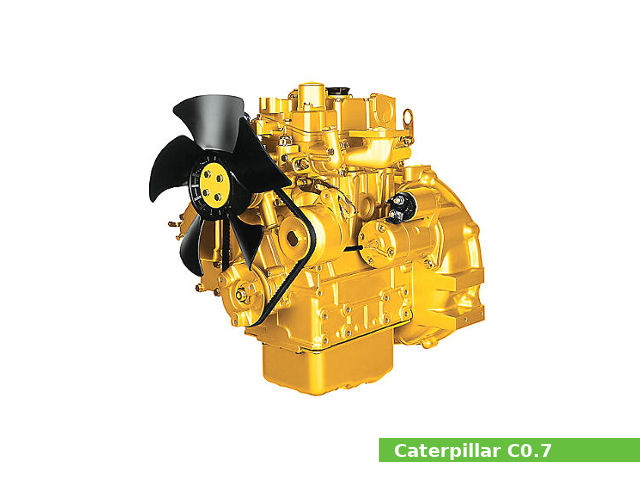

Caterpillar C0.7 engineThe Caterpillar C0.7 is a 0.7 L (760 cc, 46.5 cu·in) naturally aspirated three-cylinders four-stroke liquid-cooled internal combustion vertical diesel engine, manufactured by Caterpillar Inc. Industries and applications powered by Cat C0.7 engines include: compactors and rollers, general industrial, mobile earthmoving, equipment, mobile light towers, turf, and landscaping.

The Cat C0.7 engine has a three-cylinders, cast-iron cylinder block, overhead valve design, indirect injection fuel system, 12 volts electric starter motor, and 12 Volts (14 amp) alternator. This engine used a belt-driven coolant pump and coolant temperature switch. The lubrication system consists of a closed-circuit breather, spin-on lube oil filter, lube oil pressure switch, and lube oil sump.

The CAT C0.7 engine produced:

  • EU Stage IIIA and U.S. EPA Tier 4 Interim equivalent emission standards: From 16.6 PS (12.2 KW; 16.4 HP) at 2,800 rpm to 20.8 PS (15.3 KW; 20.5 HP) at 3,600 rpm of maximum output power.
  • U.S. EPA Tier 4 Final emission standards: 12.0 PS (8.8 kW; 11.8 HP) at 2,800 rpm of maximum horsepower.

General information

Engine Specifications
Engine modelCat C0.7
Engine type4-stroke, OHV, three-cylinders
Displacement760 cm3, (46.5 cu·in)
Max. horsepowerEU Stage IIIA and U.S. EPA Tier 4 Interim equivalent:
16.6 PS (12.2 KW; 16.4 HP) at 2,800 rpm – 20.8 PS (15.3 KW; 20.5 HP) at 3,600 rpm
U.S. EPA Tier 4 Final:
12.0 PS (8.8 kW; 11.8 HP) at 2,800 rpm
Cooling systemLiquid-cooled
Lubricating systemPressure feed
Fuel systemIndirect injection
Fuel usedDiesel
Starting systemStarter motor 12 Volts
Starting aidGlow plug
Charging systemAlternator 12 Volts (14 amp)
PTO shaft rotationCounterclockwise (from flywheel end)
Dimensions (L x W X H)480 x 371 x 528 mm (18.9 x 14.6 x 20.8 in)
Dry weight71.0 kg (156.5 lbs)

Cylinder Block and Head

The Cat C0.7 has a 67.0 mm (2.64 in) cylinder bore and 72.0 mm (2.83 in) piston stroke. Compression ratio rating is 23.5:1. The engine used cast iron engine block, cast iron exhaust manifold and inlet manifold with choice of inlets.

Cylinder block
Cylinder block alloy:Cast-iron
Compression ratio:23.5:1
Cylinder bore:67.0 mm (2.64 in)
Piston stroke:72.0 mm (2.83 in)
Crankshaft center distance:36 mm (1.415 in)
Cylinder head
Cylinder head alloy:Cast-iron
Valve arrangement:OHV
Valves::2 per cylinder (6 valves in total)

Service Data

The engine oil with a viscosity of SAE 10W-30 is recommended for the C0.5, refilling oil capacity is 2.3-3.0 L (2.5-3.2 US. qt).

Oil system
Lubrication system:Pressure feed
Recommended oil:SAE 10W-30
Oil capacity: 2.3-3.0 L (2.5-3.2 US. qt)
Cooling system
Cooling system:Liquid-cooled
Capacity:1.2 L (1.27 qt)
Fuel system
Type:Indirect injection

References

1. CAT C0.7 industrial engine technical datasheet. Caterpillar. 2017.
