Caterpillar C1.1

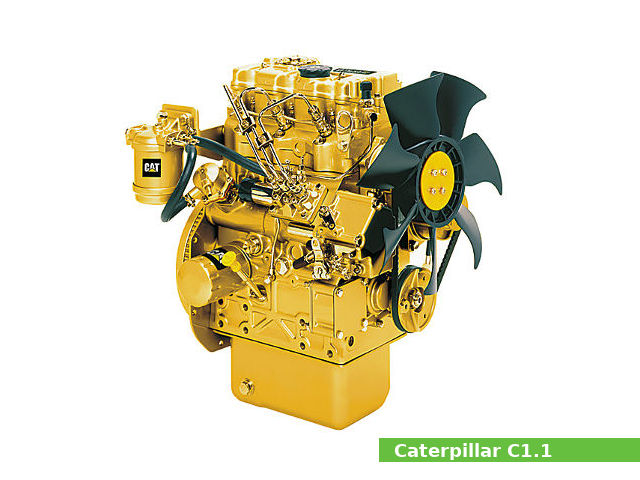

Caterpillar C1.1 engineThe Caterpillar C1.1 is a 1.13 L (1,130 cc, 68.96 cu·in) natural aspirated three-cylinders four-stroke liquid-cooled internal combustion vertical diesel, manufactured by Caterpillar Inc. for general-purpose applications.

The Cat C1.1 engine has a three-cylinders, cast-iron cylinder block, overhead valve design, indirect injection fuel system, 12 volts electric starter motor, and 12 Volts (40 amp) alternator. This engine used a belt-driven coolant pump and coolant temperature switch. The lubrication system consists of a closed-circuit breather, spin-on lube oil filter, lube oil pressure switch, and lube oil sump.

The Caterpillar C1.1 engine produced:

  • EU Stage IIIA emission standards (Standard version): From 20 PS (14.7 kW; 19.7 HP) at 2,200 rpm to 28.6 PS (21 kW; 28.2 HP) at 3,400 rpm of output power and 59 N·m (6 kg·m, 43.5 ft·lb) at 3,200 rpm of torque.
  • EU Stage IIIA emission standards (Derate version): From 18.6 PS (13.7 KW; 18.4 HP) at 2,200 rpm to 24.1 PS (17.7 KW; 23.7 HP) at 3,000 rpm of maximum power
  • U.S. EPA Tier 4 Final emission standards: From 19.6 PS (14.4 KW; 19.3 HP) at 2,200 rpm to 25.0 PS (18.4 KW; 24.7 HP) at 2,800 rpm of power.
  • U.S. EPA Tier 4 Interim emission standards (Standard version): From 20.0 PS (14.7 KW; 19.7 HP) at 2,200 rpm to 28.6 PS (21.0 KW; 28.2 HP) at 3,400 rpm of power.
  • U.S. EPA Tier 4 Interim emission standards (Derate version): From 18.6 PS (13.7 KW; 18.4 HP) at 2,200 rpm to 28.6 PS (21.0 KW; 28.2 HP) at 3,400 rpm of power.

The CAT C1.1 power unit produced:

  • EU Stage IIIA emission standards: 26.8 PS (19.7 KW; 26.4 HP) at 3,000 rpm.
  • U.S. EPA Tier 4 Final emission standards: 19.6 PS (14.4 KW; 19.3 HP) at 2,200 rpm.
  • U.S. EPA Tier 4 Interim emission standards: 24.3 PS (17.9 KW; 24.0 HP) at 3,000 rpm.

General information

Engine Specifications
Engine model Cat C1.1
Engine type 4-stroke, OHV, three-cylinders
Displacement 1,130 cm3, (68.96 cu·in)
Max. horsepower Engine
EU Stage IIIA (Standard version):
20 PS (14.7 kW; 19.7 HP) at 2,200 rpm to
28.6 PS (21 kW; 28.2 HP) at 3,400 rpm
EU Stage IIIA (Derate version):
18.6 PS (13.7 KW; 18.4 HP) at 2,200 rpm to
24.1 PS (17.7 KW; 23.7 HP) at 3,000 rpm
U.S. EPA Tier 4 Final:
19.6 PS (14.4 KW; 19.3 HP) at 2,200 rpm to
25.0 PS (18.4 KW; 24.7 HP) at 2,800 rpm
U.S. EPA Tier 4 Interim (Standard version):
20.0 PS (14.7 KW; 19.7 HP) at 2,200 rpm to
28.6 PS (21.0 KW; 28.2 HP) at 3,400 rpm
U.S. EPA Tier 4 Interim (Derate version):
18.6 PS (13.7 KW; 18.4 HP) at 2,200 rpm to
28.6 PS (21.0 KW; 28.2 HP) at 3,400 rpm

Power unit:
EU Stage IIIA emission standards:
26.8 PS (19.7 KW; 26.4 HP) at 3,000 rpm
U.S. EPA Tier 4 Final emission standards:
19.6 PS (14.4 KW; 19.3 HP) at 2,200 rpm
U.S. EPA Tier 4 Interim emission standards:
24.3 PS (17.9 KW; 24.0 HP) at 3,000 rpm

Max. torque EU Stage IIIA (Standard version):
59 N·m (6 kg·m, 43.5 ft·lb) at 3,200 rpm
Cooling system Liquid-cooled
Lubricating system Pressure feed
Fuel system Indirect injection
Fuel used Diesel
Starting system Starter motor 12 Volts
Starting aid Glow plug
Charging system Alternator 12 Volts (40 amp)
PTO shaft rotation Counterclockwise (from flywheel end)
Dimensions (L x W x H) Engine: 491 x 400 x 576 mm (19.3 x 15.7 x 22.7 in)
Power unit: 778 x 438 x 730 mm (30.6 x 17.2 x 28.7 in)
Dry weight Engine:87.0 kg (192 lbs)
Power unit: 129.0 kg (284.0 lbs)

Cylinder Block and Head

Cylinder bore and piston stroke are 77.0 mm (3.03 in) and 81.0 mm (3.19 in), respectively. Compression ratio rating is 23.0:1. The engine used cast iron engine block, cast iron exhaust manifold and inlet manifold with choice of inlets.

Cylinder block
Cylinder block alloy: Cast-iron
Compression ratio: 23.0:1
Cylinder bore: 77.0 mm (3.03 in)
Piston stroke: 81.0 mm (3.19 in)
Crankshaft center distance: 40.5 mm (1.595 in)
Cylinder head
Cylinder head alloy: Cast-iron
Valve arrangement: OHV
Valves: 2 per cylinder, (6 valves in total)

Service Data

The engine oil with a viscosity of SAE 10W-30 is recommended for the C1.1, refilling oil capacity is 4.4 L (4.65 US. qt, 3.87 Imp. qt.).

Oil system
Lubrication system: Pressure feed
Oil capacity: 4.4 L (4.65 US. qt, 3.87 Imp. qt.)
Cooling system
Cooling system: Liquid-cooled
Capacity: 1.9 L (2.0 U.S. qts)
Fuel system
Type: Indirect injection

References

1. CAT C1.1 industrial engine technical datasheet. Caterpillar. 2014.
