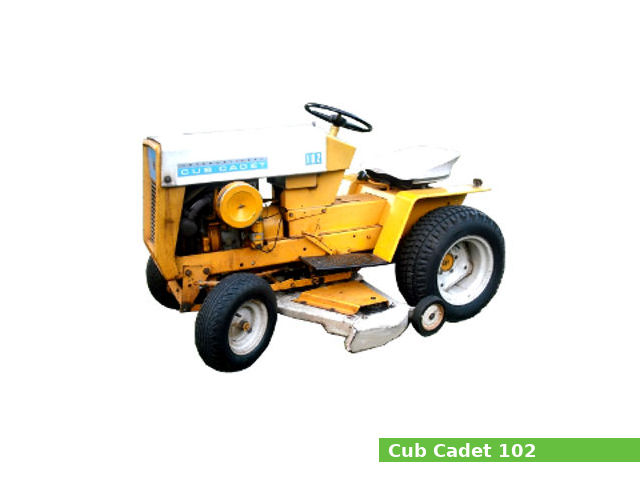

Cub Cadet 102The Cub Cadet 102 is a lawn tractor model from the 1X2/1X3 series, manufactured from 1965 to 1967 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in a two-wheel drive (2WD) version.

The Cub Cadet 102 is equipped with a 391 cc (23.9 cu·in) single-cylinder gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and shaft-driven gear type transmission with 3 forward and 1 reverse gear with dry disc clutch (6 forward and 2 reverse gears with creeper).

The Cub Cadet 102 lawn tractor features:

  • The Kohler K241AS gasoline engine which produces 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Dry disc brakes
  • Open operator station
  • Independent front PTO
  • Transmission rear PTO

General specifications

General Specifications
Model Cub Cadet 102
Tractor type Lawn tractor
Production years 1965-1967
Factory Louisville, Kentucky, USA
Dimensions and weight
Length 1,600 mm (63 in)
Width 840 mm (33.1 in)
Height 1,010 mm (39.8 in)
Wheel base 1,090 mm (42.9 in)
Weight 353 kg (778 lbs)
Fuel capacity
Fuel tank capacity 6.2 liters (1.6 US gal.; 1.4 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K241AS
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 391 cm3, (23.86 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Compression ratio 7.0:1
Max. horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Cooling system Forced air
Lubricating system Splash type
Ignition system Battery ignition system
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Ignition system
Type: Battery ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission
Transmission manufacturer or model
Transmission type Shaft-driven gear type with dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 11.1 kmh (6.9 mph)
Reverse: 4.0 kmh (2.5 mph)
Transmission № 2
Transmission manufacturer or model
Transmission type Creeper
Gears 6 forward and 2 reverse
Speed Forward: 2.7 kmh (1.7 mph)
Reverse: 1.0 kmh (0.6 mph)

Tires

Tires
Front tires Lawn/turf: 4.80×4.00-8, 16×6.50-8
Rear tires Lawn/turf: 6-12, 23×8.50-12

PTO (Power take-off shaft)

PTO
Front PTO type Independent
Front PTO speed
Rear PTO type Transmission
Rear PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Generator
Charging amps
Battery 12V

Serial numbers

Cub Cadet 102 serial numbers
1965 127161
1966 137051
1967 180268
Final 218009

Attachments

Cub Cadet: 38″ mower deck with 3-blade and manual lift
Cutting width 960 mm (38 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet: 42″ mower deck with 3-blade and manual lift
Cutting width 1,060 mm (42 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet: 48″ mower deck with 3-blade and manual lift
Cutting width 1,210 mm (48 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet 42″ blade and manual lift and manual angle
Cutting width 1,060 mm (42 in)
Height: 400 mm (16 in)
Cub Cadet 36″ front-mount snow blower with manual lift
Cleaning width 910 mm (36 in)
