Cub Cadet 1861

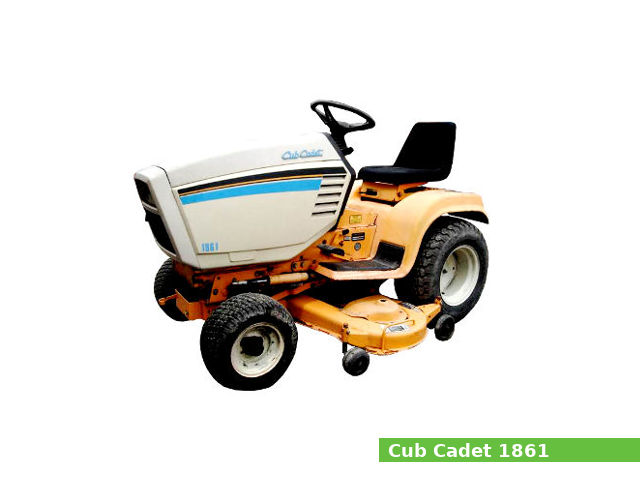

Cub Cadet 1861The Cub Cadet 1861 is a garden tractor model manufactured from 1991 to 1992 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet 1861 is equipped with a 691 cc (42.2 cu·in) two-cylinder gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke, and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 1861 garden tractor features:

  • The Kohler Magnum M18 gasoline engine which produces 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Disc brakes
  • Open operator station
  • Category 0 rear hitch (optioanl)
  • Independent front PTO with electric clutch and 3600 rpm

General specifications

General Specifications
Model Cub Cadet 1861
Tractor type Garden tractor
Production years 1991-1992
Factory
Dimensions and weight
Length 1,820 mm (71.7 in)
Width 950 mm (37.4 in)
Height 1,110 mm (43.7 in)
Wheel base 1,180 mm (46.5 in)
Ground clearance 150 mm (5.9 in)
Weight 379 kg (836 lbs)
Fuel capacity
Fuel tank capacity 18.9 liters (5 US gal.; 4.2 Imp. gal)

Engine

Engine Specifications
Engine model Kohler M18
Engine type 4-stroke, L-head (side valve), V-twin
Displacement 691 cm2, (42.2 cu·in)
Bore and stroke 79.0 mm X 70.0 mm (3.11 in X 2.76 in)
Max. horsepower 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm
Starting system Electirc starter, 12V
Cooling system
Cooling system Forced air
Air cleaner Replaceable, paper element
Fuel system
Fuel system Carburetor
Fuel pump type Mechanical
Fuel filter type In-line
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.076-0.152 mm (0.003-0.006 in)
Exhaust valve clearance: 0.278-0.354 mm (0.011-0.014 in)
Oil system
Lubricating system Full pressure with oil filter
Oil filter: Full-flow type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.9 L (2.0 US. qt, 1.7 Imp. qt.)
Ignition system
Spark plug: Champion RV17YC
Spark plug gap: 0.89 mm (0.035 in)
Spark plug torque: 18 N·m (1.8 kg·m, 13.3 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission
Transmission manufacturer or model
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph)
Reverse: 6.4 kmh (4 mph)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12

Rear Hitch

Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Front PTO type Independent with electric clutch
Front PTO speed 3,600 rpm

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 15A
Battery 12V, CCA 440A

Serial numbers

Cub Cadet 1861 serial numbers
1991 811672
1992 821101

Attachments

Cub Cadet 190357: 38″ mid-mount mower deck with 2-blade and hydraulic lift
Cutting width 960 mm (38 in)
Cutting height 38-101 mm (1.5-4.0 in)
Deck style Stamped
Cub Cadet 190358: 44″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width 1,110 mm (44 in)
Cutting height 38-113 mm (1.5-4.5 in)
Deck style Stamped
Cub Cadet 190336: 46″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width 1,160 mm (46 in)
Cutting height 38-113 mm (1.5-4.5 in)
Deck style Stamped
Cub Cadet 190359: 50″ mid-mount mower deck with 3-blade and hydraulic lift
Cutting width 1,270 mm (05 in)
Cutting height 38-113 mm (1.5-4.5 in)
Deck style Stamped
Cub Cadet 190375: 42″ front-mount blade
Cutting width 1,110 mm (42 in)
Cub Cadet 190376: 54″ front-mount blade
Cutting width 1,370 mm (54 in)
Cub Cadet 190450: 45″ front-mount two-stage snowblower
Cleaning width 1,140 mm (45 in)
Drive type Belt
