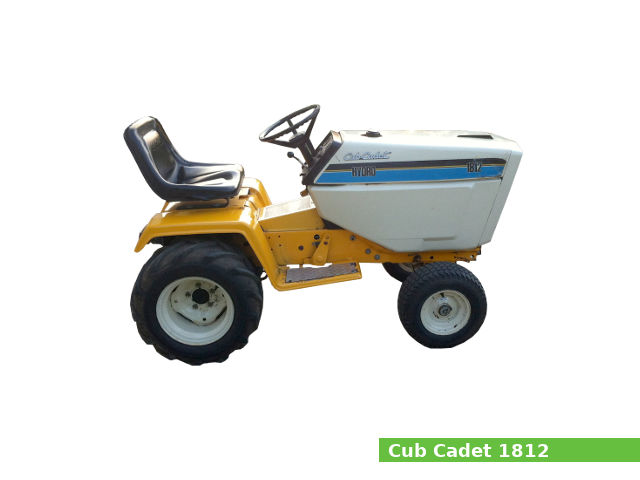

Cub Cadet 1812 is a garden tractor model manufactured from 1986 to 1989 by Cub Cadet (a part of MTD) in Brownsville, Tennessee, USA. It was available in two-wheel drive (2WD) version.
The Cub Cadet 1812 is equipped with a 691 cc (42.2 cu·in) two-cylinder gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke, and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet 1812 garden tractor features:
The Kohler M18 gasoline engine which produces 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm of horsepower Manual steering Dry disc brakes Open operator station Category 0 rear hitch (optional) Independent front PTO with 3,600 rpm General specifications General Specifications Model Cub Cadet 1812 Tractor type Garden tractor Production years 1986-1989 Factory Brownsville, Tennessee, USA Dimensions and weight Length 1,820 mm (71.7 in) Width 950 mm (37.4 in) Height 1,090 mm (42.9 in) Wheel base 1,110 mm (43.7 in) Ground clearance 150 mm (5.9 in) Weight – Fuel capacity Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Engine Engine Specifications Engine model Kohler M18 Engine type 4-stroke, L-head (side valve), V-twin Displacement 691 cm2 , (42.2 cu·in) Bore and stroke 79.0 mm X 70.0 mm (3.11 in X 2.76 in) Max. horsepower 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm Starting system Electirc starter, 12V Cooling system Cooling system Forced air Air cleaner Replaceable, paper element Fuel system Fuel system Carburetor Fuel pump type Mechanical Fuel filter type In-line Compression pressure Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm Valve clearance Intake valve clearance: 0.076-0.152 mm (0.003-0.006 in) Exhaust valve clearance: 0.278-0.354 mm (0.011-0.014 in) Oil system Lubricating system Full pressure with oil filter Oil filter: Full-flow type Oil type: API SF or SG Recommended oil: Summer: SAE 30WWinter: SAE 5W-20, 5W-30 Oil capacity: 1.9 L (2.0 US. qt, 1.7 Imp. qt.) Ignition system Spark plug: Champion RV17YCSpark plug gap: 0.89 mm (0.035 in) Spark plug torque: 18 N·m (1.8 kg·m, 13.3 ft·lb)
Transmission and chassis Chassis, steering and brakes Chassis 4×2 2WD Steering type Manual Brakes Dry disc Transmission Transmission manufacturer or model – Transmission type Shaft-driven hydrostatic Gears Infinite forward and reverse Speed Forward: 12.1 kmh (7.5 mph)Reverse: 6.4 kmh (4 mph) Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires Tires Front tires Lawn/turf: 16×6.50-8Rear tires Lawn/turf: 23×10.50-12
Rear Hitch Three-Point Hitch Category 0 Control type – Lift capacity (at ends) –
PTO (Power take-off shaft) PTO Front PTO type Independent with electric clutch Front PTO speed 3,600 rpm
Electrical system Electrical system Ground Negative Charging system Alternator Charging amps 15A Battery 12V
Serial numbers Cub Cadet 1812 serial numbers 1986 747225 1987 756300 1988 767352 1989 779097
Attachments Cub Cadet 190357: 38″ mid-mount mower deck with 2-blade and hydraulic lift Cutting width 960 mm (38 in) Cutting height 38-101 mm (1.5-4.0 in) Deck style Stamped Cub Cadet 190358: 44″ mid-mount mower deck with 3-blade and hydraulic lift Cutting width 1,110 mm (44 in) Cutting height 38-113 mm (1.5-4.5 in) Deck style Stamped Cub Cadet 190336: 46″ mid-mount mower deck with 3-blade and hydraulic lift Cutting width 1,160 mm (46 in) Cutting height 38-113 mm (1.5-4.5 in) Deck style Stamped Cub Cadet 190359: 50″ mid-mount mower deck with 3-blade and hydraulic lift Cutting width 1,270 mm (05 in) Cutting height 38-113 mm (1.5-4.5 in) Deck style Stamped Cub Cadet 190375: 42″ front-mount blade Cutting width 1,110 mm (42 in) Cub Cadet 190376: 54″ front-mount blade Cutting width 1,370 mm (54 in) Cub Cadet 190364: 45″ front-mount two-stage snowblower Cleaning width 1,140 mm (45 in) Drive type Belt
