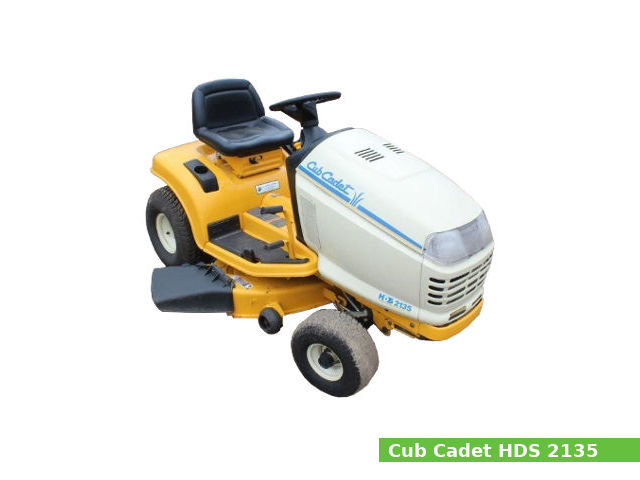

Cub Cadet HDS 2135 is a lawn tractor model from the 2000 series, manufactured from 1994 to 1998 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.
The Cub Cadet HDS 2135 is equipped with a 398 cc (24.3 cu·in) single-cylinder gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet HDS 2135 lawn tractor features:
The Kohler Command CH12.5 gasoline engine which produces 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm of horsepower or the CH13 with 13.3 PS (9.75 KW; 13.0 HP) at 3,600 rpm of horsepower for 1998 and 1999 model yaers Manual steering Internal expanding brakes Open operator station Independent front PTO with electric clutch Lawn/turf tires, front: 15×6-6, rear: 20×9-8 11.4 liters (3.0 US gal.; 2.5 Imp. gal) fuel tank General specifications General Specifications Model Cub Cadet HDS 2135 Tractor type Lawn tractor Production years 1994-1998 Factory – Dimensions and weight Length 1,820 mm (71.7 in) Width 1,140 mm (44.9 in) Height 1,060 mm (41.7 in) Wheelbase 1,190 mm (46.9 in) Ground clearance 150 mm (5.9 in) Weight 255 kg (562 lbs) Front tread 760 mm (30.0 in) Rear tread 690 mm (27.5 in) Fuel capacity Fuel tank capacity 11.4 liters (3.0 US gal.; 2.5 Imp. gal)
Engine Engine (1994-1997) Engine model Kohler Command CH12.5 Engine type Four-stroke, air-cooled, OHV Cylinders Single Fuel type Gasoline Displacement 0.4 L, 398 cm2 , (24.3 cu·in) Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in) Compression ratio 8.5:1 Horsepower 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm Max. torque 20.5 N·m (2.1 kg·m, 15.1 ft·lb) at 2,500 rpm Starter Electric 12V Oil system Lubrication system: Full pressurized Oil type: API SJ or higherRecommended oil: SAE 10W-30Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts) Ignition system Spark plug: Champion RC12YC Spark plug gap: 1.02 mm (0.040 in) Spark plug torque: 38.0-43.4 Nm (3.9-4.4 kgf·m; 28.0-32.0 lb·ft)
Engine (1998-1999) Engine model Kohler Command CH13 Engine type Four-stroke, air-cooled, OHV Cylinders Single Fuel type Gasoline Displacement 0.4 L, 398 cm2 , (24.3 cu·in) Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in) Compression ratio 8.5:1 Horsepower 13.3 PS (9.75 KW; 13.0 HP) at 3,600 rpm Max. torque 28.8 Nm (2.9 kg·m; 21.2 ft·lb) at 2,400 rpm Starter Electric 12V Oil system Lubrication system: Full pressurized Oil type: API SJ or higherRecommended oil: SAE 10W-30Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts) Ignition system Spark plug: Champion RC12YC Spark plug gap: 1.02 mm (0.040 in) Spark plug torque: 38.0-43.4 Nm (3.9-4.4 kgf·m; 28.0-32.0 lb·ft)
Transmission and chassis Chassis, steering and brakes Chassis 4×2 2WD Steering type Manual Brakes Internal expanding Transmission Transmission manufacturer or model – Transmission type Shaft-driven hydrostatic Gears Infinite forward and reverse Speed Forward: 9.3 kmh (5.8 mph)Reverse: 4.8 kmh (3 mph) Transmission oil capacity 7.1 L (1.9 US. gal, 1.6 Imp. gal.)
Tires Tires Front tires Lawn/turf: 15×6-6Rear tires Lawn/turf: 20×9-8
PTO (Power take-off shaft) PTO Front PTO type Independent with electric clutch Front PTO speed –
Electrical system Electrical system Ground Negative Charging system Flywheel alternator Charging amps 15A Battery 12V CCA: 275A
Attachments Cub Cadet: 38″ mid-mount mower deck with 2-blade and manual lift Cutting width 960 mm (38 in) Cut height 30-100 mm (1.5-4.25 in) Cub Cadet 190302: 42″ front-mount blade Width 1,060 mm (42 in) Cub Cadet 190303: 40″ two-stage front-mount snow blower with manual lift Width 1,010 mm (40 in)
