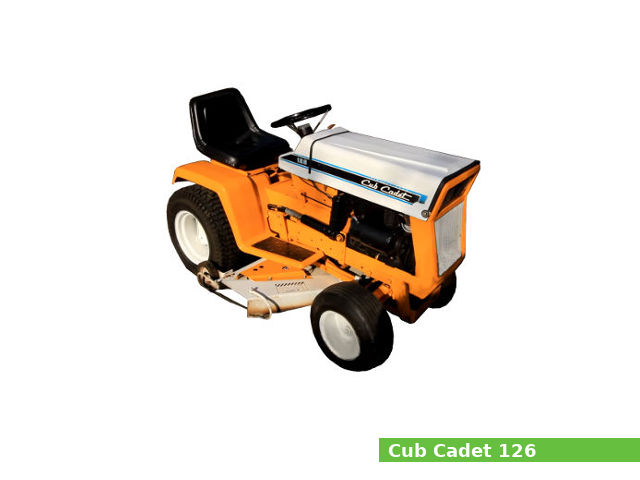

Cub Cadet 126 is a garden tractor model from the 1X6/1X7 series, manufactured from 1969 to 1971 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in a two-wheel drive (2WD) version.
The Cub Cadet 126 is equipped with a 476 cc (29.0 cu·in) single-cylinder gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke, and one of two transmissions: a gear type transmission with 3 forward and 1 reverse gear (6 forward and 2 reverse gears with creeper).
The Cub Cadet 126 garden tractor features:
The Kohler K301A gasoline engine which produces 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of horsepower Manual steering Dry disc brakes Open operator station Cub Cadet three-point hitch (optional) Front PTO with 3,600 rpm Transmission rear PTO with 515 rpm General specifications General Specifications Model Cub Cadet 126 Tractor type Garden tractor Production years 1969-1971 Factory Louisville, Kentucky, USA Dimensions and weight Length 1,620 mm (63.8 in) Width 910 mm (35.8 in) Height 1,000 mm (39.4 in) Wheel base 1,090 mm (42.9 in) Ground clearance 150 mm (5.9 in) Weight 290 kg (639 lbs) Fuel capacity Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Engine Engine Specifications Engine model Kohler K301S Engine type 4-stroke, L-head (side valve), single-cylinder Displacement 476 cm3 , (29.0 cu·in) Bore and stroke 85.7 mm X 82.6 mm (3.37 in X 3.25 in) Compression ratio 6.0:1 Max. horsepower 12.2 PS (9.0 kW; 12.0 HP) at 3,600 rpm Torque 26.6 N·m (2.7 kg·m, 19.6 ft·lb) Cooling system Forced air Lubricating system Splash type Fuel system Carburetor Starting system Electirc starter Compression pressure Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm Valve clearance Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in) Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in) Oil system Lubrication system: Splash type Oil type: API SF or SG Recommended oil: Summer: SAE 30WWinter: SAE 5W-20, 5W-30 Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.) Ignition system Spark plug: Champion RH10Spark plug gap: 0.65 mm (0.0256 in) Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Transmission and chassis Chassis, steering and brakes Chassis 4×2 2WD Steering type Manual Brakes Dry disc Transmission Transmission manufacturer or model – Transmission type Gear type with dry disc clutch Gears 3 forward and 1 reverse Speed Forward: 10.9 kmh (6.8 mph)Reverse: 4.0 kmh (2.5 mph) Transmission oil capacity 3.3 L (0.9 US. gal, 0.7 Imp. gal.) Transmission № 2 Transmission manufacturer or model – Transmission type Creeper Gears 6 forward and 2 reverse Speed Forward: 10.9 kmh (6.8 mph)Reverse: 4.0 kmh (2.5 mph) Transmission oil capacity 3.8 L (1 US. gal, 0.8 Imp. gal.)
Tires Tires Front tires Lawn/turf: 4.80×4.00-8Rear tires Lawn/turf: 23×8.50-12
Rear Hitch Three-Point Hitch Category Cub Cadet three-point (optional) Control type – Lift capacity (at ends) –
PTO (Power take-off shaft) PTO Front PTO type – Front PTO speed 3,600 rpm Rear PTO type Transmission with dry disc clutch Rear PTO speed 515 rpm
Electrical system Electrical system Ground Negative Charging system Generator Charging amps 15A Battery 12V
Serial numbers Cub Cadet 126 serial numbers 1969 307000 1970 322858 1971 373301 Final 400000
Attachments Cub Cadet 38″ mid-mount mower deck with manual or electric (optional) lift Cutting width 960 mm (38 in) Cut height 20-100 mm (1-4 in) Cub Cadet 42″ mid-mount mower deck with manual or electric (optional) lift Cutting width 1,060 mm (42 in) Cut height 20-100 mm (1-4 in) Cub Cadet 50″ mid-mount mower deck with manual or electric (optional) lift Width 1,270 mm (50 in) Cut height 20-100 mm (1-4 in) Cub Cadet 42″ front-mount blade Cutting width 1,060 mm (42 in) Cut height 40 mm (16 in) Cub Cadet QA-36: 36″ two-stage front-mount snow blower Width 910 mm (36 in) Cub Cadet QA-42: 42″ two-stage front-mount snow blower Width 1,060 mm (42 in)
