Kohler K301

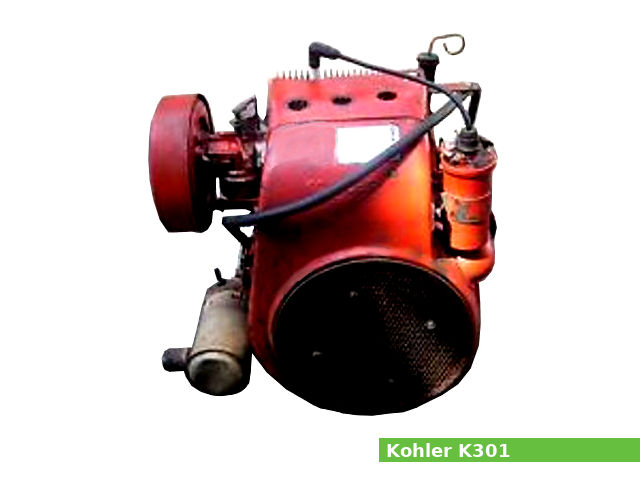

Kohler K301The Kohler K301 is a 476 cc, (29.0 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Kohler Co., for general-purpose applications.

Cylinder bore and piston stroke are 85.7 mm (3.37 in) and 82.6 mm (3.25 in), respectively. This engine produced 12.2 PS (9.0 kW; 12.0 HP) at 3,600 rpm of horsepower.

The Kohler K301 features:

  • L-head (side valve) design
  • Magneto ignition system, battery ignition system, breakerless ignition system ignition system
  • Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
  • Centrifugal governor
  • Splash type lubrication system
  • Forced air cooling system
  • Retractable or electric starter

General information

Engine Specifications
Engine modelK301
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement476 cm3, (29.05 cu·in)
Max. horsepower12.2 PS (9.0 kW; 12.0 HP) at 3,600 rpm
Max. torque
Cooling systemForced air
Air cleanerPaper air cleaner (oiled foam precleaner)
Lubricating systemSplash type
Ignition systemMagneto ignition system, battery ignition system, breakerless ignition system
Fuel systemCarburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Fuel consumption
Fuel tank capacity
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRetractable or electric starter
GovernorCentrifugal governor
Dimensions (L x W X H)
Dry weight53.5 kg (117.9 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:
Cylinder bore:85.7 mm (3.37 in)
Piston stroke:82.6 mm (3.25 in)
Cylinder internal diameter (standard):85.7123-85.7377 mm (3.3745-3.3755 in)
Piston skirt outer diameter (standard):85.4710-85.5472 mm (3.365-3.368 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):22.2428-22.2504 mm (0.8757-0.876 in)
Piston pin diameter:22.2300-22.2352 mm (0.8752-0.8754 in)
Ring end gap (Top):0.177-0.432 mm (0.007-0.017 in)
Ring end gap (Second):0.177-0.432 mm (0.007-0.017 in)
Crankshaft center distance:41.3 mm (1.625 in)
Cylinder head
Valve arrangement:L-head (side valve)
Valves:2
Valve head diameter (INTAKE):34.798-35.052 mm (1.37-1.38 in)
Valve head diameter (EXHAUST):28.448-28.702 mm (1.12-1.13 in)
Valve steam diameter (INTAKE):7.8867-7.8994 mm (0.3105-0.311 in)
Valve steam diameter (EXHAUST):7.8334-7.8511 mm (0.3084-0.3091 in)

Tightening torque

Tightening torque specs
Cylinder head bolts34-41 Nm (25-30 ft-lbs)
Flywheel68-81 Nm (50-60 ft-lbs)
Spark plug25-30 Nm (18-22 ft-lbs)
Connecting rod32.1 Nm (23.8 ft-lbs)
Governor bushing11.2-13.6 Nm (8.3-10.1 ft-lbs)
Fuel pump mounting screws4.2-5.1 Nm (3.1-3.8 ft-lbs)

Service Data

Engine
Maximum speed:3,600 rpm
Compression pressure
Normal:7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: K301: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
K301A: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Fuel system
Type:Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Ignition system
Type:Magneto ignition system, battery ignition system, breakerless ignition system
Spark plug:Champion RH10
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)

Applications

Manufacturer or BrandModels
Lawn tractors
Cub Cadet123, 124, 125, 126, 127, 128, 129, 1200, 1282
Gravely812
John Deere112, 120, 140, 212, 312, 1250
Wheel HorseCharger 12, C-120

References

1. Kohler K91, K141, K161, K181, K241, K301, K321, K341, service manual. Kohler Co. 1992.
