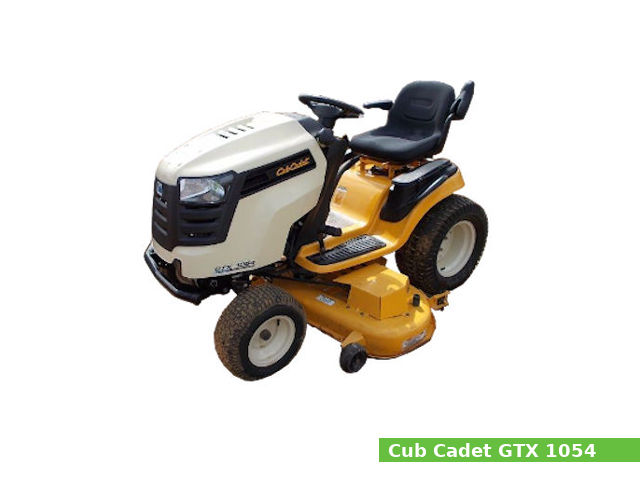

Cub Cadet GTX 1054 lawn tractor specs and service data

The Cub Cadet GTX 1054 is a lawn tractor model from the LTX 1000 series, manufactured from 2010 to 2014 by Cub Cadet (a part of MTD). It was available in a two-wheel drive (2WD) version.

The Cub Cadet GTX 1054 is equipped with a 725 cc (44.2 cu·in) V-twin gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GTX 1054 lawn tractor features:

The Kohler Courage SV740 gasoline engine which produces 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm of horsepower
Manual, sector and pinion steering
Dry disc brakes
Open operator station
Independent front PTO with electric clutch – 3600 rpm

General specifications

General Specifications
Model	Cub Cadet GTX 1054
Tractor type	Lawn tractor
Production years	2010-2014
Factory
Dimensions and weight
Length	1,720 mm (67.7 in)
Width	1,135 mm (44.7 in)
Height	1,085 mm (42.7 in)
Wheel base	1,240 mm (48.8 in)
Ground clearance	125 mm (4.9 in)
Weight	266 kg (586 lbs)
Fuel capacity
Fuel tank capacity	13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine
Engine model	Kohler Courage SV740
Engine type	Four-stroke, air-cooled, V-twin
Cylinders	2
Fuel type	Gasoline
Displacement	725 cm³, (44.2 cu·in)
Bore and stroke	83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio	9.0:1
Horsepower	27.3 PS (20.1 kW; 27.0 HP) at 3,375 rpm
Fuel system	Carburetor with fixed main jet
Fuel pump	Pulse
Governor	Mechanical
Air cleaner	Replaceable, paper element
Starter	Electric
Oil system
Lubrication system	Full pressurized
Oil filter	Full-flow type
Oil type	API SJ or higher
Recommended oil	SAE 10W-30
Oil capacity (with filter)	1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug	Champion RC12YC
Spark plug gap	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance	0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance	0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual, sector and pinion
Brakes	Dry disc
Transmission
Transmission manufacturer or model	–
Transmission type	Hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity	2.7 L (0.7 US. gal, 0.6 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 16×7.5-8
Rear tires	Lawn/turf: 23×10.5-12

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with electric clutch
Front PTO speed	3600 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	Flywheel alternator
Charging amps	15A
Battery	12V, CCA 325A

Attachments

Cub Cadet 54″ mid-mount mower deck with 3-blade and manual lift
Cutting width	1,370 mm (54 in)
Cutting Height	38-100 mm (1.5-4 in)
Cub Cadet 190-833: 46″ front-mount blade with manual lift and manual angle
Width	1,160 mm (46 in)
Weight	38 kg (82 lbs)
Cub Cadet 190-032: 42″ front-mount two-stage snowblower with manual lift
Width	1,060 mm (42 in)
Weight	126 kg (277 lbs)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
