Cub Cadet LTX 1046M

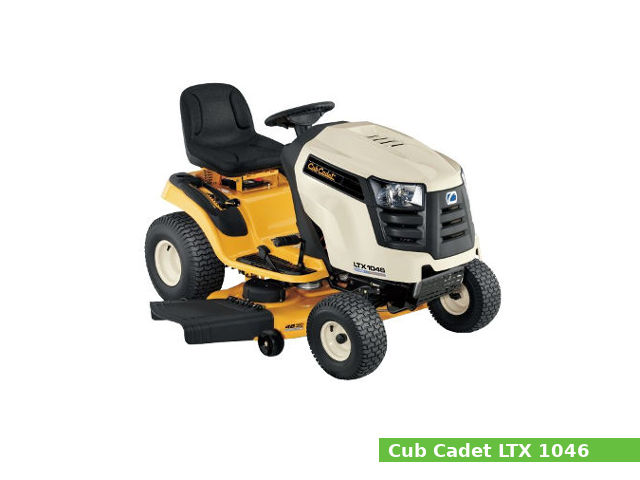

Cub Cadet LTX 1046MThe Cub Cadet LTX 1046M is a lawn tractor model from the LTX 1000 series, manufactured from 2009 to 2014 by Cub Cadet (a part of MTD). This lawn tractor was available in two-wheel drive (2WD) version.

The Cub Cadet LTX 1046M is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet LTX 1046M lawn tractor features:

  • The Kohler Courage SV715 gasoline engine which produces 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of horsepower.
  • Manual sector and pinion steering
  • Disc brakes
  • Open operator station
  • Independent front PTO with manual lever clutch

General specifications

General Specifications
Model Cub Cadet LTX 1046M
Tractor type Lawn tractor
Production years 2009-2014
Factory
Dimensions and weight
Length 1,750 mm (68.9 in)
Width
Height
Wheel base 1,200 mm (47.2 in)
Weight 232 kg (510 lbs)
Fuel capacity
Fuel tank capacity 12.5 liters (3.3 US gal.; 2.7 Imp. gal)

Engine

Engine
Engine model Kohler SV715
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 725 cm3, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm
Starter Electric
Oil system
Lubrication system: Full pressurized
Oil type: API SJ or higher
Recommended oil: SAE 10W-30
Oil capacity (with filter): 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug: Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance: 0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance: 0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual sector and pinion
Brakes Disc
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph)
Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity 1.9 L (0.5 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 15×6
Rear tires Lawn/turf: 20×10

PTO (Power take-off shaft)

PTO
Front PTO type Independent with manual lever clutch
Front PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Flywheel alternator
Charging amps 15A
Battery 12V, CCA 190A

Attachments

Cub Cadet 46″ mid-mount mower deck with manual lift
Cutting width 1,160 mm (46 in)
Cut height 30-100 mm (1.5-4.0 in)
Cut positions 12
