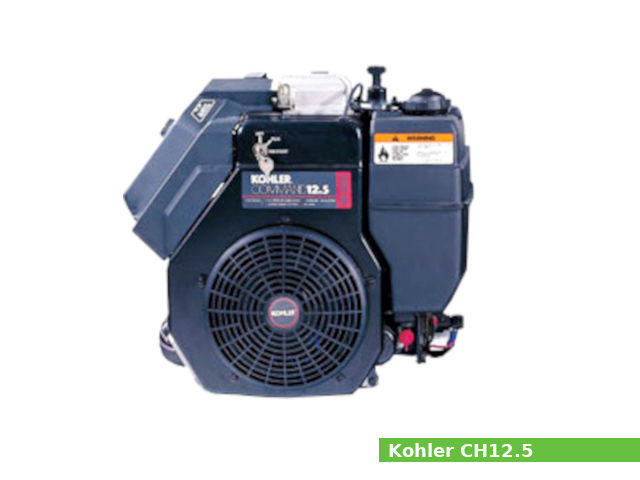

Kohler CH12.5

Kohler CH12.5The Kohler CH12.5/CH12.5S is a 398 cc (24.3 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine from the Command PRO series with a horizontal shaft, manufactured by Kohler Co for general-purpose applications.

The cylinder bore and the piston stroke are 87.0 mm (3.43 in) and 67.0 mm (2.64 in), respectively. Compression ratio rating is 8.5:1.

The Kohler CH12.5 engine produced 12.7 PS (9.33 KW; 12.5 HP) at 3,600 rpm of horsepower and 27.8 Nm (2.8 kg·m; 20.5 ft·lb) at 2,500 rpm of torque..

The Kohler CH12.5 features:

  • OHV design
  • Hydraulic valve lifters
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Dependable electronic magneto ignition system
  • Carburetor with fixed main jet (Nikki or Keihin)
  • Mechanical centrifugal governor
  • Full pressure lubrication system
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine modelCommand PRO CH12.5/CH12.5S
Engine type4-stroke, OHV, single-cylinder
Displacement398 cm 3 (24.3 cu-in)
Max. horsepower12.7 PS (9.33 KW; 12.5 HP) at 3,600 rpm
Max. torque27.8 Nm (2.8 kg·m; 20.5 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerReplaceable, paper element
Lubricating systemFull pressure
Ignition systemDependable electronic magneto
Fuel systemCarburetor with fixed main jet (Nikki or Keihin)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)340 x 502 x 449 mm (13.41 x 19.8 x 17.7 in)
Dry weight39.5 kg (87.1 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.5:1
Cylinder bore:87.0 mm (3.43 in)
Piston stroke:67.0 mm (2.64 in)
Cylinder internal diameter (standard):87.000-87.025 mm (3.4252-3.4262 in)
Number of piston rings (compression / oil):2/1
Piston pin diameter:18.995-19.000 mm (0.7478-0.748 in)
Thrust face outer diameter (standard):86.941-86.959 mm (3.4229-3.4236 in)
Ring-to-groove side clearance (Top):0.040-0.105 mm (0.0016-0.0041 in)
Ring-to-groove side clearance (Second):0.040-0.072 mm (0.0016-0.0028 in)
Ring-to-groove side clearance (Oil):0.551-0.675 mm (0.0217-0.0266 in)
Ring end gap (Top):0.300-0.500 mm (0.0120-0.0197 in)
Ring end gap (Second):0.300-0.500 mm (0.0120-0.0197 in)
Number of main bearings:2
Crankshaft main bearing journal diameter: Flywheel end: 44.913-44.935 mm (1.7682-1.7691 in)
Oil pan end: 41.915-41.935 mm (1.6502-1.6510 in)
Crankpin journal diameter:38.958-30.970 mm (1.5338-1.2193 in)
Balance shaft bearing surface OD:19.962-19.975 mm (0.7859-0.7864 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2
Valve head diameter (INTAKE):35.370-35.630 mm (1.3925-1.4028 in)
Valve head diameter (EXHAUST):31.370-31.630 mm (1.235-1.2453 in)
Valve seat angle (INTAKE):89°
Valve seat angle (EXHAUST):89°
Valve seat angle (INTAKE):45°
Valve seat angle (EXHAUST):45°
Valve steam diameter (INTAKE):6.982-7.000 mm (0.2749-0.2756 in)
Valve steam diameter (EXHAUST):6.970-6.988 mm (0.2744-0.2751 in)
Valve lift minimal (INTAKE):8.96 mm (0.353 in)
Valve lift minimal (EXHAUST):9.14 mm (0.360 in)
Camshaft journal diameter :19.962-19.975 mm (0.7859-0.7864 in)

Tightening torque specs

Tightening torque specs
Connecting rod 8 mm straight shank: 22.7 Nm (2.32 kg·m; 16.75 ft·lb)
8 mm step-down: 14.7 Nm (1.5 kg·m; 10.85 ft·lb)
6 mm straight shank: 11.3 Nm (1.15 kg·m; 8.34 ft·lb)
Cylinder head (torque in 2 increments) Step 1: 20.0 Nm (2.0 kg·m; 15.0 ft·lb)
Step 2: 40.0 Nm (4.0 kg·m; 30.0 ft·lb)
Fan9.9 Nm (1.0 kg·m; 7.3 ft·lb)
Flywheel66.4 Nm (6.77 kg·m; 49.0 ft·lb)
Muffler retaining nuts24.4 Nm (2.5 kg·m; 18.0 ft·lb)
Spark plug38.0-43.4 Nm (3.9-4.4 kgf·m; 28.0-32.0 lb·ft)
Oil drain plug7.3-9.0 Nm (0.7-0.9 kgf·m; 5.4-6.6 lb·ft)

Service Data

Engine
Maximum speed:3600±50 rpm
Idle speed:1200±75 rpm
Compression pressure
Standard:1.1 MPa (160 psi)
Compression differential limit between cylinders:15% and less
Oil system
Lubrication system:Full pressure
Oil type:API SG, SH, SJ, or higher
Recommended oil:SAE 10W-30
Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts)
Fuel system
Type:Carburetor with fixed main jet (Nikki or Keihin)
Fuel pump:Pulse type
Fuel filter:In-line
Ignition system
Type:Dependable electronic magneto
Spark plug:Champion RC12YC or Platinum 3071
Spark plug gap1.02 mm (0.040 in)
Ignition coil air gap0.200-0.300 mm (0.0079-0.0118 in)

Applications

Manufacturer or BrandModels
Lawn tractors
Cub CadetAGS 2130, HDS 2135

References

1. Kohler Command CH11-16 horizontal crankshaft service manual. Kohler Co. 1990.
