Honda HF2213

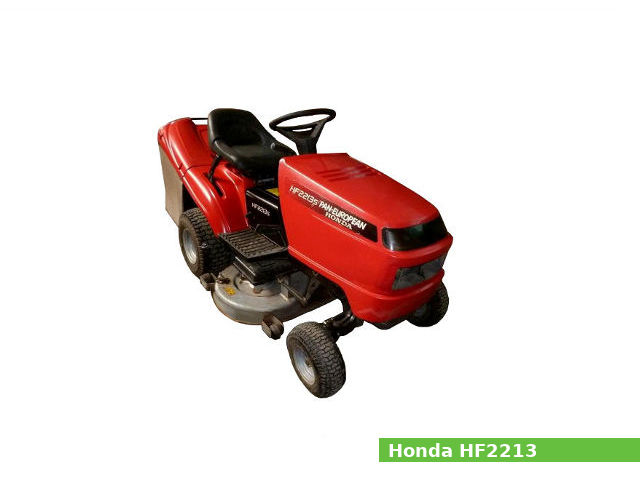

Honda HF2213The Honda HF2213 is a lawn tractor with Honda GXV390 (389 cc, 23.7 cu-in) vertical general-purpose engine.

The Honda GXV390 is an air-cooled single-cylinder four-stroke gasoline engine with a vertical PTO shaft. This engine has an 88.0 mm (3.46 in) of the cylinder bore and 64.0 mm (2.5 in) of the piston stroke, and the compression ratio rating of 7.7:1.

The Honda GXV390 engine produced 13.0 HP (9.7 kW) at 3,600 rpm of maximum power and 28.0 Nm (2.8 kg·m, 20.3 ft·lb) at 2,500 rpm of peak torque.

General information

General Specifications
Model Honda HF2213
Length 1,780 mm (70.1 in)
Width 950 mm (37.4 in)
Height 1,070 mm (42.1 in)
Weight 220 kg (485)
Fuel tank capacity 7.0 l
Engine
Engine model Honda GXV390
Displacement 389 cm3 (23.7 cu-in)
Bore x stroke 88.0 X 64.0 mm (3.46 x 2.5 in)
Max. horsepower 13.0 HP (9.7 kW) at 3600 rpm
Max. torque 28.0 Nm (2.8 kg·m, 20.3 ft·lb) at 2,500 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Forced-air
Ignition system Transistorized magneto ignition
Lubricating system Pressure and splash
Starting system Electric starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Transmission
Groung speeds Forward: 7.6 km/h (4.7 mph)
Reverse: 3.7 km/h (2.3 mph)
Wheels and tires
Front tires size 13×5.0-6
Front tires pressure 1.5 bar (150 kPa)
Rear tires size 18×8.5-8
Rear tires pressure 1.2 bar (120 kPa)

Maintenance data

Engine
Maximum speed 3700 ± 150 rpm
Idle speed 1750 ± 150 rpm
Cylinder compression 5.0-8.5 kg/cm2 (71-151 psi) at 600 rpm
Valve clearance
Intake valve 0.10 ± 0.02 (0.004 ± 0.001)
Exhaust valve 0.15 ± 0.02 (0.006 ± 0.001)
Oil system
Oil type Honda 4-stroke or an equivalent (SF or SG)
Recommended oil SAE 10W-30
Oil capacity 1.1 L (1.2 US gal, 1.0 lmp qt)
Ignition system
Ignition timing 20 ° B.T.D.C (Fixed)
Spark plug NGK: BPR5ES
NIPPONDENSO: W16EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance 0.7-0.9 Ω
Secondary ignition coil resistance 6.3-7.7 kΩ
Ignition coil air gap 0.4 ± 0.2 (0.016 ± 0.008)
Starter motor
Brush length 7.2 mm (0.28 in) limit: 3.5 mm (0.14 in)
Mica depth 1.0 mm (0.04 in) limit: 0.2 mm (0.01 in)
