Honda H6522 garden tractor specs and service data

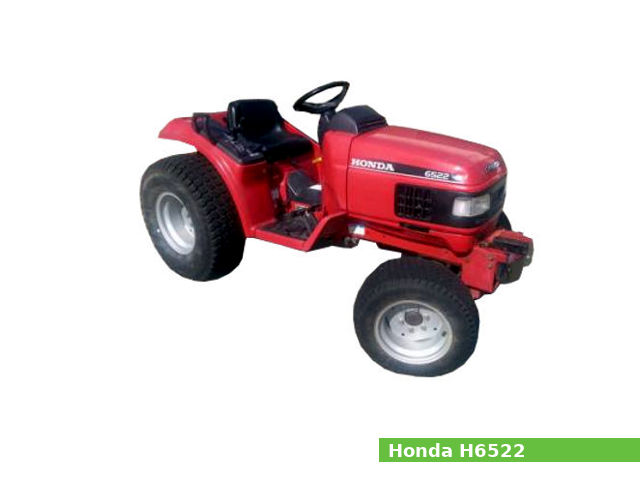

The Honda H6522 is a garden tractor model manufactured from 1991 to 1996 by Honda. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.

The Honda H6522 is equipped with a 1.2 L (75.4 cu·in) three-cylinder diesel engine with 81.0 mm (3.19 in) of the cylinder bore and 79.0 mm (3.11 in) of the piston stroke, and a gear type transmission with 9 forward and 3 reverse gears.

The Honda H6522 garden tractor features:

The Honda GD1250 diesel engine which produces 22.3 PS (16.4 kW; 22.0 HP) at 3,000 rpm of horsepower.
Power assist steering
Mechanical wet disc brakes
Two-post ROPS
The rear hitch Category I with 340 kg (750 lbs) of maximum lift capacity
Independent front PTO with 2,000 rpm
Independent rear PTO with 540 rpm

General specifications

General Specifications
Model	Honda H6522
Tractor type	Garden tractor
Production years	1991-1996
Factory	–
Dimensions and weight
Length	2,590 mm (102 in)
Width	1,240 mm (48.8 in)
Height	2WD with R: 1,870 mm (73.6 in) 4WD with R: 2,110 mm (83.1 in)
Wheel base	1,590 mm (62.6 in)
Ground clearance	250 mm (9.8 in)
Weight (shipping)	2WD: 746 kg (1,645 lbs) 4WD: 777 kg (1,713 lbs)
Fuel capacity
Fuel tank capacity	17.0 liters (4.5 US gal.; 3.7 Imp. gal)

Engine

Engine
Engine model	Honda GD1250
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	3
Fuel type	Diesel
Displacement	1.2 L, 1,235 cm², (75.4 cu·in)
Bore and stroke	81.0 mm X 79.0 mm (3.19 in X 3.11 in)
Compression ratio	18.0:1
Horsepower	22.3 PS (16.4 kW; 22 HP) at 3,000 rpm
Starter	Electric
Cooling system	Liquid-cooled
Coolant capacity:	4.4 L (4.6 US. qt, 3.9 Imp. qt.)
Air cleaner	Dual stage dry
Fuel system	Direct injection
Compression pressure
Cylinder compression:	27.0 kg/cm² (384 psi) at 200 rpm
Valve clearance
Intake valve clearance:	0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve clearance:	0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:	Forced spray
Oil type:	Diesel oil (API CC or CD)
Recommended oil:	SAE 10W-30
Oil capacity:	3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Oil pressure:	4.0 kg/cm² (57 psi) at 800 rpm

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD or 4×4 MFWD 4WD
Steering type	Power assist
Brakes	Mechanical wet disc
Transmission
Transmission manufacturer or model	–
Transmission type	Gear type
Gears	9 forward and 3 reverse
Speed	Forward: 15.4 kmh (9.6 mph) Reverse: 5.7 kmh (3.5 mph)
Transmission oil capacity	13.0 L (3.4 US. gal, 2.9 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 23×8.50-12 Ag: 6-12
Rear tires	Lawn/turf: 33×12.50-15 Ag: 9.5-16

Rear Hitch

Three-Point Hitch
Category	I
Control type	–
Lift capacity (at ends)	340 kg (750 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type	Independent
Middle PTO speed	2,000 rpm
Rear PTO type	Independent
Rear PTO speed	540 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	–
Charging amps	–
Battery	12V, 47Ah

Hydraulic system

Hydraulic system
Hydraulic type	Gear pump
Hydraulic capacity	12.9 L (3.4 US. gal, 2.8 Imp. gal.)
Pressure	2275 psi (156.9 bar)
Pump flow	3.96 gpm (15 lpm)

Attachments

Honda MM60: 60″ mid-mount mower deck with 3-blade
Cutting width	1,520 mm (60 in)
Weighth	140 kg (309 lbs)
Honda DB6560: 60″ front-mount blade with hydraulic-lift and hydraulic-angle
Cutting width	1,520 mm (60 in)
Weighth	93 kg (207 lbs)
Honda SB6557: 57″ front-mount two-stage snow blower
Cleaning width	1,440 mm (57 in)
Weight	93 kg (207 lb)
Honda FL6555 loader
Height (to pin)	1,890 mm (74.6 in)
Loader weight	282 kg (623 lbs)
Clearance, dumped bucket	1,510 mm (59.7 in)
Dump reach	690 mm (27.2 in)
Dump angle	36°
Clearance, level bucket	1,570 mm (62 in)
Reach at ground	1,180 mm (46.5 in)
Breakout force (lift)	430 kg (950 lbs)
Lift to full height (at pin)	249 kg (550 lbs)
Rollback angle	21°
Honda BH6575 backhoe
Digging depth	2,330 mm (91.8 in)
Weight	408 kg (901 lbs)
2-Foot flat digging depth	2,280 mm (90.0 in)
Reach from pivot	2,840 mm (112.2 in)
Loading height	1,720 mm (68 in)
Bucket Rotation	175
Swing Arc	180
Bucket force	1,180 kg (2,600 lbs)
Dipperstick force	1,030 kg (2,275 lbs)
