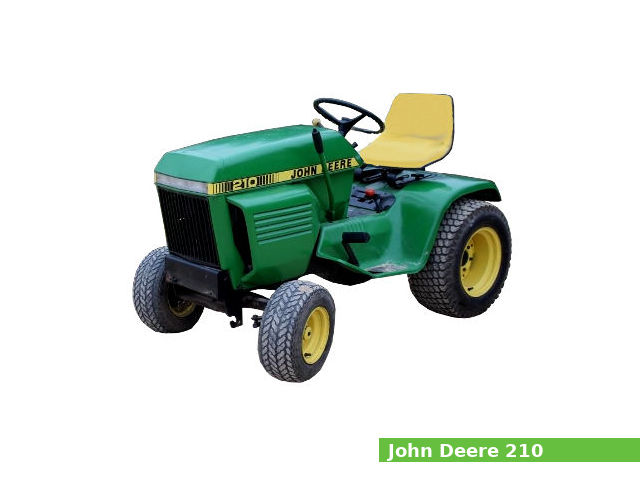

John Deere 210

John Deere 210The John Deere 210 is a garden tractor model from the 200 series, manufactured from 1975 to 1987 by John Deere in Horicon, Wisconsin, USA. It was available in a two-wheel drive (2WD) version.

The John Deere 210 is equipped with a 391 cc (23.9 cu·in) single-cylinder gasoline engine with 82,6 mm (3.23 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and a gear type transmission with 4 forward and 1 reverse gear.

The John Deere 210 garden tractor features:

  • The Kohler K241QS gasoline engine which produces 10.2 PS (7.5 kW; 10.0 HP) at 3,500 rpm of horsepower
  • Manual steering
  • Band brakes
  • Open operator station

General specifications

General Specifications
Model John Deere 210
Tractor type Garden tractor
Production years 1975-1987
Factory Horicon, Wisconsin, USA
Dimensions and weight
Length 1,710 mm (67.3 in)
Width 1,050 mm (41.3 in)
Height 1,060 mm (41.7 in)
Wheel base 1,160 mm (45.7 in)
Weight 299 kg (659 lbs)
Fuel capacity
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K241
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 391 cm3, (23.86 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Max. horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Cooling system Forced air
Lubricating system Splash type
Ignition system Battery ignition system
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Type: Battery ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Band
Transmission
Transmission manufacturer or model Peerless 2300
Transmission type Gear type
Gears 4 forward and 1 reverse
Speed Forward: 11.4 kmh (7.1 mph)
Reverse: 6.0 kmh (3.7 mph)
Transmission oil capacity 1.7 L (0.4 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 15A
Battery 12V

Serial numbers

John Deere 210 serial numbers
1975 30001
1976 55001
1977 70001
1978 80001
1979 95001
1980 120001
1981 155001
1982 190001
1983 222001
1984 285001
1985 315001
1986 360001
1987 420001
End 475000

Attachments

John Deere 39: 38″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width 960 mm (38 in)
Overall width 1250 mm (49.25 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 38 kg (85 lb)
John Deere 47 H047: 46″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width 1,160 mm (46 in)
Overall width 1,440 mm (57 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 51 kg (113 lb)
John Deere 46 M00673X: 46″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width 1,160 mm (46 in)
Overall width 1,440 mm (57 in)
Cut height 30-80 mm (1.5-3.5 in)
Weight 51 kg (113 lb)
John Deere 43: 42″ front-mount blade with manual-lift and manual-angle
Width 1,060 mm (42 in)
Height 450 mm (18 in)
Lift 20 mm (8 in)
Angling 30°
Weight 62 kg (138 lb)
John Deere 37A: 38″ front-mount single-stage snowblower with manual-lift
Width 960 mm (38 in)
Weight 81 kg (180 lb)
