John Deere 245 garden tractor specs and service data

The John Deere 245 is a garden and lawn tractor model from the Late 200 series, manufactured from 1993 to 1994 by John Deere in Horicon, Wisconsin, USA. It was available in a two-wheel drive (2WD) version.

The John Deere 245 is equipped with a 423 cc (25.8 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD 245 garden tractor features:

The Kawasaki FC420V gasoline engine which produces 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of horsepower
Manual steering
Expanding mechanical shoe brakes
Open operator station

General specifications

General Specifications
Model	John Deere 245
Tractor type	Garden tractor
Production years	1993-1994
Factory	Horicon, Wisconsin, USA
Dimensions and weight
Length	1,820 mm (71.7 in)
Width (max)	Tractor on: 1,100 mm (43.3 in)
Height (steering wheel)	1,110 mm (43.7 in)
Wheel base	1,220 mm (48 in)
Weight	–
Fuel capacity
Fuel tank capacity	11.4 liters (3 US gal.; 2.5 Imp. gal)

Engine

Engine
Engine model	Kawasaki FC420V
Engine type	Four-stroke, air-cooled
Cylinders	1
Fuel type	Gasoline
Displacement	0.4 L, 423 cm³, (25.8 cu·in)
Bore and stroke	89.0 mm X 68.0 mm (3.5 in X 2.68 in)
Compression ratio	8.4:1
Horsepower	14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Starter	Electric
Air filter	Dry, replaceable with foam pre-cleaner
Oil system
Lubrication system:	Full pressurized
Oil type:	4-stroke or an equivalent (SF, SE, SD)
Recommended oil:	SAE 10W-30, 10W-40
Oil capacity (with filter):	1.5 L (1.6 US.qts, 1.32 Imp. qts)
Ignition system
Spark plug:	NGK BPR5ES or Champion RN11YC
Spark plug gap:	0.7-0.8 mm (0.0276-0.0315 in)
Valve clearance
Intake valve clearance:	0.15 mm (0.006 in)
Exhaust valve clearance:	0.15 mm (0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	Expanding mechanical shoe
Transmission
Transmission manufacturer or model	Sundstrand BDU-21
Transmission type	Belt-driven hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 11.3 kmh (7.0 mph) Reverse: 4.7 kmh (2.9 mph)
Transmission oil capacity	2.5 L (0.7 US. gal, 0.5 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 16×6.5-8
Rear tires	Lawn/turf: 23×10.50-12

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator
Charging amps	13A
Battery	12V, CCA: 342A, BCI Group U1

Serial numbers

John Deere 245 serial numbers
1993	150001
1994	160001

Attachments

John Deere 38″ mid-mount mower deck with 2-blade and manual lift
Cutting width	960 mm (38 in)
Overall width	1,260 mm (49.7 in)
Cut height	20-100 mm (1-4 in)
Weight	40 kg (90 lbs)
John Deere 46″ mid-mount mower deck with 3-blade and manual lift
Cutting width	1,160 mm (46 in)
Overall width	1,440 mm (57 in)
Cut height	20-100 mm (1-4 in)
Weight	56 kg (125 lbs)
John Deere: 46″ front-mount blade with manual-lift and manual-angle
Width	1,160 mm (46 in)
Height	430 mm (17 in)
Lift	120 mm (5 in)
Cut height	70 mm (3 in)
Weight	49 kg (110 lbs)
John Deere 3250M: 42″ front-mount, single-stage snowblower with manual-lift
Width	1,060 mm (42 in)
Total width	1,090 mm (43 in)
Clear height	430 mm (17 in)
Weight	79 kg (175 lbs)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

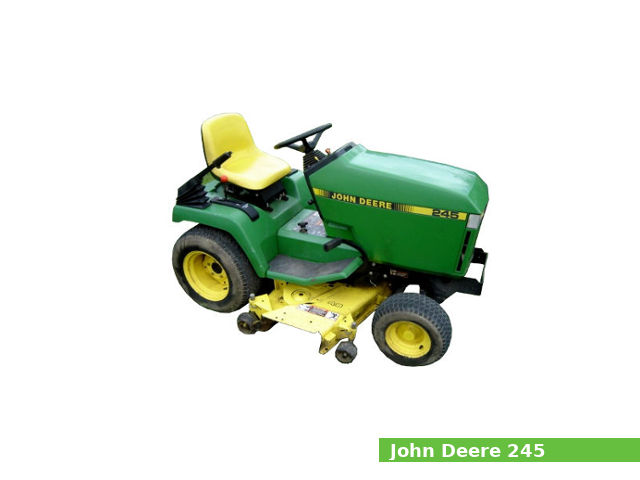

John Deere 245
