Kawasaki FC420V

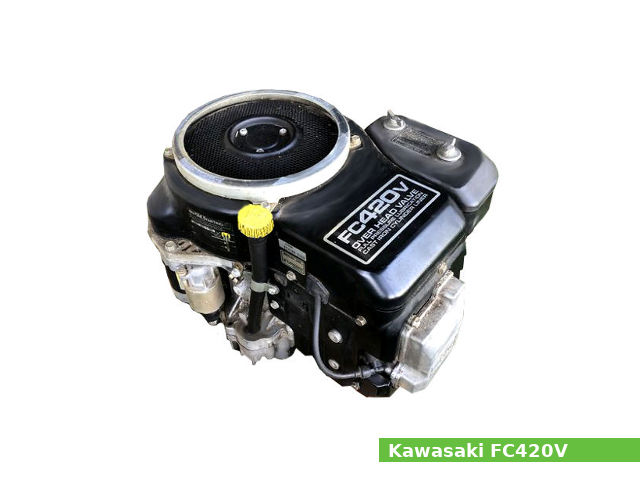

Kawasaki FC420VThe Kawasaki FC420V is a 423 cc, (25.8 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a vertical shaft, manufactured by Kawasaki Heavy Industries LTd. for general-purpose applications.

The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 68.0 mm (2.68 in). The compression ratio rating is 8.4:1.

The Kawasaki FC420V engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of maximum output power and 30.6 N·m (3.1 kg·m, 22.6 ft·lb) at 2,400 rpm of peak torque.

The Kawasaki FC420V features:

  • OHV design
  • Cast-iron cylinder liner
  • Flywheel magneto transistor type ignition system
  • Float type carburetor with fixed main jet
  • Diaphragm type pulse pump
  • Mechanical flyweight governor
  • Pressurized lubrication system
  • Forced air cooling system
  • Recoil or electric starter

General information

Engine Specifications
Engine model FC420V
Engine type 4-stroke, OHV, single-cylinder
Displacement 423 cm3, (25.8 cu·in)
Max. horsepower 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Max. torque 30.6 N·m (3.1 kg·m, 22.6 ft·lb) at 2,400 rpm
Cooling system Forced air
Air cleaner Semi-dry cyclone type with dual element
Lubricating system Pressurized lubrication
Ignition system Flywheel magneto transistor type
Fuel system Float type carburetor with fixed main jet
Fuel consumption 255 g/HPh
Fuel tank capacity 5.0 liters (5.28 US.qts, 4.4 Imp. qts)
Fuel used Unleaded gasoline (octane number 86 or higher)
Starting system Recoil or electric starter
Governor Mechanical flyweight
PTO shaft rotation Counterclockwise)
Dimensions (L x W X H) 448 x 423 x 436 mm (17.6 x 16.7 x 17.2 in)
Dry weight 35.2 kg (77.6 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: 8.4:1
Cylinder bore: 89.0 mm (3.5 in)
Piston stroke: 68.0 mm (2.68 in)
Cylinder internal diameter (standard): 89.076 mm (3.5069 in)
Number of piston rings (compression / oil): 2/1
Connecting rod big end diameter (standard): 41.068 mm (1.6168 in)
Connecting rod small end diameter (standard): 22.059 mm (0.8685 in)
Piston pin diameter: 21.977 mm (0.8652 in)
Side clearance (Top): 0.170 mm (0.0067 in)
Side clearance (Second): 0.150 mm (0.0059 in)
Side clearance (Oil): 0.200 mm (0.0079 in)
Ring end gap (Top): 0.900 mm (0.0354 in)
Ring end gap (Second): 0.900 mm (0.0354 in)
Ring width (Top): 1.940 mm (0.0764 in)
Ring width (Second): 1.940 mm (0.0764 in)
Crankshaft main journal diameter: PTO side: 34.919 mm (1.3748 in)
Magneto side: 34.945 mm (1.3758 in)
Crankpin journal diameter: 40.928 mm (1.6113 in)
Crankshaft center distance: 34 mm (1.34 in)
Cylinder head
Valve arrangement: OHV
Valves: 2
Valve steam diameter (INTAKE): 6.930 mm (0.2728 in)
Valve steam diameter (EXHAUST): 6.915 mm (0.2722 in)
Valve spring free length (INTAKE): 37.5 mm (1.4764 in)
Valve spring free length (EXHAUST): 37.5 mm (1.4764 in)
Camshaft lobe height (INTAKE): 36.750 mm (1.4468 in)
Camshaft lobe height (EXHAUST): 36.750 mm (1.4468 in)
Camshaft journal diameter: Gear side: 20.912 mm (0.8233 in)
Cam side: 19.912 mm (0.7839 in)

Tightening torque

Tightening torque specs
Cylinder head 52 Nm; 5.2 kg·m; 38.3 ft·lb
Connecting rod bolt 20 Nm; 2.0 kg·m; 14.7 ft·lb
Flywheel 137 Nm; 14 kg·m; 101 ft·lb
Crankcase cover bolt 26 Nm; 2.6 kg·m; 19.2 ft·lb
Oil drain plug 23 Nm; 2.3 kg·m; 16.7 ft·lb
Valve clearance adjust nut 20 Nm; 2.0 kg·m; 14.7 ft·lb

Service Data

Engine
Maximum speed: 3,500±100 rpm
Idle speed: 1,500±150 rpm
Cylinder compression: 5.0 kg/cm2 (70 psi)
Valve clearance
Intake valve clearance: 0.15 mm (0.0059 in)
Exhaust valve clearance: 0.15 mm (0.0059 in)
Oil system
Lubrication system: Pressurized lubrication
Oil type: 4-stroke or an equivalent (SF, SE, SD)
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 1.3 L (1.37 US. qt, 1.14 Imp. qt.)
Fuel system
Type: Float type carburetor with fixed main jet
Fuel Pump: Diaphragm type pulse pump
Ignition system
Type: Flywheel magneto transistor type
Spark plug: NGK BPR5ES, Champion RN11YC
Spark plug gap: 0.7-0.8 mm (0.0276-0.0315 in)
Ignition coil air gap 0.3 mm (0.0118 in)
Spark plug torque 15 Nm (1.53 kg·m; 11.07 ft·lb)

Applications

Manufacturer or Brand Models
Lawn tractors
John Deere 170, 175, 240, 245, GT242, LX172, LX176
Kubota T1460, T1560
ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.
