Kohler K341 (16.0 HP) engine specs and service data

The Kohler K341 is a 588 cc, (35.9 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Kohler, for general-purpose applications.

Cylinder bore and piston stroke are 95.3 mm (3.75 in) and 82.6 mm (3.25 in), respectively. The Kohler K341 engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm of maximum output power.

The Kohler K341 features:

L-head (side valve) design
Magneto ignition system, battery ignition system, breakerless ignition system ignition system*
Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)*
Centrifugal governor
Splash type lubrication system
Forced air cooling system
Retractable or electric starter

* – depending on the engine version

General information

Engine Specifications
Engine model	K341
Engine type	4-stroke, L-head (side valve), single-cylinder
Displacement	588 cm³, (35.88 cu·in)
Max. horsepower	16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm
Max. torque	–
Cooling system	Forced air
Air cleaner	Paper air cleaner (oiled foam pre-cleaner was available as an option)
Lubricating system	Splash type
Ignition system	Magneto ignition system, battery ignition system, breakerless ignition system
Fuel system	Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Fuel consumption	–
Fuel tank capacity	–
Fuel used	Unleaded gasoline (octane number 86 or higher)
Starting system	Retractable or electric starter
Governor	Centrifugal governor
Dimensions (L x W X H)	–
Dry weight	55.4 kg (122.1 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:	–
Cylinder bore:	95.3 mm (3.75 in)
Piston stroke:	82.6 mm (3.25 in)
Cylinder internal diameter (standard):	95.2627-95.2373 mm (3.7505-3.7495 in)
Piston skirt outer diameter (standard):	95.0595-95.0214 mm (3.7425-3.741 in)
Number of piston rings (compression / oil):	2/1
Connecting rod small end diameter (standard):	22.2428-22.2504 mm (0.8757-0.876 in)
Piston pin diameter:	22.2300-22.2352 mm (0.8752-0.8754 in)
Ring end gap (Top):	0.177-0.432 mm (0.007-0.017 in)
Ring end gap (Second):	0.177-0.432 mm (0.007-0.017 in)
Crankshaft center distance:	41.3 mm (1.625 in)
Cylinder head
Valve arrangement:	L-head (side valve)
Valves:	2
Valve head diameter (INTAKE):	34.798-35.052 mm (1.37-1.38 in)
Valve head diameter (EXHAUST):	34.798-35.052 mm (1.37-1.38 in)
Valve steam diameter (INTAKE):	7.8867-7.8994 mm (0.3105-0.311 in)
Valve steam diameter (EXHAUST):	7.8334-7.8511 mm (0.3084-0.3091 in)

Tightening torque

Tightening torque specs
Cylinder head bolts	34-41 Nm (25-30 ft-lbs)
Flywheel	68-81 Nm (50-60 ft-lbs)
Spark plug	25-30 Nm (18-22 ft-lbs)
Connecting rod	32.1 Nm (23.8 ft-lbs)
Governor bushing	11.2-13.6 Nm (8.3-10.1 ft-lbs)
Fuel pump mounting screws	4.2-5.1 Nm (3.1-3.8 ft-lbs)

Service Data

Engine
Maximum speed:	3,600 rpm
Valve clearance
Intake valve clearance:	0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:	0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:	Splash type
Oil type:	SF or SG
Recommended oil:	Summer: SAE 30W Winter: SAE 5W-20, 5W-30
Oil capacity:	K341: 1.9 L (2.01 US. qt, 1.67 Imp. qt.) K341A: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Fuel system
Type:	Carburetor (Kohler or Walbro – fixed main jet or adjustable main jet)
Ignition system
Type:	Magneto ignition system, battery ignition system, breakerless ignition system
Spark plug:	Champion RH10
Spark plug gap:	0.65 mm (0.0256 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)

Applications

Manufacturer or Brand	Models
Lawn tractors
Allis Chalmers	916
Bolens	QS-16
Cub Cadet	169, 1650
John Deere	216, 300
Snapper	1650
Wheel Horse	416-8, C-160

References

1. Kohler K91, K141, K161, K181, K241, K301, K321, K341, service manual. Kohler Co. 1992.

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

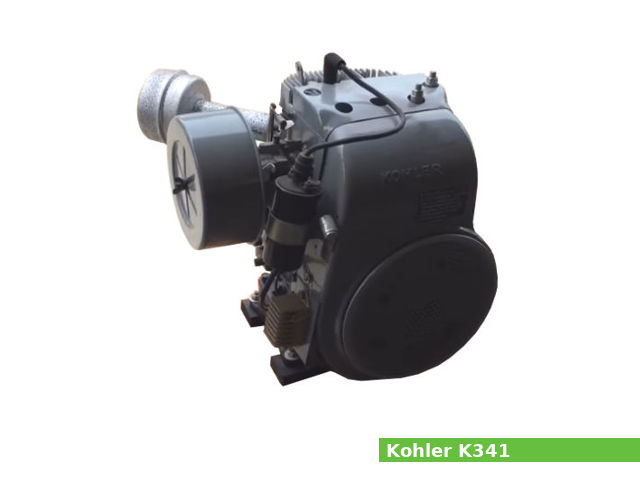

Kohler K341
