Kubota BX2670

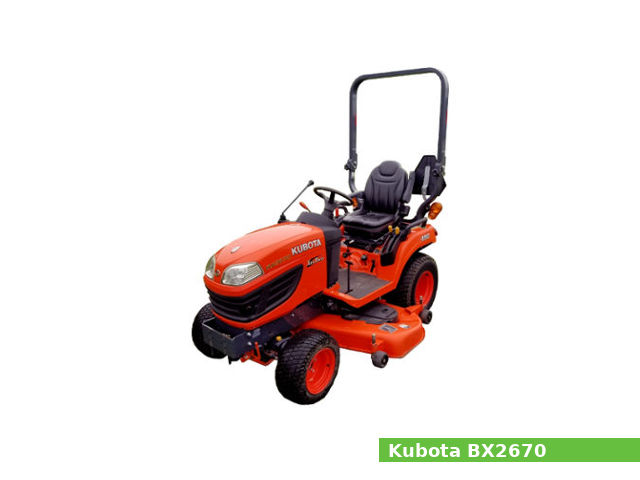

Kubota BX2670The Kubota BX2670 is a compact utility tractor model from the BX series, manufactured from 2013 to 2016 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota BX2670 is equipped with a 1.0 L (61.1 cu·in) three-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota BX2670 compact utility tractor features:

  • The Kubota D1005 diesel engine which produces 25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm of horsepower.
  • Hydrostatic power steering
  • Wet disc type brakes
  • Two-post foldable ROPS
  • Category I rear hitch with 550 kg (1213 lbs) of maximum lift capacity
  • Independent middle PTO with 2,500 rpm
  • Independent rear PTO with 540 rpm

General specifications

General Specifications
ModelKubota BX2670
Tractor typeCompact utility tractor
Production years2013-2016
Factory
Dimensions and weight
Length2,420 mm (95.3 in)
Width1,130 mm (44.5 in)
Height2,210 mm (87 in)
Wheel base1,390 mm (54.7 in)
Weight665 kg (1,466 lbs)
Fuel capacity
Fuel tank capacity25.0 liters (6.6 US gal.; 5.5 Imp. gal)

Engine

Engine Specifications
Engine modelKubota D1005
Engine type4-stroke, SOHC, three-cylinders
Displacement1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke76.0 mm x 73.6 mm (3.0 in x 2.9 in)
Max. horsepower25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm
Cooling systemLiquid-cooled
Coolant capacity:2.9 L (3.1 US. qt, 2.6 Imp. qt.)
Fuel usedDiesel fuel
Starting systemElectric starting with 12V starter
Starting support deviceGlow plug in combustion chamber
GovernorAll speed mechanical governor
Charging systemAlternator 12V
PTO shaft rotationCounterclockwise
Valve clearance
Intake valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:Forced lubrication by trochoid pump
Oil type:CF or higher
Recommended oil:SAE 10W-30, 10W-40
Oil capacity:3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter:Full flow paper filter (Cartridge type)
Oil pressure indicating:Electrical type switch
Oil and oil filter change interval:Every 200 hours
Fuel system
Fuel injection pump:Bosch MD type mini fuel injection pump
Injection nozzle:Mini Nozzle (DNOPD)
Firing order:1-2-3
Injection pressure:13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc type
Transmission
Transmission manufacturer or modelHST
Transmission typeHydrostatic
GearsInfinite (2-range) forward and reverse
Speed Forward: 13.0 kmh (8.1 mph)
Reverse: 10.5 kmh (6.5 mph)
Transmission oil capacity11.7 L (3.1 US. gal, 2.6 Imp. gal.)

Tires

Tires
Front tiresAg/Lawn/turf: 18×8.5-10
Rear tiresAg/Lawn/turf: 26×12-12

Rear Hitch

Three-Point Hitch
CategoryI
Control typeQuarter-inching control
Lift capacity (at ends)550 kg (1,210 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO typeIndependent
Middle PTO speed2,500 rpm
Rear PTO typeIndependent
Rear PTO speed540 rpm

Electrical system

Electrical system
GroundNegative
Charging systemAlternator
Charging amps40A
Battery12V, CCA: 535A

Hydraulic system

Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity11.7 L (3.1 US. gal, 2.6 Imp. gal.)
Pump flow6.2 gpm (23.5 lpm)
