Kubota D905

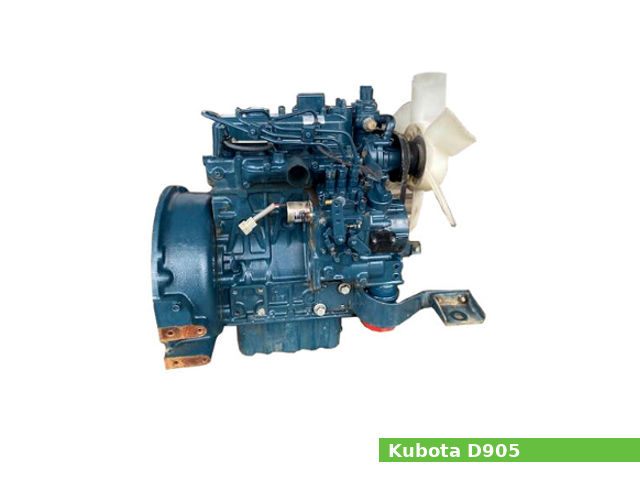

Kubota D905The Kubota D905 is a 0.9 L (898 cc, 54.8 cu·in) natural aspirated three-cylinders four-stroke liquid-cooled internal combustion small diesel engine, manufactured by Kubota for general-purpose applications.

A 72.0 mm (2.83 in) cylinder bore and 73.6 mm (2.9 in) piston stroke give the D905 engine a total of 898 cc of displacement. The compression ratio rating is 22.0:1 for model D905-B(E) or 23.0:1 for models D905-E2B,-E3B,-E4B.

The Kubota D905 diesel engine produced 23.8 PS (17.5 kW; 23.5 HP) at 3,600 rpm of maximum net output power and 52.8 N·m (5.4 kg·m, 38.9 ft·lb) at 2,400 rpm of peak torque.

The Kubota D905 features:

  • Spherical type (E-TVCS) combustion chamber
  • Bosch MD type mini fuel injection pump
  • All speed mechanical governor
  • Forced lubrication by trochoid pump lubrication system
  • Liquid-cooled cooling system
  • Electric starting with 12V starter

General information

Engine Specifications
Engine modelD905
Engine type4-stroke, vertical, three-cylinders
Displacement0.9 L, 898 cm3, (54.8 cu·in)
Max. horsepower23.8 PS (17.5 kW; 23.5 HP) at 3,600 rpm
Max. torque52.8 N·m (5.4 kg·m, 38.9 ft·lb) at 2,400 rpm
Cooling systemLiquid-cooled
Lubricating systemForced lubrication by trochoid pump
Fuel injection pumpBosch MD type mini fuel injection pump
Fuel nozzleMini nozzle
Fuel usedDiesel fuel No. 2-D
Firing order1-2-3
Starting systemElectric starting with 12V starter
Starting support deviceGlow plug in combustion chamber
GovernorAll speed mechanical governor
Charging systemAlternator 12V
PTO shaft rotationCounterclockwise
Dimensions (L x W X H)498 x 397 x 609 mm (19.6 x 15.6 x 24 in)
Dry weight95 kg (210 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: D905-B(E): 22.0:1
D905-E2B, D905-E3B, D905-E4B: 24.0:1
Cylinder bore:72.0 mm (2.83 in)
Piston stroke:73.6 mm (2.9 in)
Cylinder internal diameter (standard):72.000-72.019 mm (2.8346-2.8354 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):22.025-22.040 mm (0.8671-0.8677 in)
Piston pin diameter:22.002-22.011 mm (0.8662-0.8666 in)
Side clearance (Second):0.085-0.112 mm (0.0033-0.0044 in)
Side clearance (Oil):0.020-0.055 mm (0.0008-0.0022 in)
Ring end gap (Top):0.250-0.400 mm (0.0098-0.0157 in)
Ring end gap (Second):0.250-0.400 mm (0.0098-0.0157 in)
Ring end gap (Oil):0.250-0.400 mm (0.0098-0.0157 in)
Crankshaft main journal diameter: 1-2: 47.934-47.950 mm (1.8872-1.8878 in)
3: 51.921-51.940 mm (2.0442-2.0448 in)
Crankpin journal diameter:39.959-39.975 mm (1.5732-1.5738 in)
Crankshaft center distance:36.8 mm (1.45 in)
Cylinder head
Valves:2 (6 valves in total)
Valve head diameter (INTAKE):33.0 mm (1.3 in)
Valve head diameter (EXHAUST):27.0 mm (1.06 in)
Valve steam diameter (INTAKE):6.960-6.975 mm (0.274-0.2746 in)
Valve steam diameter (EXHAUST):6.960-6.975 mm (0.274-0.2746 in)
Valve length (INTAKE):101.5 mm (3.99 in)
Valve length (EXHAUST):101.5 mm (3.99 in)
Valve spring free length (INTAKE):37.0-37.5 mm (1.4567-1.4764 in)
Valve spring free length (EXHAUST):37.0-37.5 mm (1.4567-1.4764 in)
Camshaft lobe height (INTAKE):28.80 mm (1.1339 in)
Camshaft lobe height (EXHAUST):29.00 mm (1.1417 in)
Camshaft journal diameter :35.934-35.950 mm (1.4147-1.4154 in)
Timing Gear
Crank Gear to Idle Gear 1 (backlash):0.0320-0.115 mm (0.00126-0.00452 in)
Idle Gear 1 to Cam Gear (backlash):0.0360-0.114 mm (0.00142-0.00448 in)
Idle Gear 1 to Injection Pump Gear (backlash):0.0340-0.116 mm (0.00134-0.00456 in)
Idle Gear 1 to Idle Gear 2 (backlash):0.0330-0.117 mm (0.00130-0.00460 in)
Idle Gear 2 to Governor Gear (backlash):0.0300-0.117 mm (0.00119-0.00460 in)

Tightening torque

Tightening torque specs
Cylinder head cover screw (M7x1.0):6.9-8.8 Nm (5.1-6.5 lb-ft)
Cylinder head screw (M10x1.25):63.7-68.6 Nm (47.0-50.6 lb-ft)
Main bearing case screw 1 (M8x1.25):29.4-34.3 Nm (21.7-25.3 lb-ft)
Main bearing case screw 2 (M9x1.25):49.0-53.9 Nm (36.2-39.8 lb-ft)
Flywheel screw (M10x1.25):53.9-58.8 Nm (39.8-43.4 lb-ft)
Connecting rod screw (M8x1.0):41.2-46.1 Nm (30.4-34.0 lb-ft)
Rocker arm bracket nuts (M7x1.0):21.6-26.5 Nm (15.9-19.5 lb-ft)

Service Data

Engine
Idle speed:900 rpm
Maximum speed:3,000-3,800 rpm (depending on modification)
Cylinder compression: D905-B(E): 2.84 to 3.23 MPa, 29.0 to 33.0 kgf/cm2, 412 to 469 psi
D905-E2B,-E3B,-E4B: 3.73 to 4.11 MPa, 38.0 to 42.0 kgf/cm2, 541 to 597 psi
Valve clearance
Intake valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:Forced lubrication by trochoid pump
Oil type:CF or higher
Recommended oil:SAE 10W-30, 10W-40
Oil capacity: 101 mm: 4.0 L (4.23 US. qt, 3.52 Imp. qt.)
125 mm: 5.1 L (5.40 US. qt, 4.50 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter:Full flow paper filter (Cartridge type)
Oil pressure indicating:Electrical type switch
Oil and oil filter change interval:Every 200 hours
Fuel system
Fuel injection pump:Bosch MD type mini fuel injection pump
Injection nozzle:Mini Nozzle (DNOPD)
Firing order:1-2-3
Injection pressure:13.73 MPa (140 kgf/cm2, 1,991 psi)
Cooling system
Coolant capacity3.4 L (3.6 US.qts, 3.0 Imp. qts)
Electrical system
Battery:12V, 60Ah or equivalent
Starting motor:12 V, 0.9 kW
Starter mica undercut:0.5-0.8 mm (0.0197-0.0315 in)
Starter brush length:13.0 mm (0.5118 in)
Charging alternator:12 V, 150 W
Alternator (no-load voltage):AC 13,5V at 5,000 rpm

Applications

Manufacturer or BrandModels
Tractors
KubotaA-15, A-155, B72, B1700, B1710, B1830, BX22, BX23, BX2200
