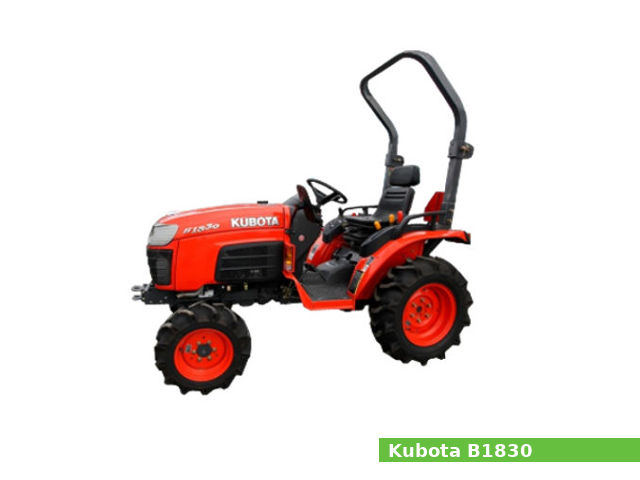

Kubota B1830 utility tractor specs and service data

The Kubota B1830 is a utility tractor model from the B30 series, manufactured from 2007 to 2013 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota B1830 is equipped with a 0.9 L (54.8 cu·in) three-cylinder diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and a gear shift transmission with 9 forward and 9 reverse gears and dry single-plate type clutch.

The Kubota B1830 utility tractor features:

The Kubota D905-E2-D21-EU diesel engine which produces 18.0 PS (13.2 kW; 17.7 HP) of horsepower.
Hydrostatic power steering
Wet disc type brakes
Open operator station with two-post ROPS
Category I rear hitch with 970 kg (2,140 lbs) of maximum lift capacity
Middle PTO with 2,500 rpm
Transmission rear PTO with 540 rpm

General specifications

General Specifications
Model	Kubota B1830
Tractor type	Utility tractor
Production years	2007-2013
Factory	–
Dimensions and weight
Length	2,735 mm (107.7 in)
Width	1,025 mm (40.4 in)
Height	2,240 mm (88.2 in)
Wheel base	1,500 mm (59.1 in)
Weight	705 kg (1,554 lbs)
Fuel capacity
Fuel tank capacity	28.0 liters (7.4 US gal.; 6.2 Imp. gal)

Engine

Engine
Engine model	Kubota D905
Engine type	4-stroke, SOHC, three-cylinders
Displacement	0.9 L, 898 cm², (54.8 cu·in)
Max. horsepower	18.0 PS (13.2 kW; 17.7 HP)
Max. torque	54.0 N·m (5.5 kg·m, 39.8 ft·lb)
Cooling system	Liquid-cooled
Coolant capacity	4.5 L (4.8 US. qt, 4 Imp. qt.)
Fuel used	Diesel fuel
Starting system	Electric starting with 12V starter
Starting support device	Glow plug in combustion chamber
Governor	All speed mechanical governor
Charging system	Alternator 12V
PTO shaft rotation	Counterclockwise
Valve clearance
Intake valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:	0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system	Forced lubrication by trochoid pump
Oil type	CF or higher
Recommended oil:	SAE 10W-30, 10W-40
Oil capacity:	3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Oil pressure	At idle speed: 49 MPa (0.5 kgf/cm², 7 psi) At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm², 28 to 64 psi)
Oil filter	Full flow paper filter (Cartridge type)
Oil pressure indicating	Electrical type switch
Oil and oil filter change interval	Every 200 hours
Fuel system
Fuel injection pump:	Bosch MD type mini fuel injection pump
Injection nozzle:	Mini Nozzle (DNOPD)
Firing order:	1-2-3
Injection pressure:	13.73 MPa (140 kgf/cm², 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×4 MFWD 4WD
Steering type	Hydrostatic power
Brakes	Wet disc type
Transmission
Transmission manufacturer or model	–
Transmission type	Gear shift with dry single plate type clutch
Gears	9 forward and 9 reverse
Speed	Forward: 17.1 kmh (10.6 mph) Reverse: 17.3 kmh (10.8 mph)
Transmission oil capacity	15.0 L (4 US. gal, 3.3 Imp. gal.)

Tires

Tires
Front tires	Ag: 6-12B
Rear tires	Ag: 8-16

Rear Hitch

Three-Point Hitch
Category	I
Control type	Position control
Lift capacity (at ends)	970 kg (2,140 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type	–
Middle PTO speed	2,500 rpm
Rear PTO type	Transmission
Rear PTO speed	540 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator
Charging amps	40A
Battery	12V, CCA: 430A

Hydraulic system

Hydraulic system
Hydraulic type	–
Pressure	2200 psi (151.7 bar)
Pump flow	5.4 gpm (20.4 lpm)
Steering flow	4.1 gpm (15.5 lpm)
Total flow	9.5 gpm (36 lpm)
