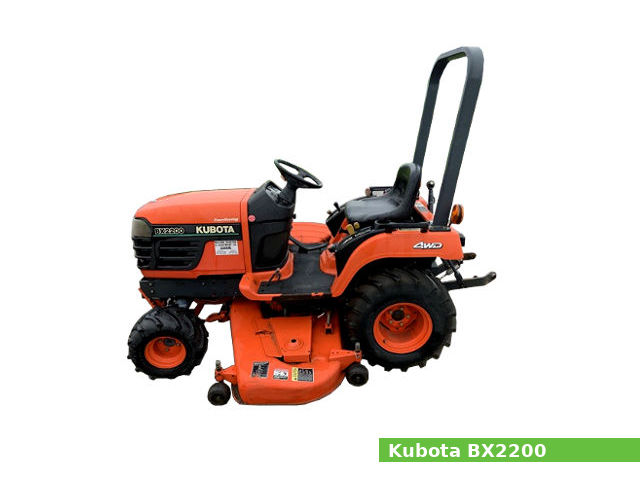

The Kubota BX2200 is a sub-compact utility tractor model from the BX series, manufactured from 2001 to 2003 by Kubota. It was available in four-wheel drive (4WD) version.
The Kubota BX2200 is equipped with a 0.9 L (54.8 cu·in) three-cylinder diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and a hydrostatic transmission with range gear shift (2 forward and 2 reverse) gears.
The Kubota BX2200 sub-compact utility tractor features:
- The Kubota D905-E-BX diesel engine which produces 22.3 PS (16.4 kW; 22 HP) at rpm of horsepower.
- Hydrostatic type steering
- Wet disk type brakes
- Open operator station with ROPS
- Category I rear hitch with 310 kg (684 lbs) of maximum lift capacity
- Independent middle PTO with 2,500 rpm
- Independent rear PTO with 540 rpm and hydraulic clutch
General specifications
| General Specifications |
| Model |
Kubota BX2200 |
| Tractor type |
Sub-compact utility tractor |
| Production years |
2001-2003 |
| Factory |
– |
| Dimensions and weight |
| Length |
2,025 mm (79.7 in)
|
| Width |
1,145 mm (45.1 in)
|
| Height |
1,800 mm (70.9 in)
|
| Wheel base |
1,400 mm (55.1 in)
|
| Ground clearance |
170 mm (6.7 in)
|
| Weight |
590 kg (1,301 lbs)
|
| Fuel capacity |
| Fuel tank capacity |
21 liters (5.5 US gal.; 4.6 Imp. gal) |
Engine
| Engine |
| Engine model |
Kubota D905 |
| Engine type |
4-stroke, SOHC, three-cylinders |
| Displacement |
0.9 L, 898 cm2, (54.8 cu·in) |
| Horsepower |
22.3 PS (16.4 kW; 22.0 HP) |
| Torque |
54.9 N·m (5.6 kg·m, 40.5 ft·lb) |
| Cooling system |
Liquid-cooled |
| Coolant capacity |
3.5 L (3.7 US. qt, 3.1 Imp. qt.) |
| Fuel used |
Diesel fuel |
| Starting system |
Electric starting with 12V starter |
| Starting support device |
Glow plug in combustion chamber |
| Governor |
All speed mechanical governor |
| Charging system |
Alternator 12V |
| PTO shaft rotation |
Counterclockwise |
| Valve clearance |
| Intake valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Exhaust valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Oil system |
| Lubrication system |
Forced lubrication by trochoid pump |
| Oil type |
CF or higher |
| Recommended oil: |
SAE 10W-30, 10W-40 |
| Oil capacity: |
2.5 L (2.6 US. qt, 2.2 Imp. qt.) |
| Oil pressure |
At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
|
| Oil filter |
Full flow paper filter (Cartridge type) |
| Oil pressure indicating |
Electrical type switch |
| Oil and oil filter change interval |
Every 200 hours |
| Fuel system |
| Fuel injection pump: |
Bosch MD type mini fuel injection pump |
| Injection nozzle: |
Mini Nozzle (DNOPD) |
| Firing order: |
1-2-3 |
| Injection pressure: |
13.73 MPa (140 kgf/cm2, 1,991 psi) |
Transmission and chassis
| Chassis, steering and brakes |
| Chassis |
4×4 MFWD 4WD |
| Steering type |
Hydrostatic type |
| Brakes |
Wet disk type |
| Transmission |
| Transmission manufacturer or model |
– |
| Transmission type |
Hydrostatic |
| Gears |
Range gear shift (2 forward and 2 reverse) |
| Speed |
Forward: 13.0 kmh (8.1 mph)
Reverse: 10.0 kmh (6.2 mph)
|
| Transmission oil capacity |
10.1 L (2.7 US. gal, 2.2 Imp. gal.) |
Tires
| Tires |
| Front tires |
Lawn/turf: 18×8.50-8 |
| Rear tires |
Lawn/turf: 26×12.00-12 |
Rear Hitch
| Three-Point Hitch |
| Category |
I |
| Control type |
– |
| Lift capacity |
310 kg (684 lbs) |
PTO (Power take-off shaft)
| PTO |
| Middle PTO type |
Independent |
| Middle PTO speed |
2,500 rpm |
| Rear PTO type |
Independent with hydraulic clutch |
| Rear PTO speed |
540 rpm |
Electrical system
| Electrical system |
| Ground |
Negative |
| Charging system |
– |
| Charging amps |
– |
| Battery |
12V, CCA: 535A |
Hydraulic system
| Hydraulic system |
| Hydraulic type |
– |
| Pump flow |
5.5 gpm (20.8 lpm) |
Attachments
| Kubota Kubota RCK54: 54″ mid-mount mower deck with 3-blade |
| Cutting width |
1,370 mm (54 in) |
| Belt |
Shaft-drive |
| Weight |
102 kg (227 lbs) |
| Overall width |
1,700 mm (67 in) |
| Cut height |
20-120 mm (1-5 in) |
| Cut positions |
9 |
| Kubota RCK60: 60″ mid-mount mower deck with 3-blade |
| Cutting width |
1,520 mm (60 in) |
| Belt |
Shaft-drive |
| Weight |
120 kg (265 lbs) |
| Overall width |
1,840 mm (72.6 in) |
| Cut height |
20-120 mm (1-5 in) |
| Cut positions |
9 |
| Kubota TG2754 front-mount 54″ blade with hydraulic lift |
| Width |
1,370 mm (54 in) |
| Height |
430 mm (17.0 in) |
| Lift height |
190 mm (7.5 in) |
| Cut depth |
60 mm (2.75 in) |
| Weight |
74 kg (165 lbs) |
| Lift type |
Hydraulic |
| Angle type |
Manual |
| Kubota BX2763 front-mount 60″ blade with hydraulic lift |
| Width |
1,520 mm (60 in) |
| Height |
480 mm (19.0 in) |
| Lift height |
200 mm (8 in) |
| Cut depth |
120 mm (5 in) |
| Weight |
97 kg (215 lbs) |
| Lift type |
Hydraulic |
| Angle type |
Hydraulic |
| Kubota BX2750A: front-mount 50″ dual-stage snow blower with hydraulic lift |
| Clearing width |
1,270 mm (50 in) |
| Clearing height |
260 mm (10.5 in) |
| Weight |
95 kg (210 lbs) |
| Kubota LA211 loader |
| Height (to pin) |
1,810 mm (71.3 in) |
| Clearance, dumped bucket |
1,300 mm (51.2 in) |
| Dump reach |
750 mm (29.9 in) |
| Dump angle |
45° |
| Rollback angle |
25° |
| Breakout force (lift) |
430 kg (950 lbs) |
| Lift to full height (at pin) |
208 kg (460 lbs) |
| Bucket width |
1,210 mm (48 in) |
| Raise time to height |
2.9 s |
| Lowering time |
2.9 s |
