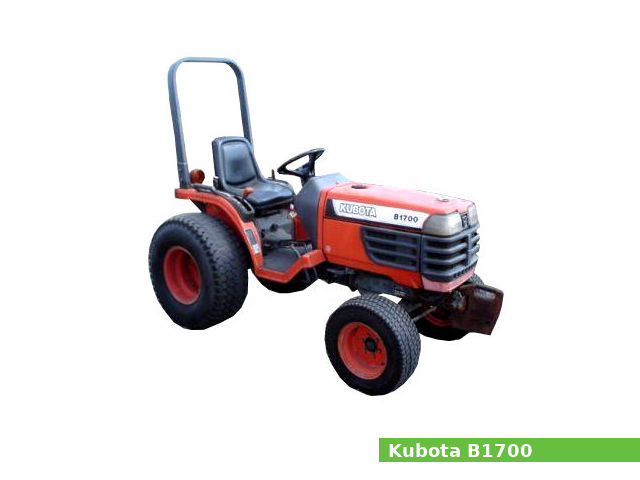

Kubota B1700 is a utility tractor model from the B series, manufactured from 1995 to 1999 by Kubota. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.
The Kubota B1700 is equipped with a 0.9 L (54.8 cu·in) three-cylinder diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears or a hydrostatic transmission with infinite (2-range) forward and reverse gears.
The Kubota B1700 utility tractor features:
The Kubota D905-D10 diesel engine which produces 17.3 PS (12.7 kW; 17.0 HP) of horsepower. Integral type power steering Wet disc type brakes Open operator station with two-post ROPS Category I rear hitch with 580 kg (1279 lbs) of maximum lift capacity Middle PTO with 2,531 rpm Live front PTO with 540 rpm General specifications General Specifications Model Kubota B1700 Tractor type Utility tractor Production years 1995-1999 Factory – Dimensions and weight Length 2,280 mm (89.8 in) Width 990 mm (39 in) Height 1,915 mm (75.4 in) Wheel base 1,500 mm (59.1 in) Ground clearance 290 mm (11.4 in) Weight 635 kg (1,400 lbs) Fuel capacity Fuel tank capacity 24.0 liters (6.3 US gal.; 5.3 Imp. gal)
Engine Engine Engine model Kubota D905 Engine type 4-stroke, SOHC, three-cylinders Displacement 0.9 L, 898 cm2 , (54.8 cu·in) Max. horsepower 17.3 PS (12.7 kW; 17.0 HP) Max. torque 51.0 N·m (5.2 kg·m, 37.6 ft·lb) Cooling system Liquid-cooled Coolant capacity 3.4 L (3.6 US. qt, 3 Imp. qt.) Fuel used Diesel fuel No. 2-D Starting system Electric starting with 12V starter Starting support device Glow plug in combustion chamber Governor All speed mechanical governor Charging system Alternator 12V PTO shaft rotation Counterclockwise Valve clearance Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in) Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in) Oil system Lubrication system Forced lubrication by trochoid pump Oil type CF or higher Recommended oil: SAE 10W-30, 10W-40 Oil capacity: 3.0 L (3.2 US. qt, 2.6 Imp. qt.) Oil pressure At idle speed: 49 MPa (0.5 kgf/cm2 , 7 psi)At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2 , 28 to 64 psi) Oil filter Full flow paper filter (Cartridge type) Oil pressure indicating Electrical type switch Oil and oil filter change interval Every 200 hours Fuel system Fuel injection pump: Bosch MD type mini fuel injection pump Injection nozzle: Mini Nozzle (DNOPD) Firing order: 1-2-3 Injection pressure: 13.73 MPa (140 kgf/cm2 , 1,991 psi)
Transmission and chassis Chassis, steering and brakes Chassis 4×2 2WD or 4×4 MFWD 4WD Steering type Integral type power Brakes Wet disc type Transmission Transmission manufacturer or model – Transmission type Gear type Gears 6 forward and 2 reverse Speed Forward: 13.2 kmh (8.2 mph)Reverse: 5.2 kmh (3.2 mph) Transmission oil capacity 11.0 L (2.9 US. gal, 2.4 Imp. gal.) Transmission № 2 Transmission manufacturer or model – Transmission type Hydrostatic Gears Infinite (2-range) forward and reverse Speed Forward: 12.3 kmh (7.6 mph)Reverse: 12.3 kmh (7.6 mph) Transmission oil capacity 12.0 L (3.2 US. gal, 2.6 Imp. gal.)
Tires Tires Front tires Ag: 5.00-10 (2WD); 6.00-12 (4WD)Rear tires Ag: 8.3-16
Rear Hitch Three-Point Hitch Category I Control type Position control Lift capacity (at ends) 580 kg (1,279 lbs)
PTO (Power take-off shaft) PTO Middle PTO type – Middle PTO speed 2,531 rpm Rear PTO type Live Rear PTO speed 540 rpm
Electrical system Electrical system Ground Negative Charging system – Charging amps – Battery 12V, CCA: 390A
Hydraulic system Hydraulic system Hydraulic type Open center Pump flow 5.8 gpm (22 lpm)
Attachments Kubota 54″ mid-mount mower deck Cutting width 1,370 mm (54 in) Kubota 60″ mid-mount mower deck Cutting width 1,520 mm (60 in) Kubota B2650: front-mount 50″ snow blower Clearing width 1,270 mm (50 in) Kubota B2660: front-mount 60″ snow blower Clearing width 1,520 mm (60 in) Kubota LA301 loader Height (to pin): 1,790 mm (70.5 in) Clearance, dumped bucket: 1,320 mm (52 in) Dump reach: 640 mm (25.4 in) Dump angle: 45° Reach at ground: 1,290 mm (51 in) Rollback angle: 24° Breakout force (lift): 521 kg (1,150 lbs) Lift to full height (at pin): 299 kg (660 lbs) Kubota B4672 backhoe
