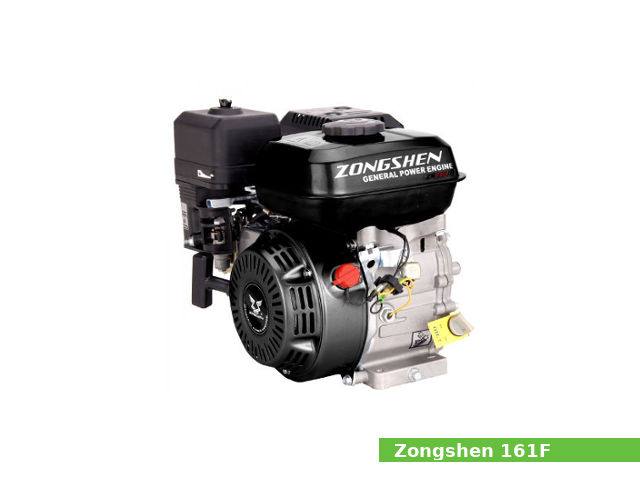

The Zongshen 161F is a 0.1 L (123 cc, 7.51 cu·in) naturally aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft from the Zongshen BT-series, manufactured by Zongshen Power Co. for general-purpose applications.
The Zongshen BT161F engine has a single-cylinder, overhead valve (OHV) design, and recoil starter. This engine used a carburetor fuel system, transistorized magneto ignition system, splash type lubricating system, and forced-air cooling system. The engine is fitted with a semi-dry foam air cleaner. The ZS 161F is equipped with a 1.5 L (0.4 US. gal. 0.33 Imp. gal.) fuel tank.
The Zongshen ZS 161F engine produced 3.0 PS (2.2 kW; 3.0 HP) at 3,600 rpm of maximum output power
General information
| Engine Specifications | |
| Engine model | ZS BT161F |
| Engine type | 4-stroke, OHV, single-cylinder |
| Displacement | 123 cm3, (7.51 cu·in) |
| Max. horsepower | 3.0 PS (2.2 kW; 3.0 HP) at 3,600 rpm |
| Cooling system | Forced air |
| Air cleaner | Semy-dry foam filter |
| Lubricating system | Splash |
| Ignition system | Transistorized ignition |
| Fuel system | Carburetor |
| Fuel consumption | 394 g/kWh |
| Fuel tank capacity | 1.5 L (0.4 US. gal. 0.33 Imp. gal.) |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Recoil starter |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | 390 x 280 x 320 mm (15.4 x 11 x 12.6 in) |
| Dry weight | 12.5 kg (27.6 lbs) |
Cylinder Block and Head
It has a 61.0 mm (2.4 in) cylinder bore and 42.0 mm (1.65 in) piston stroke. Compression ratio rating is 8.7:1.
| Cylinder block | |
| Compression ratio: | 8.7:1 |
| Cylinder bore: | 61.0 mm (2.4 in) |
| Piston stroke: | 42.0 mm (1.65 in) |
| Crankshaft center distance: | 21 mm (0.825 in) |
| Cylinder head | |
| Valve arrangement: | OHV, belt driven |
| Valves: | 2 |
Service Data
The 4-stroke engine oil with a viscosity of 10W-30 is recommended for the ZS 161F, refilling oil capacity is 0.6 L (0.63 US. qt, 0.53 Imp. qt.). The valve clearance is 0.10-0.15 mm (0.0039-0.0059 in) for intake valves and 0.15-0.20 mm (0.0059-0.0079 in) for exhaust valves.
| Idle speed: | 1,450 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.10-0.15 mm (0.0039-0.0059 in) |
| Exhaust valve clearance: | 0.15-0.20 mm (0.0059-0.0079 in) |
| Oil system | |
| Lubrication system: | Splash type |
| Oil consupumtion: | 6.5 g/kWh |
| Oil type: | 4-stroke engine oil |
| Recommended oil: | 10W-30 |
| Oil capacity: | 0.6 L (0.63 US. qt, 0.53 Imp. qt.) |
| Fuel system | |
| Type: | Carburetor |
| Ignition system | |
| Type: | Transistorized ignition |
| Ignition timing: | 23°±2° B.T.D.C. |
| Spark plug gap: | 0.6-0.8 mm (0.0236-0.0315 in) |
| Spark plug torque: | 20 N·m (2 kg·m, 14.7 ft·lb) |
