Zongshen GB200S

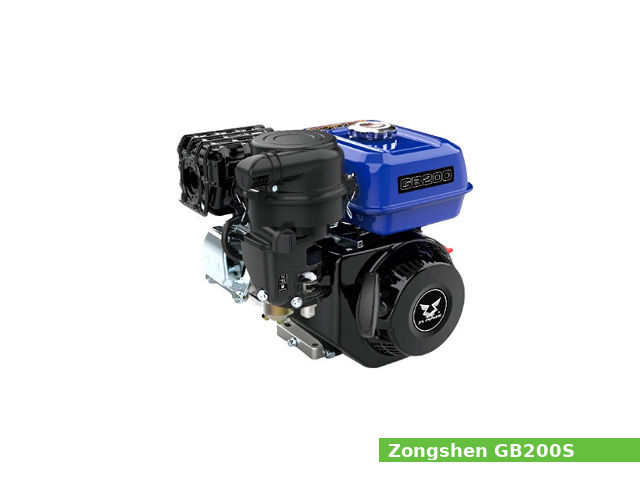

Zongshen GB200SThe Zongshen GB200S is a 196 cc, (11.96 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft from GB-series, manufactured by Zongshen Power Co. for general-purpose applications.

The GB200S engine has a single-cylinder, overhead valve (OHV) design, and recoil or electric starter. This general-purpose engine used a carburetor fuel system, transistorized magneto ignition system, splash type lubricating system, and forced-air cooling system. The ZS GB200S is equipped with a 4.2 L (1.11 US. gal. 0.92 Imp. gal.) fuel tank.

This engine produced 5.7 PS (4.2 kW; 5.6 HP) at 3,600 rpm of horsepower and 11.5 N·m (1.2 kg·m, 8.5 ft·lb) of peak torque.

General information

Engine Specifications
Engine modelGB200A
Engine type4-stroke, OHV, single-cylinder
Displacement196 cm3, (11.96 cu·in)
Max. horsepower5.7 PS (4.2 kW; 5.6 HP) at 3,600 rpm
Max. torque11.5 N·m (1.2 kg·m, 8.5 ft·lb)
Cooling systemForced air
Lubricating systemSplash
Ignition systemTransistorized ignition
Fuel systemCarburetor
Fuel consumption395 g/kWh
Fuel tank capacity4.2 L (1.11 US. gal. 0.92 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)365 x 320 x 345 mm (14.4 x 12.6 x 13.6 in)
Dry weight15.5 kg (34.2 lbs)

Cylinder Block and Head

Cylinder bore and piston stroke are 68.0 mm (2.68 in) and 54.0 mm (2.13 in), respectively.

Cylinder block
Compression ratio:
Cylinder bore:68.0 mm (2.68 in)
Piston stroke:54.0 mm (2.13 in)
Number of piston rings (compression / oil):2/1
Number of main bearings:2
Crankshaft center distance:27.0 mm (1.065 in)
Cylinder head
Valve arrangement:OHV
Valves:2

Service Data

The 4-stroke engine oil with a viscosity of SAE 10W-30 is recommended for the ZS GB200, refilling oil capacity is 0.6 L (0.63 US. qt, 0.53 Imp. qt.).

Engine
Maximum speed:3,900 rpm
Oil system
Lubrication system:Splash
Oil type:4-stroke engine oil
Recommended oil:SAE 10W-30
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Carburetor
Ignition system
Type:Transistorized ignition
Ignition timing:25°±2° B.T.D.C.
Spark plug gap:0.6-0.8 mm (0.0236-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
