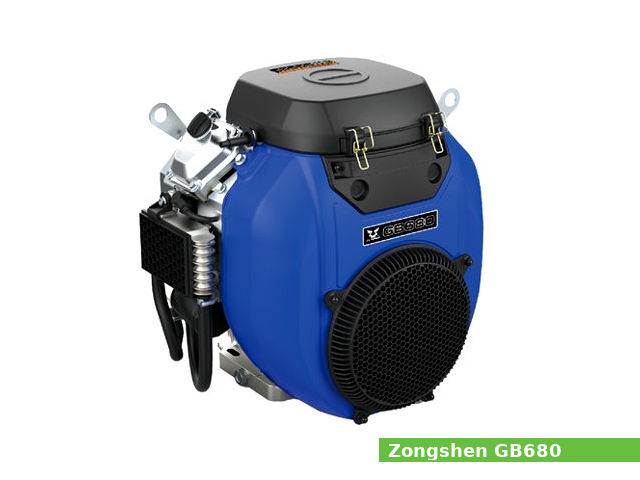

The Zongshen GB680 is a 679 cc, (41.4 cu·in) natural aspirated V-twin cylinders four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Zongshen Power Co for general-purpose applications.
The Zongshen GB680 engine has V-twin cylinders, an overhead valve (OHV) design, and a recoil or electric starter. This engine used a carburetor fuel system, transistorized magneto ignition system, splash type lubricating system, and forced-air cooling system.
The GB680 engine produced 19.7 PS (14.5 kW; 19.4 HP) at 3,600 rpm of maximum horsepower and 42 N·m (4.3 kg·m, 31 ft·lb) at rpm of maximum torque.
General information
| Engine Specifications | |
| Engine model | GB680 |
| Engine type | 4-stroke, OHV, two-cylinders |
| Displacement | 679 cm3, (41.44 cu·in) |
| Max. horsepower | 19.7 PS (14.5 kW; 19.4 HP) at 3,600 rpm |
| Max. torque | 42 N·m (4.3 kg·m, 31 ft·lb) at rpm |
| Cooling system | Forced air |
| Lubricating system | Splash type |
| Ignition system | Transistorized ignition |
| Fuel system | Carburetor |
| Fuel consumption | 370 g/kWh |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Recoil / electric starter |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | 462 x 428 x 456 mm (18.2 x 16.9 x 18 in) |
| Dry weight | 46.5 kg (102.5 lbs) |
Cylinder Block and Head
A 78.0 mm (3.07 in) cylinder bore and 71.0 mm (2.8 in) piston stroke give the GB680 engine a total of 679 cc of displacement. The compression ratio rating is 8.5:1.
| Cylinder block | |
| Compression ratio: | 8.5:1 |
| Cylinder bore: | 78.0 mm (3.07 in) |
| Piston stroke: | 71.0 mm (2.8 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Crankshaft center distance: | 35.5 mm (1.4 in) |
| Cylinder head | |
| Valve arrangement: | OHV |
Service Data
The 4-stroke engine oil with a viscosity of SAE 10W-30 is recommended for the GB680, refilling oil capacity is 1.2 L (1.27 US. qt, 1.06 Imp. qt.). The valve clearance is 0.10-0.15 mm (0.0039-0.0059 in) for intake valves and 0.15-0.20 mm (0.006-0.008 in) for exhaust valves.
| Engine | |
| Maximum speed: | 3,900 rpm |
| Idle speed: | 1,450±150 rpm |
| Valve clearance | |
| Intake valve clearance (COLD): | 0.10-0.15 mm (0.0039-0.0059 in) |
| Exhaust valve clearance (COLD): | 0.15-0.20 mm (0.0059-0.0079 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | 4-stroke engine oil |
| Recommended oil: | SAE 10W-30 |
| Oil capacity: | 1.2 L (1.27 US. qt, 1.06 Imp. qt.) |
| Fuel system | |
| Type: | Carburetor |
| Ignition system | |
| Type: | Transistorized ignition |
| Spark plug gap: | 0.6-0.8 mm (0.0236-0.0315 in) |
| Spark plug torque: | 20 N·m (2 kg·m, 14.7 ft·lb) |
