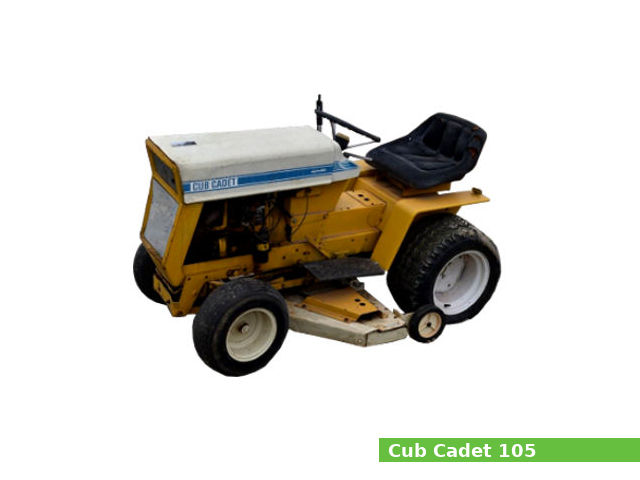

Cub Cadet 105The Cub Cadet 105 is a garden tractor model from the 1X4/1X5 series, manufactured from 1967 to 1969 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in two-wheel drive (2WD) version.

The Cub Cadet 105 is equipped with a 391 cc (23.9 cu·in) single-cylinder gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 105 garden tractor features:

  • The Kohler K241AS gasoline engine which produces 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Drum brakes
  • Open operator station
  • Cub Cadet three-point hitch
  • Independent front PTO with mechanical clutch with 3,600 rpm

General specifications

General Specifications
ModelCub Cadet 105
Tractor typeGarden tractor
Production years1967-1969
FactoryLouisville, Kentucky, USA
Dimensions and weight
Length1,620 mm (63.8 in)
Width840 mm (33.1 in)
Height1,000 mm (39.4 in)
Wheel base1,090 mm (42.9 in)
Ground clearance150 mm (5.9 in)
Weight283 kg (624 lbs)
Fuel capacity
Fuel tank capacity6.2 liters (1.6 US gal.; 1.4 Imp. gal)

Engine

Engine Specifications
Engine modelKohler K241AS
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement391 cm3, (23.86 cu·in)
Bore and stroke82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Compression ratio7.0:1
Max. horsepower10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Cooling systemForced air
Lubricating systemSplash type
Ignition systemBattery ignition system
Fuel systemCarburetor
Starting systemElectirc starter
Compression pressure
Normal:7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Type:Battery ignition system
Spark plug:Champion RH10
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
BrakesDrum
Transmission
Transmission manufacturer or modelSundstrand
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 12.9 kmh (8 mph)
Reverse: 6.4 kmh (4 mph)
Transmission oil capacity6.6 L (1.7 US. gal, 1.5 Imp. gal.)

Tires

Tires
Front tiresLawn/turf: 4.80×4.00-8
Rear tiresLawn/turf: 6-12

Rear Hitch

Three-Point Hitch
CategoryCub Cadet three-point
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Front PTO typeIndependent with mechanical clutch
Front PTO speed3,600 rpm

Electrical system

Electrical system
GroundNegative
Charging systemGenerator
Charging amps15A
Battery12V

Serial numbers

Cub Cadet 105 serial numbers
1967218010
1968225056
1969280840
Final306085

Attachments

Cub Cadet 38QA: 38″ mower deck with 3-blade and manual lift
Cutting width960 mm (38 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 42QA: 42″ mower deck with 3-blade and manual lift
Cutting width1,060 mm (42 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 48QA: 48″ mower deck with 3-blade and manual lift
Cutting width1,210 mm (48 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 42″ blade and manual lift and manual angle
Cutting width1,060 mm (42 in)
Height:400 mm (16 in)
Cub Cadet 36″ front-mount snow blower with manual lift
Cleaning width910 mm (36 in)
Cub Cadet 42″ front-mount snow blower with manual lift
Cleaning width1,060 mm (42 in)
