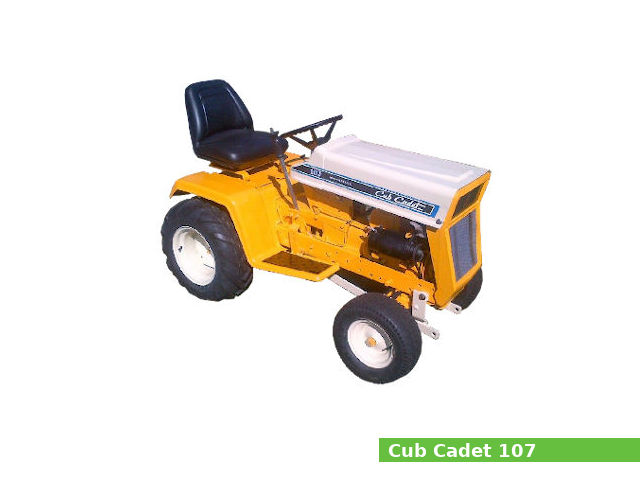

Cub Cadet 107The Cub Cadet 107 is a garden tractor model from the 1X6/1X7 series, manufactured from 1969 to 1971 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in a two-wheel drive (2WD) version.

The Cub Cadet 107 is equipped with a 391 cc (23.9 cu·in) single-cylinder gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 107 garden tractor features:

  • The Kohler K241AS gasoline engine which produces 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of horsepower.
  • Manual steering
  • Mechanical disc brakes
  • Open operator station
  • Cub Cadet three-point hitch (optional)
  • Front PTO with mechanical dry disc – 3,600 rpm

General specifications

General Specifications
Model Cub Cadet 107
Tractor type Garden tractor
Production years 1969-1971
Factory Louisville, Kentucky, USA
Dimensions and weight
Length 1,620 mm (63.8 in)
Width 840 mm (33.1 in)
Height (steering wheel) 1,000 mm (39.4 in)
Wheel base 1,090 mm (42.9 in)
Ground clearance 150 mm (5.9 in)
Weight (shipping) 285 kg (628 lbs)
Fuel capacity
Fuel tank capacity 6.2 liters (1.6 US gal.; 1.4 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K241AS
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 391 cm3, (23.86 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Compression ratio 7.0:1
Max. horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Torque 22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,200 rpm
Cooling system Forced air
Lubricating system Splash type
Ignition system Battery ignition system
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Type: Battery ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical disc
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph)
Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 4.80/4.00-8
Rear tires Lawn/turf: 6-12

Rear Hitch

Three-Point Hitch
Category Cub Cadet three-point (optional)
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Front PTO With mechanical dry disc
Front PTO speed 3,600 rpm

Electrical system

Electrical system
Ground Negative
Charging system Generator
Charging amps 15A
Battery 12V

Attachments

Cub Cadet 38″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width 960 mm (38 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet 42″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width 1,060 mm (42 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet 48″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width 1,210 mm (48 in)
Cutting height: 20-100 mm (1-4 in)
Cub Cadet 42″ blade and manual lift and manual angle
Cutting width 1,060 mm (42 in)
Height: 400 mm (16 in)
Cub Cadet QA-36: 36″ two-stage front-mount snow blower
Cleaning width 910 mm (36 in)
Weight 77 kg (170 lbs)
Cub Cadet 42″ two-stage front-mount snow blower
Cleaning width 1,060 mm (42 in)
Weight 81 kg (180 lbs)
