Cub Cadet 127

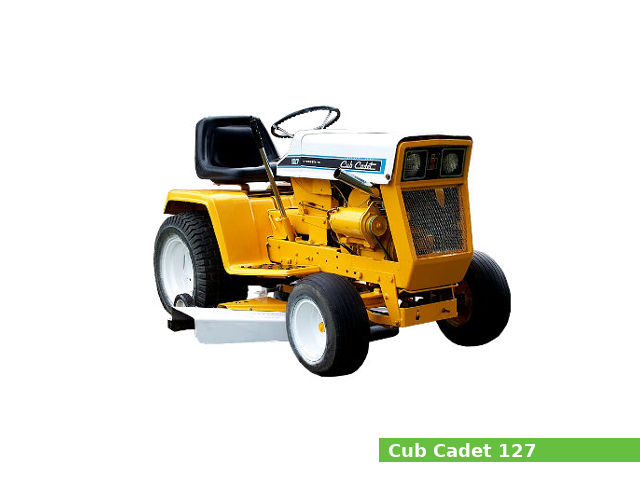

Cub Cadet 127The Cub Cadet 127 is a garden tractor model from the 1X6/1X7 series, manufactured from 1969 to 1971 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in a two-wheel drive (2WD) version.

The Cub Cadet 127 is equipped with a 476 cc (29.0 cu·in) single-cylinder gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 127 garden tractor features:

  • The Kohler K301A gasoline engine which produces 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of horsepower
  • Manual steering
  • Disc type brakes
  • Open operator station
  • Category Cub Cadet three-point hitch
  • Front PTO with 3,600 rpm

General specifications

General Specifications
Model Cub Cadet 127
Tractor type Garden tractor
Production years 1969-1971
Factory Louisville, Kentucky, USA
Dimensions and weight
Length 1,620 mm (63.8 in)
Width 910 mm (35.8 in)
Height 1,000 mm (39.4 in)
Wheel base 1,090 mm (42.9 in)
Ground clearance 150 mm (5.9 in)
Weight 295 kg (650 lbs)
Fuel capacity
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)

Engine

Engine Specifications
Engine model Kohler K301S
Engine type 4-stroke, L-head (side valve), single-cylinder
Displacement 476 cm3, (29.0 cu·in)
Bore and stroke 85.7 mm X 82.6 mm (3.37 in X 3.25 in)
Compression ratio 6.0:1
Max. horsepower 12.2 PS (9.0 kW; 12.0 HP) at 3,600 rpm
Torque 26.6 N·m (2.7 kg·m, 19.6 ft·lb)
Cooling system Forced air
Lubricating system Splash type
Fuel system Carburetor
Starting system Electirc starter
Compression pressure
Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance: 0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance: 0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system: Splash type
Oil type: API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Spark plug: Champion RH10
Spark plug gap: 0.65 mm (0.0256 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Disc type
Transmission
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph)
Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 4.80×4.00-8
Rear tires Lawn/turf: 23×8.50-12

Rear Hitch

Three-Point Hitch
Category Cub Cadet three-point (optional)
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Front PTO type
Front PTO speed 3,600 rpm

Electrical system

Electrical system
Ground Negative
Charging system Generator
Charging amps 15A
Battery 12V

Serial numbers

Cub Cadet 127 serial numbers
1969 307000
1970 322858
1971 373301
Final 400000

Attachments

Cub Cadet 38″ mid-mount mower deck with manual or electric (optional) lift
Cutting width 960 mm (38 in)
Cut height 20-100 mm (1-4 in)
Cub Cadet 42″ mid-mount mower deck with manual or electric (optional) lift
Cutting width 1,060 mm (42 in)
Cut height 20-100 mm (1-4 in)
Cub Cadet 50″ mid-mount mower deck with manual or electric (optional) lift
Width 1,270 mm (50 in)
Cut height 20-100 mm (1-4 in)
Cub Cadet 42″ front-mount blade
Cutting width 1,060 mm (42 in)
Cut height 40 mm (16 in)
Cub Cadet QA-36: 36″ two-stage front-mount snow blower
Width 910 mm (36 in)
Cub Cadet QA-42: 42″ two-stage front-mount snow blower
Width 1,060 mm (42 in)
