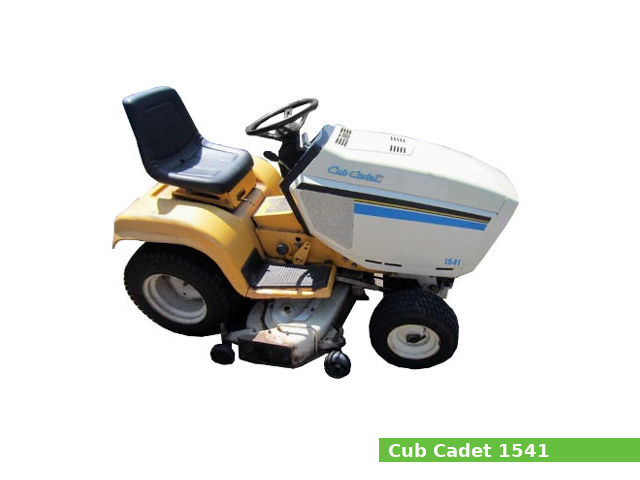

Cub Cadet 1541 is a garden tractor model manufactured from 1990 to 1991 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version only.
The Cub Cadet 1541 is equipped with a 691 cc (42.2 cu·in) two-cylinder gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet 1541 garden tractor features:
The Kohler M18S gasoline engine which produces 15.2 PS (11.2 kW; 15.0 HP) at 3,600 rpm of horsepower Manual steering Dual disc brakes Open operator station Independent front PTO with 3,600 rpm General specifications General Specifications Model Cub Cadet 1541 Tractor type Garden tractor Production years 1990-1991 Factory – Dimensions and weight Length 1,820 mm (71.7 in) Width 950 mm (37.4 in) Height (steering wheel) 1,110 mm (43.7 in) Wheel base 1,150 mm (45.3 in) Ground clearance 150 mm (5.9 in) Weight 310 kg (683 lbs) Fuel capacity Fuel tank capacity 18.9 liters (5 US gal.; 4.2 Imp. gal)
Engine Engine Specifications Engine model Kohler M18 Engine type 4-stroke, L-head (side valve), V-twin Displacement 691 cm2 , (42.2 cu·in) Bore and stroke 79.0 mm X 70.0 mm (3.11 in X 2.76 in) Max. horsepower 15.2 PS (11.2 kW; 15.0 HP) at 3,600 rpm Starting system Electirc starter, 12V Cooling system Cooling system Forced air Air cleaner Replaceable, paper element Fuel system Fuel system Carburetor Fuel pump type Mechanical Fuel filter type In-line Compression pressure Normal: 7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm Valve clearance Intake valve clearance: 0.076-0.152 mm (0.003-0.006 in) Exhaust valve clearance: 0.278-0.354 mm (0.011-0.014 in) Oil system Lubricating system Full pressure with oil filter Oil filter: Full-flow type Oil type: API SF or SG Recommended oil: Summer: SAE 30WWinter: SAE 5W-20, 5W-30 Oil capacity: 1.7 L (1.8 US. qt, 1.5 Imp. qt.) Ignition system Spark plug: Champion RV17YCSpark plug gap: 0.89 mm (0.035 in) Spark plug torque: 18 N·m (1.8 kg·m, 13.3 ft·lb)
Transmission and chassis Chassis, steering and brakes Chassis 4×2 2WD Steering type Manual Brakes Dual disc Transmission Transmission manufacturer or model – Transmission type Hydrostatic Gears Infinite forward and reverse Speed Forward: 12.1 kmh (7.5 mph)Reverse: 6.4 kmh (4 mph) Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires Tires Front tires Lawn/turf : 16×6.50-8 Rear tires Lawn/turf : 23×10.50-12
PTO (Power take-off shaft) PTO Front PTO type Independent with electric clutch Front PTO speed 3,600 rpm
Electrical system Electrical system Ground Negative Charging system Alternator Charging amps 15A Battery 12V
Serial numbers Cub Cadet 1541 serial numbers 1990 800000 1991 811672
Attachments Cub Cadet 190357: 38″ mid-mount mower deck with 2-blade, manual lift and right-discharge Cutting width 960 mm (38 in) Cutting height 38-101 mm (1.5-4.0 in) Deck style Stamped Cub Cadet 190358: 44″ mid-mount mower deck with 3-blade, manual lift and right-discharge Cutting width 1,110 mm (44 in) Cutting height 38-113 mm (1.5-4.5 in) Deck style Stamped Cub Cadet 190336: 46″ mid-mount mower deck with 3-blade, manual lift and right-discharge Cutting width 1,160 mm (46 in) Cutting height 38-113 mm (1.5-4.5 in) Deck style Stamped Cub Cadet 190375: 42″ front-mount blade Cutting width 1,110 mm (42 in) Cub Cadet 190376: 54″ front-mount blade Cutting width 1,370 mm (54 in) Cub Cadet 190450: 45″ front-mount two-stage snowblower Cleaning width 1,140 mm (45 in) Drive type Belt
