Cub Cadet LTX 1050 KH

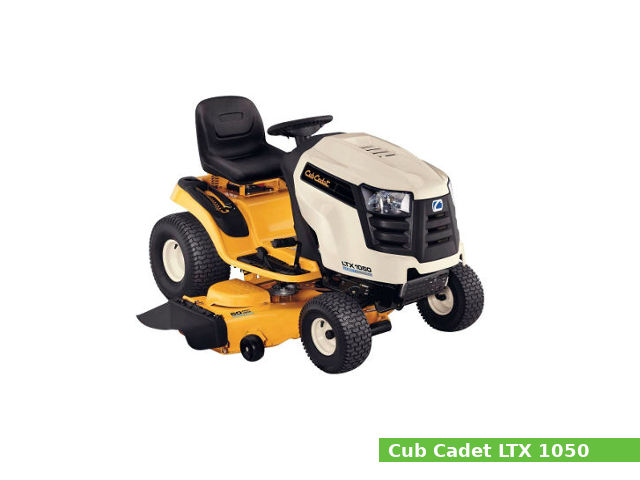

Cub Cadet LTX 1050 KHThe Cub Cadet LTX 1050 KH is a lawn tractor model from the LTX 1000 series, manufactured from 2009 to 2014 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet LTX 1050 KH is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet LTX 1050 KH lawn tractor features:

  • The Kohler Courage SV725 gasoline engine which produces 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm of horsepower.
  • Manual sector and pinion steering
  • Disc brakes
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
ModelCub Cadet LTX 1050 KH
Tractor typeLawn tractor
Production years2009-2014
Factory
Dimensions and weight
Length1,750 mm (68.9 in)
Width
Height
Wheel base1,200 mm (47.2 in)
Weight248 kg (547 lbs)
Fuel capacity
Fuel tank capacity12.5 liters (3.3 US gal.; 2.7 Imp. gal)

Engine

Engine
Engine modelKohler SV725
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement725 cm3, (44.2 cu·in)
Bore and stroke83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio9.0:1
Horsepower24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm
StarterElectric
Oil system
Lubrication system:Full pressurized
Oil type:API SJ or higher
Recommended oil:SAE 10W-30
Oil capacity (with filter):1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug:Champion RC12YC
Spark plug gap:0.76 mm (0.0299 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance:0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual sector and pinion
BrakesDisc
Transmission
Transmission manufacturer or model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph)
Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity2.0 L (0.5 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tiresLawn/turf: 15×6
Rear tiresLawn/turf: 20×10

PTO (Power take-off shaft)

PTO
Front PTO typeIndependent with electric clutch
Front PTO speed

Electrical system

Electrical system
GroundNegative
Charging systemАlywheel alternator
Charging amps15A
Battery12V, CCA 190A

Attachments

Cub Cadet 50″ mid-mount mower deck with 3-blade and manual lift
Cutting width1,270 mm (50 in)
Cut height30-100 mm (1.5-4 in)
Cut positions12
