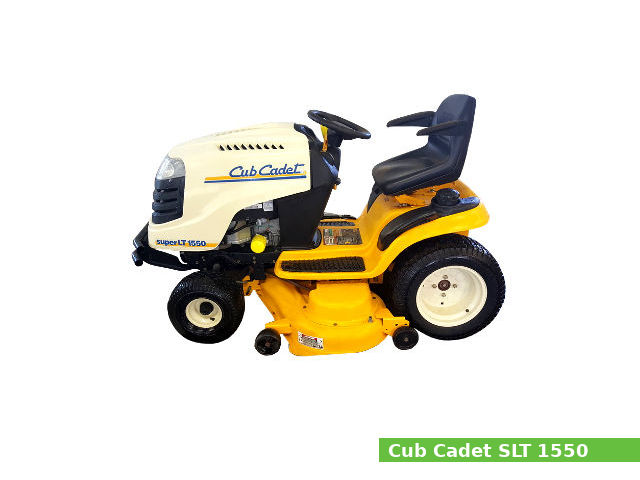

Cub Cadet SLT1550

Cub Cadet SLT1550The Cub Cadet SLT1550 is a lawn tractor model from the 1500 series, manufactured from 2006 to 2008 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet SLT1550 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet SLT1550 lawn tractor features:

  • The Kohler Courage SV730 gasoline engine which produces 25.3 PS (18.6 kW; 25.0 HP) at 3,375 rpm of horsepower.
  • Manual steering
  • Dry disc brakes
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
ModelCub Cadet SLT1550
Tractor typeLawn tractor
Production years2006-2008
Factory
Dimensions and weight
Length1,720 mm (67.7 in)
Width1,370 mm (53.9 in)
Height1,090 mm (42.9 in)
Wheel base1,160 mm (45.7 in)
Ground clearance110 mm (4.3 in)
Weight250 kg (551 lbs)
Fuel capacity
Fuel tank capacity13.2 liters (3.5 US gal.; 2.9 Imp. gal)

Engine

Engine
Engine modelKohler SV730
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement725 cm3, (44.2 cu·in)
Bore and stroke83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio9.0:1
Horsepower25.3 PS (18.6 kW; 24.9 HP) at 3,375 rpm
StarterElectric
Oil system
Lubrication system:Full pressurized
Oil type:API SJ or higher
Recommended oil:SAE 10W-30
Oil capacity (with filter):1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug:Champion RC12YC
Spark plug gap:0.76 mm (0.0299 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance:0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
BrakesDry disc
Transmission
Transmission manufacturer or modelHydro-Gear 0510
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph)
Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity2.3 L (0.6 US. gal, 0.5 Imp. gal.)

Tires

Tires
Front tiresLawn/turf: 15x6x6
Rear tiresLawn/turf: 22×9.5×12

PTO (Power take-off shaft)

PTO
Front PTO typeIndependent with electric clutch
Front PTO speed

Electrical system

Electrical system
GroundNegative
Charging systemAlternator
Charging amps15A
Battery12V, CCA 235A

Attachments

Cub Cadet 50″ mid-mount mower deck with 3-blade and manual lift
Cutting width1,270 mm (50 in)
Cub Cadet 190-674: 46″ front-mount blade and manual lift
Width1,160 mm (46 in)
Cub Cadet 190-032: 42″ front-mount two-stage snowblower with manual lift
Width1,060 mm (42 in)
