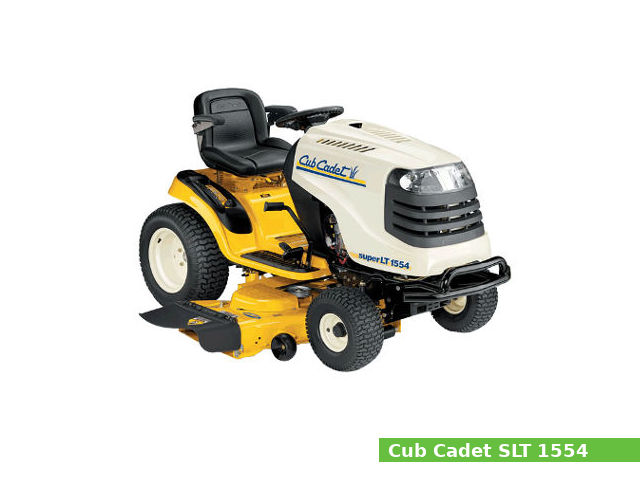

Cub Cadet SLT1554

Cub Cadet SLT1554The Cub Cadet SLT1554 is a lawn tractor model from the 1500 series, manufactured from 2005 to 2008 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet SLT1554 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet SLT1554 lawn tractor features:

  • The Kohler Courage SV740 gasoline engine which produces 27.3 PS (20.1 kW; 27.0 HP) at 3,375 rpm of horsepower.
  • Manual steering
  • Dry disc brakes
  • Open operator station
  • Independent front PTO with electric clutch

General specifications

General Specifications
Model Cub Cadet SLT1554
Tractor type Lawn tractor
Production years 2005-2008
Factory
Dimensions and weight
Length 1,720 mm (67.7 in)
Width 1,520 mm (59.8 in)
Height 1,090 mm (42.9 in)
Wheel base 1,160 mm (45.7 in)
Weight 257 kg (567 lbs)
Fuel capacity
Fuel tank capacity 13.0 liters (3.4 US gal.; 2.9 Imp. gal)

Engine

Engine
Engine model Kohler SV740
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 725 cm3, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 27.3 PS (20.1 kW; 27.0 HP) at 3,375 rpm
Starter Electric
Oil system
Lubrication system: Full pressurized
Oil type: API SJ or higher
Recommended oil: SAE 10W-30
Oil capacity (with filter): 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug: Champion RC12YC
Spark plug gap: 0.76 mm (0.0299 in)
Spark plug torque: 27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance: 0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance: 0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission
Transmission manufacturer or model Hydro-Gear 0510
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph)
Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity 2.3 L (0.6 US. gal, 0.5 Imp. gal.)

Tires

Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 22×9.5×12

PTO (Power take-off shaft)

PTO
Front PTO type Independent with electric clutch
Front PTO speed

Electrical system

Electrical system
Ground Negative
Charging system Alternator
Charging amps 15A
Battery 12V, CCA 235A

Attachments

Cub Cadet 54″ mid-mount mower deck with 3-blade and manual lift
Cutting width 1,370 mm (54 in)
Cub Cadet 190-674: 46″ front-mount blade and manual lift
Width 1,160 mm (46 in)
Cub Cadet 190-032: 42″ front-mount two-stage snowblower with manual lift
Width 1,060 mm (42 in)
