Honda G20

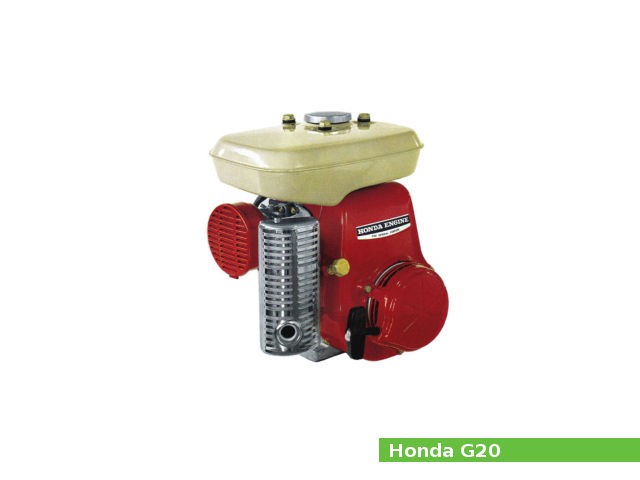

Honda G20 engineThe Honda G20 is an 132 cc, 8.1 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company since 1963 for general-purpose applications.

The Honda G20 engine has a single-cylinder, L-head design with two valves, and a heavy-duty recoil starter. This engine used horizontal type carburetor with a butterfly valve, high voltage ignition system, splash type lubricating system, and forced-air cooling system. The G20 is equipped with a 4.5 L fuel tank.

The Honda G20 engine produced 3.0 PS (2.2 kW; 3.0 HP) of peak output power and 2.0 PS (1.47 kW) at 3400 rpm of continuous rated power.

General information

Engine Specifications
Engine modelG20
Engine type4-stroke, L-head, single-cylinder
Displacement132 cm3, (8.1 cu·in)
Max. horsepower3.0 PS (2.2 kW; 3.0 HP)
Max. torque
Cooling systemForced air
Lubricating systemSplash type
Ignition systemHigh voltage ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel tank capacity4.5 L (1.19 US. gal. 0.99 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Data

Oil system
Lubrication system:Splash type
Oil type:SAE 20 or 30
Recommended oil:Honda 4-stroke or an equivalent
Oil capacity:0.57 L (0.6 US. qt, 0.5 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Ignition system
Type:High voltage ignition
Spark plug:NGK C-6HB
Spark plug gap:0.6-0.7 mm (0.0236-0.0276 in)
