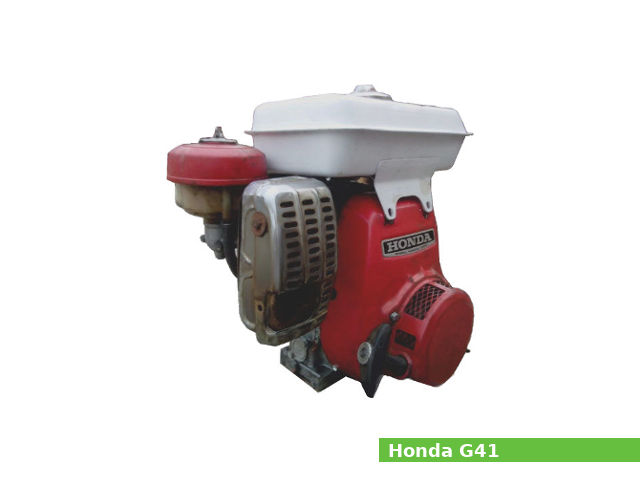

Honda G41

Honda G41The Honda G41 is a 170 cc (10.37 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

It has a 66.0 mm (2.6 in) cylinder bore and 50.0 mm (1.97 in) piston stroke.

The G41 engine produced 4.5 PS (3.31 kW; 4.4 HP) at 4,000 rpm of maximum horsepower.

The Honda G41 features:

  • L-head design
  • High voltage ignition system
  • Horizontal type carburetor with butterfly valve
  • Splash type lubrication system
  • Recoil starter

General information

Engine Specifications
Engine modelG41
Engine type4-stroke, L-head, single-cylinder
Displacement170 cm3, (10.37 cu·in)
Max. horsepower4.5 PS (3.31 kW; 4.4 HP) at 4,000 rpm
Max. torque
Cooling systemForced air
Lubricating systemSplash
Ignition systemHigh voltage ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption300 g/HPh
Fuel tank capacity3.5 L (0.92 US. gal. 0.77 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)415 x 318 x 405 mm (16.3 x 12.5 x 15.9 in)
Dry weight16.0 kg (35.3 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:
Cylinder bore:66.0 mm (2.6 in)
Piston stroke:50.0 mm (1.97 in)

Service Data

Cylinder compression:5.3 kg/cm2 (75 psi)
Oil system
Lubrication system:Splash
Oil type:Honda 4-stroke or an equivalent
Recommended oil:SAE 10W-30
Oil capacity:0.8 L (0.85 US. qt, 0.7 Imp. qt.)
Ignition system
Type:High voltage ignition
Spark plug:NGK: B-4H
Spark plug gap:0.6-0.7 mm (0.0236-0.0276 in)
