Honda GX100

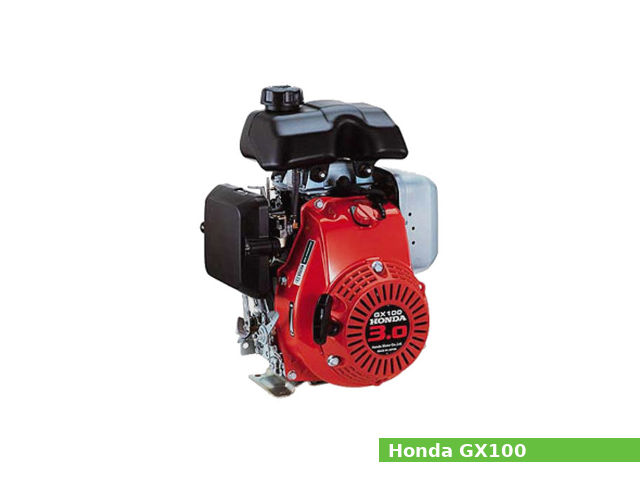

Honda GX100The Honda GX100 is a 98 cc (5.98 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft, manufactured by Honda Motor Company for general-purpose applications.

A 56.0 mm (2.2 in) cylinder bore and 40.0 mm (1.57 in) piston stroke give the GX100 engine a total of 98 cc of displacement. The compression ratio rating is 8.5:1.

The Honda GX100 engine produced 3.0 PS (2.2 kW; 3.0 HP) at 3,600 rpm of maximum output power and 5.7 N·m (0.6 kg·m, 4.2 ft·lb) at 3,600 rpm of peak torque.

The Honda GX100 features:

  • Overhaed camshaft OHC design
  • Transistorized magneto ignition system
  • Horizontal type carburetor with butterfly valve
  • Centrifugal governor
  • Splash lubrication system
  • Forced air cooling system
  • Recoil starter

General information

Engine Specifications
Engine modelGX100
Engine type4-stroke, OHC, single-cylinder
Displacement98 cm3, (5.98 cu·in)
Max. horsepower3.0 PS (2.2 kW; 3.0 HP) at 3,600 rpm
Max. torque5.7 N·m (0.6 kg·m, 4.2 ft·lb) at 3,600 rpm
Cooling systemForced air
Air cleanerDual-element type
Lubricating systemSplash
Ignition systemTransistorized magneto ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption240 g/PSh
Fuel tank capacity1.2 L (0.32 US. gal. 0.26 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)
Dry weight

Cylinder Block and Head

Cylinder block
Compression ratio:8.5:1
Cylinder bore:56.0 mm (2.2 in)
Piston stroke:40.0 mm (1.57 in)
Cylinder internal diameter (standard):56.000 mm (2.2047 in)
Piston skirt outer diameter (standard):55.965-55.985 mm (2.2033-2.2041 in)
Number of piston rings (compression / oil):2/1
Connecting rod small end diameter (standard):13.005-13.020 mm (0.512-0.5126 in)
Side clearance (Top):0.015-0.050 mm (0.0006-0.002 in)
Side clearance (Second):0.015-0.050 mm (0.0006-0.002 in)
Side clearance (Oil):0.015-0.050 mm (0.0006-0.002 in)
Ring end gap (Top):0.150-0.300 mm (0.0059-0.0118 in)
Ring end gap (Second):0.300-0.450 mm (0.0118-0.0177 in)
Crankpin journal diameter:23.970-23.980 mm (0.9437-0.9441 in)
Crankshaft center distance:20 mm (0.785 in)
Cylinder head
Valve arrangement:OHC
Valve steam diameter (INTAKE):3.970-3.985 mm (0.1563-0.1569 in)
Valve steam diameter (EXHAUST):3.935-3.950 mm (0.1549-0.1555 in)
Valve spring free length (INTAKE):25.800 mm (1.0157 in)
Valve spring free length (EXHAUST):25.800 mm (1.0157 in)
Camshaft lobe height (INTAKE):36.483 mm (1.4363 in)
Camshaft lobe height (EXHAUST):36.483 mm (1.4363 in)

Tightening torque

Tightening torque specs
Connecting rod bolt5 Nm; 0.5 kg·m; 3.6 ft·lb
Oil dran plug bolt18 Nm; 1.8 kg·m; 13 ft·lb
Valve adjusting lock nut7.5 Nm; 0.75 kg·m; 5.4 ft·lb
Flywheel nut42 Nm; 4.3 kg·m; 31 ft·lb
Governor arm nut10 Nm; 1.0 kg·m; 7 ft·lb
Stopper plate screw1 Nm; 0.1 kg·m; 0.7 ft·lb
Spark plug11.8 Nm; 1.2 kg·m; 8.7 ft·lb

Service Data

Maximum speed:4,000 ± 200 rpm
Idle speed:1,550 ± 150 rpm
Cylinder compression:5.0 kg/cm2 (71 psi) at 700 rpm
Valve clearance
Intake valve0.15 ± 0.04 mm (0.006 ± 0.002 in)
Exhaust valve0.20 ± 0.04 mm (0.008 ± 0.002 in)
Oil system
Lubrication system:Splash
Oil type:Honda 4-stroke or an equivalent (SE or SF)
Recommended oil:SAE 10W-30
Oil capacity:0.4 L (0.42 US. qt, 0.35 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet:#60
Float height:12 mm mm (0.4724 in)
Pilot screw opening:2-3/8 turns out
Ignition system
Type:Transistorized magneto ignition
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
