Honda GXV270

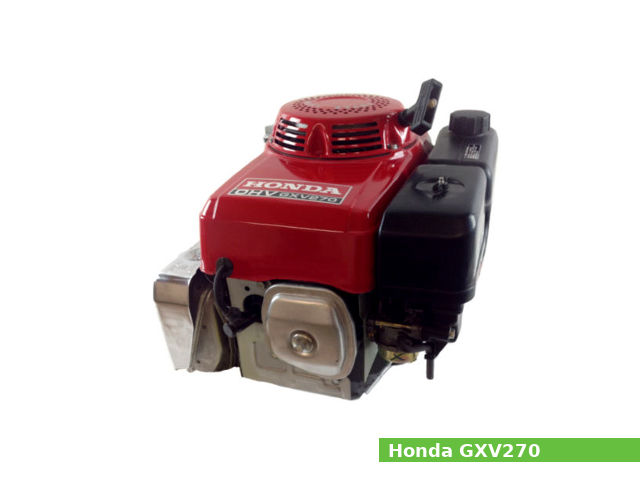

Honda GXV270The Honda GXV270 is a 270 cc, (16.48 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion gasoline engine with a vertical shaft, manufactured by Honda Motor Company for general-purpose applications.

Cylinder bore and piston stroke are 77.0 mm (3.03 in) and 58.0 mm (2.28 in), respectively. Compression ratio rating is 7.8:1.

This engine produced 8.6 PS (6.35 kW; 8.5 HP) at 3,600 rpm of horsepower and 18.0 N·m (1.8 kg·m, 13.3 ft·lb) at 2,500 rpm of torque.

The Honda GXV270 features:

  • Overhead valve (OHV) design
  • Transistorized magneto ignition system
  • Horizontal type carburetor with butterfly valve
  • Centrifugal governor
  • Pressure and splash lubrication system
  • Forced air cooling system
  • Recoil or electric starter

General information

Engine Specifications
Engine modelGXV270
Engine type4-stroke, OHV, single-cylinder
Displacement270 cm3, (16.48 cu·in)
Max. horsepower8.6 PS (6.35 kW; 8.5 HP) at 3,600 rpm
Max. torque18.0 N·m (1.8 kg·m, 13.3 ft·lb) at 2,500 rpm
Cooling systemForced air
Air cleanerDual-element type
Lubricating systemPressure and splash
Ignition systemTransistorized magneto ignition
Fuel systemHorizontal type carburetor with butterfly valve
Fuel consumption240 g/HPh
Fuel tank capacity2.0 L (0.53 US. gal. 0.44 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
Stoping systemIgnition primary circuit ground
GovernorCentrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)410 x 385 x 405 mm (16.1 x 15.2 x 15.9 in)
Dry weight28.0 kg (61.7 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:7.8:1
Cylinder bore:77.0 mm (3.03 in)
Piston stroke:58.0 mm (2.28 in)
Cylinder internal diameter (standard):77.000 mm (3.0315 in)
Piston skirt outer diameter (standard):76.985 mm (3.0309 in)
Number of piston rings (compression / oil):2/1
Side clearance (Top):0.150-0.450 mm (0.0059-0.0177 in)
Side clearance (Second):0.150-0.450 mm (0.0059-0.0177 in)
Ring end gap (Top):0.200-0.400 mm (0.0079-0.0157 in)
Ring end gap (Second):0.200-0.400 mm (0.0079-0.0157 in)
Ring end gap (Oil):0.200-0.700 mm (0.0079-0.0276 in)
Ring width (Top):2.000 mm (0.0787 in)
Ring width (Second):2.000 mm (0.0787 in)
Crankshaft main journal diameter:32.985 mm (1.2986 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2
Valve steam diameter (INTAKE):6.590 mm (0.2594 in)
Valve steam diameter (EXHAUST):6.550 mm (0.2579 in)
Camshaft lobe height (INTAKE):33.000 mm (1.2992 in)
Camshaft lobe height (EXHAUST):32.600 mm (1.2835 in)
Camshaft journal diameter :16.000 mm (0.6299 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt14 Nm; 1.4 kg·m; 10 ft·lb
Cylinder head bolt35 Nm; 3.5 kg·m; 25 ft·lb
Flywheel nut115 Nm; 11.5 kg·m; 83 ft·lb
Pivot adjusting nut10 Nm; 1.0 kg·m; 7 ft·lb
Push rod guide pivot bolt24 Nm; 2.4 kg·m; 17 ft·lb
Oil pan bolt24 Nm; 2.4 kg·m; 17 ft·lb
Air cleaner body cap nut9 Nm; 0.9 kg·m; 6.5 ft·lb
Muffler mounting nut24 Nm; 2.4 kg·m; 17 ft·lb
Exhaust pipe mounting nut24 Nm; 2.4 kg·m; 17 ft·lb
Oil drain plug45 Nm; 4.5 kg·m; 34 ft·lb
Cylinder head cover bolt9 Nm; 0.9 kg·m; 6.5 ft·lb
Fuel tank bolt24 Nm; 2.4 kg·m; 17 ft·lb
Standard torque values
Bolt, nut (5 mm)5.5 Nm; 0.55 kg·m; 4.0 ft·lb
Bolt, nut (6 mm)10 Nm; 1.0 kg·m; 7 ft·lb
Bolt, nut (8 mm)24 Nm; 2.4 kg·m; 17 ft·lb
Bolt, nut (10 mm)37.5 Nm; 3.75 kg·m; 27 ft·lb
Bolt, nut (12 mm)55 Nm; 5.5 kg·m; 40 ft·lb

Service Data

Engine
Maximum speed:3400 ± 150 rpm
Idle speed:1400 ± 150 rpm
Cylinder compression:6.0-8.5 kg/cm2 (85-151 psi) at 600 rpm
Valve clearance
Intake valve clearance:0.15 ± 0.02 mm (0.006 ± 0.001 in)
Exhaust valve clearance:0.20 ± 0.02 mm (0.008 ± 0.001 in)
Oil system
Lubrication system:Pressure and splash
Oil type:Honda 4-stroke or an equivalent (SE or SF)
Recommended oil:SAE 10W-40
Oil capacity:1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Fuel system
Type:Horizontal type carburetor with butterfly valve
Main jet:#85
Float height:11.9-14.5 mm (0.47-0.57 in)
Pilot screw opening:2-1/4 turns out
Ignition system
Type:Transistorized magneto ignition
Ignition timing:20° B.T.D.C. (Fixed)
Spark plug:NGK: BPR5ES NIPPONDENSO: W16EPR-U
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Ignition coil air gap0.3-0.5 mm (0.0118-0.0197 in)
