Honda H3013H

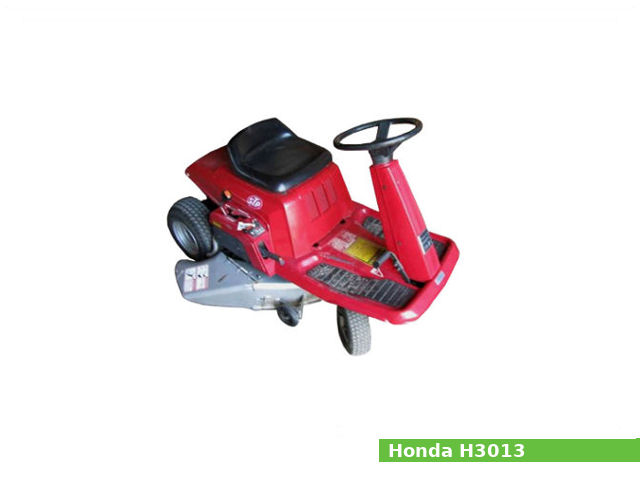

Honda H3013HThe Honda H3013H is a riding lawn mower with Honda GXV340K1 vertical general-purpose engine (337 cc, 20.6 cu-in), hydrostatic transmission and 970 mm (38 in.) delt driven mower deck. The mower deck is adjustable in six increments for cutting heights between 25.0 mm (1 in.) and 90.0 mm (3.5 in).

The Honda GXV390 is an air-cooled single-cylinder four-stroke gasoline engine with a vertical PTO shaft. The GXV390 has an 88.0 mm (3.46 in) of the cylinder bore and 64.0 mm (2.5 in) of the piston stroke and the compression ratio rating of 7.7:1. The Honda GXV390 motor produces 13.0 HP (9.7 kW) at 3,600 rpm and 28.0 Nm (2.8 kg·m, 20.3 ft·lb) of torque at 2,500 rpm.

The Honda H3013H was equipped with hydrostatic transmission – an oil pressure-type variable-speed transmission. The transmission has three approximate ground speeds: “Reverse” speed up to 2.7 km/h (1.7 mph), “Mowing” speed up to 5.3 km/h (3.3 mph) and “Transport” speed up to 7.5 km/h (4.7 mph)

General information

General Specifications
ModelHonda H3013H
Length1,550 mm (61.0 in)
Width1,260 mm (49.6 in)
Height1,000 mm (39.4 in)
Wheel base1,100 mm (43.3 in.)
Dry weight192.0 kg (423.0 lbs)
Fuel tank capacity2.5 l (0.66 US gal., 0.55 Imp gal.)
Battery12V-22AH
Engine
Engine modelHonda GXV390
Displacement389 cm3 (23.7 cu-in)
Bore x stroke88.0 X 64.0 mm (3.46 x 2.5 in)
Max. horsepower13.0 HP (9.7 kW) at 3600 rpm
Max. torque28.0 Nm (2.8 kg·m, 20.3 ft·lb) at 2,500 rpm
CarburetorHorizontal type, butterfly valve
Cooling systemForced-air
Ignition systemTransistorized magneto ignition
Lubricating systemPressure and splash
Starting systemElectric starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity5.3 l (1.3 US gal.)
Hydrostatic type transmission
TypeOil pressure-type variable-speed transmission
Groung speeds Reverse: 2.7 km/h (1.7 mph)
Mowing: 5.3 km/h (3.3 mph)
Transport: 7.5 km/h (4.7 mph)
Wheels and tires
Front tires size11×4.0-5
Front tires pressure98 kPa (1.0 kg/cm2, 14 psi)
Rear tires size16×6.5-8
Rear tires pressure69 kPa (0.7 kg/cm2, 10 psi)
Mower Deck
Deck size970 mm (38 in.)
Height range25-90 mm (1-3.5 in.)

Maintenance data

Engine
Maximum speed3,300 ± 150 rpm
Idle speed1,750 ± 150 rpm
Cylinder compression5.0-8.5 kg/cm2 (71-151 psi) at 600 rpm
Valve clearance
Intake valve0.10 ± 0.02 (0.004 ± 0.001)
Exhaust valve0.15 ± 0.02 (0.006 ± 0.001)
Carburetor
Main jet#95
Float height11.9-14.5 mm (0.47-0.57 in)
Pilot screw opening2-1/2 turns out
Oil system
Oil typeHonda 4-stroke or an equivalent (SF or SG)
Recommended oilSAE 10W-30
Oil capacity1.1 L (1.2 US gal, 1.0 lmp qt)
Ignition system
Ignition timing20 ° B.T.D.C (Fixed)
Spark plugNGK: BPR5ES
NIPPONDENSO: W16EPR-U
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Primary ignition coil resistance0.7-0.9 Ω
Secondary ignition coil resistance6.3-7.7 kΩ
Ignition coil air gap0.4 ± 0.2 (0.016 ± 0.008)
Starter motor
Brush length7.2 mm (0.28 in) limit: 3.5 mm (0.14 in)
Mica depth1.0 mm (0.04 in) limit: 0.2 mm (0.01 in)
Hydrostatic transmission lube
Transmission oil typeHonda hydrostatic transmission oil
Blade bolt tightening torque
Blade bolt45-55 Nm; 4.5-5.5 kg·m; 32.6-39.6 ft·lb
