Kohler CV173

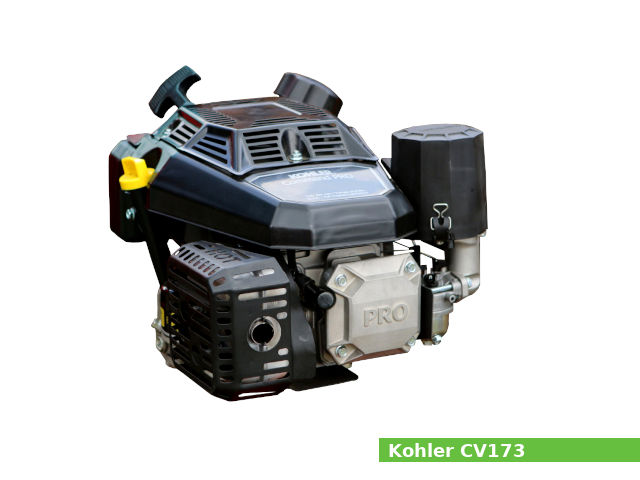

Kohler CV173The Kohler CV173 is a 173 cc (10.6 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine from the Command PRO series with a vertical shaft, manufactured by Kohler Co for general-purpose applications, such as walk-behind mowers, string trimmers, tillers, pressure washers.

The cylinder bore and the piston stroke are 70.0 mm (2.75 in) and 45.0 mm (1.80 in), respectively. Compression ratio rating is 8.0:1.

The Kohler CV173 engine produces 10.5 Nm (1.07 kg·m; 7.75 ft·lb) at 2,600 rpm of maximum torque.

The Kohler CV173 features:

  • OHV design
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Dependable electronic magneto ignition system
  • Carburetor with fixed main jet
  • Mechanical centrifugal governor
  • Full-pressure lubrication with spin-on oil filter
  • Forced air cooling system
  • Recoil starter

General information

Engine Specifications
Engine modelCommand PRO CV173
Engine type4-stroke, OHV, single-cylinder
Displacement173 cm 3 (10.6 cu-in)
Max. horsepower
Max. torque10.5 Nm (1.07 kg·m; 7.75 ft·lb) at 2,600 rpm
Cooling systemForced air
Air cleanerQuad-Clean four stage, cyclonic air filter
Lubricating systemFull-pressure lubrication with spin-on oil filter
Ignition systemDependable electronic magneto
Fuel systemCarburetor with fixed main jet (Nikki or Keihin)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.4 liters (1.48 US.qts, 1.23 Imp. qts)
Starting systemRecoil starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)434 x 353 x 281 mm (17.1 x 13.9 x 11.1 in)
Dry weight16.4 kg (36.2 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.0:1
Cylinder bore:70.0 mm (2.75 in)
Piston stroke:45.0 mm (1.80 in)
Cylinder internal diameter (standard):70.000-70.020 mm (2.7550-2.7560 in)
Number of piston rings (compression / oil):2/1
Piston pin diameter:
Thrust face outer diameter (standard):69.960-69.980 mm (2.7543-2.7551 in)
Ring-to-groove side clearance (Top):0.010-0.020 mm (0.0004-0.0008 in)
Ring-to-groove side clearance (Second):0.010-0.020 mm (0.0004-0.0008 in)
Ring end gap (Top):0.100-0.250 mm (0.0039-0.0098 in)
Ring end gap (Second):0.300-0.500 mm (0.0118-0.0197 in)
Number of main bearings:2
Crankshaft main journal diameter:
Crankpin journal diameter:
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2 (4 valves in total)
Valve head diameter (INTAKE):25.875-26.125 mm (1.0187-1.0285 in)
Valve head diameter (EXHAUST):23.875-24.125 mm (0.9399-0.9498 in)
Valve seat angle (INTAKE):44.5°
Valve seat angle (EXHAUST):44.5°
Valve seat angle (INTAKE):45°
Valve seat angle (EXHAUST):45°
Valve steam diameter (INTAKE):5.465-5.480 mm (0.2152-0.2157 in)
Valve steam diameter (EXHAUST):5.465-5.480 mm (0.2152-0.2157 in)

Tightening torque specs

Tightening torque specs
Connecting rod12.5 Nm (1.3 kgf·m; 9.2 lb·ft)
Cylinder head (torque in 2 increments) Step 1: 13.0 Nm (1.3 kgf·m; 9.6 lb·ft)
Step 2: 20.7 Nm (2.1 kgf·m; 15.3 lb·ft)
Flywheel51.5 Nm (5.3 kgf·m; 38 lb·ft)
Muffler Exhaust stud: 5.0 Nm (0.5 kgf·m; 3.7 lb·ft)
Exhaust nut: 9.5 Nm (1.0 kgf·m; 7.0 lb·ft)
Spark plug27.0 Nm (2.75 kg·m; 20.0 ft·lb)
Oil drain plug13.6 Nm (1.4 kgf·m; 10.0 lb·ft)

Service Data

Valve clearance
Intake/Exhaust:0.0762-0.1270 mm (0.0030-0.0050 in)
Oil system
Lubrication system:Full pressure
Oil type:API SJ or higher
Recommended oil:SAE 10W-30
Oil capacity:0.6 liters (0.63 US.qts, 0.53 Imp. qts)
Fuel system
Type:Carburetor with fixed main jet
Fuel filter:In-line fuel filter
Ignition system
Type:Dependable electronic magneto
Spark plug:Kohler 1413214-S
Spark plug gap:0.76 mm (0.030 in)
Ignition coil air gap0.254 mm (0.010 in)

References

1. Kohler Command PRO CV173, CV200, CV224 service manual. Kohler Co. 2021.
