Kohler CV682

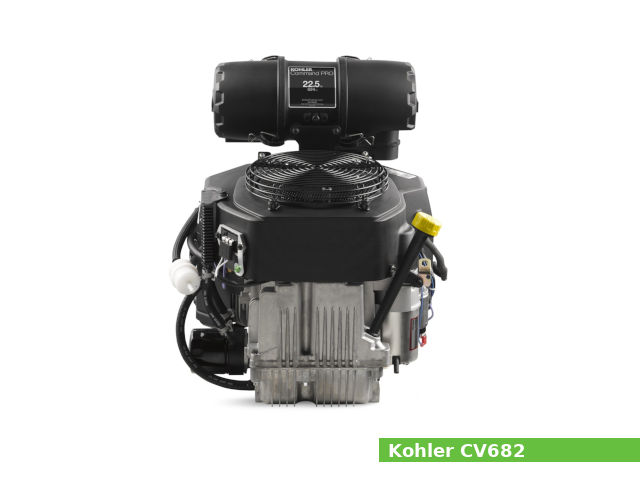

Kohler CV682The Kohler CV682 is a 694 cc (42.4 cu·in) natural aspirated V-twin four-stroke air-cooled internal combustion small gasoline engine from the Command PRO series with a vertical shaft, manufactured by Kohler Co for general-purpose applications.

A 80.0 mm (3.15 in) cylinder bore and 69.0 mm (2.72 in) piston stroke give the CV682 engine a total of 694 cc of displacement. The compression ratio rating is 8.7:1.

The CV682 engine produces 22.8 PS (16.8 KW; 22.5 HP) at 3,600 rpm of maximum horsepower and 52.9 Nm (5.4 kg·m; 39.04 ft·lb) at 2,800 rpm of peak torque.

The Kohler CV682 features:

  • OHV design
  • Hydraulic valve lifters
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Hardened crank journals
  • PTO side-load sleeve bearing
  • CDI or MDI ignition system
  • Two-barrel side-draft carburetor with fixed main jets (Walbro)
  • Mechanical centrifugal governor
  • Full pressure lubrication system
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine modelCommand PRO CV682
Engine type4-stroke, OHV, V-twin
Displacement694 cm3, (42.4 cu·in)
Max. horsepower22.8 PS (16.8 KW; 22.5 HP) at 3,600 rpm
Max. torque52.9 Nm (5.4 kg·m; 39.04 ft·lb) at 2,800 rpm
Cooling systemForced air
Air cleanerHigh-efficiency, heavy-duty air filters
Lubricating systemFull pressure
Ignition systemFixed timing CDI or MDI ignition system
Fuel systemTwo-barrel side-draft carburetor with fixed main jets (Walbro)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)521 x 413 x 506 mm (20.5 x 16.2 x 19.9 in)
Dry weight48.0 kg (105.0 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.7:1
Cylinder bore:80.0 mm (3.15 in)
Piston stroke:69.0 mm (2.72 in)
Cylinder internal diameter (standard):82.988-83.013 mm (3.2672-3.2682 in)
Number of piston rings (compression / oil):2/1
Piston pin diameter:16.995-17.000 mm (0.6691-0.6693 in)
Thrust face outer diameter (standard):79.966 mm (3.1483 in)
Side clearance (Top):0.030-0.070 mm (0.0010-0.0026 in)
Side clearance (Second):0.030-0.070 mm (0.0010-0.0026 in)
Side clearance (Oil):0.060-0.190 mm (0.0022-0.0073 in)
Ring end gap (Top):0.100-0.279 mm (0.0039-0.0110 in)
Ring end gap (Second):1.400-1.679 mm (0.0551-0.0661 in)
Crankshaft
Number of main bearings:2
Crankshaft main journal diameter:40.913-40.935 mm (1.6107-1.6116 in)
Crankpin journal diameter:35.955-35.973 mm (1.4155-1.4163 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2 (4 valves in total)
Valve head diameter (INTAKE):33.370-33.630 mm (1.3138-1.324 in)
Valve head diameter (EXHAUST):29.370-29.630 mm (1.1563-1.1665 in)
Valve seat angle (INTAKE):89°
Valve seat angle (EXHAUST):89°
Valve seat angle (INTAKE):45°
Valve seat angle (EXHAUST):45°
Valve steam diameter (INTAKE):6.982-7.000 mm (0.2749-0.2756 in)
Valve steam diameter (EXHAUST):6.970-6.988 mm (0.2744-0.2751 in)
Valve lift minimal (INTAKE):8.07 mm (0.3177 in)
Valve lift minimal (EXHAUST):8.07 mm (0.3177 in)
Camshaft journal diameter :19.962-19.975 mm (0.7859-0.7864 in)

Tightening torque specs

Tightening torque specs
Intake manifold mounting (torque in 2 increments) Step 1: 7.4 Nm (0.75 kg·m; 5.5 ft·lb)
Step 2: 9.9 Nm (1.00 kg·m; 7.3 ft·lb)
Connecting rod cap fastener13.6 Nm (1.4 kgf·m; 10.0 lb·ft)
Cylinder head Nut (torque in 2 increments):
Step 1: 16.9 Nm (1.72 kg·m; 12.5 ft·lb)
Step 2: 35.5 Nm (3.62 kg·m; 26.2 ft·lb)
Bolt (torque in 2 increments)
Step 1: 22.6 Nm (2.31 kg·m; 16.7 ft·lb)
Step 2: 41.8 Nm (4.26 kg·m; 30.8 ft·lb)
Fan9.9 Nm (1.0 kg·m; 7.3 ft·lb)
Flywheel66.4 Nm (6.77 kg·m; 49.0 ft·lb)
Governor lever nut6.8 Nm (0.69 kg·m; 5.02 ft·lb)
Muffler retaining nuts24.4 Nm (2.5 kg·m; 18.0 ft·lb)
Spark plug27 Nm (2.75 kg·m; 20.0 ft·lb)

Service Data

Engine
Maximum speed:3600±50 rpm
Idle speed:1200±75 rpm
Oil system
Lubrication system:Full pressure
Oil type:API SG, SH, SJ, or higher
Recommended oil:SAE 10W-30
Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts)
Fuel system
Type:Two-barrel side-draft carburetor with fixed main jets (Walbro)
Fuel pump:Pulse type
Fuel filter:In-line
Ignition system
Type:Fixed timing CDI or MDI ignition system
Spark plug:Champion RC12YC
Spark plug gap:0.76 mm (0.030 in)
Ignition coil air gap0.280-0.330 mm (0.011-0.013 in)

References

1. Kohler Command PRO CV682, CV732, CV742, CV752 service manual. Kohler Co. 2021.
