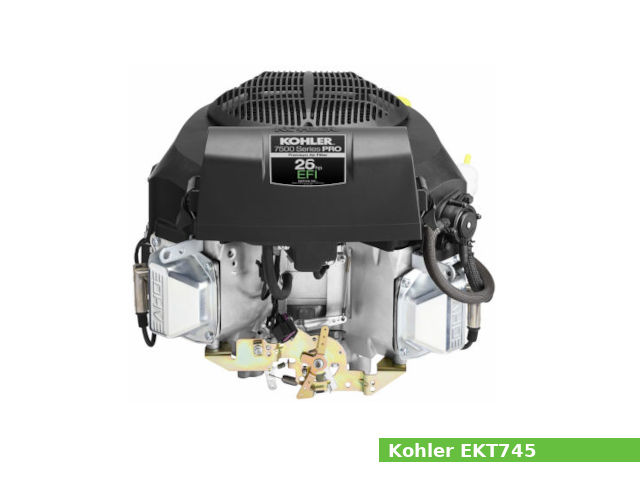

Kohler EKT745The Kohler EKT745 is a 747 cc (45.6 cu·in) natural aspirated V-twin four-stroke air-cooled internal combustion small gasoline engine from the 7500 EFI series with a vertical shaft, manufactured by Kohler Co for general-purpose applications.

A 83.0 mm (3.27 in) cylinder bore and 69.0 mm (2.72 in) piston stroke give the EKT745 engine a total of 747 cc of displacement. The compression ratio rating is 9.1:1.

The EKT745 engine produced 26.4 PS (19.4 KW; 26.0 HP) at 3,600 rpm of maximum horsepower.

The Kohler EKT745 features:

  • OHV design
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Electronic ignition system
  • Electronic fuel injection (EFI)
  • Mechanical centrifugal governor
  • Full pressure lubrication system
  • Forced air cooling system
  • Electric starter

General information

Engine Specifications
Engine modelEKT745
Engine type4-stroke, OHV, V-twin
Displacement747 cm3, (45.6 cu·in)
Max. horsepower26.4 PS (19.4 KW; 26.0 HP) at 3,600 rpm
Max. torque
Cooling systemForced air
Air cleanerHeavy-duty air cleaner
Lubricating systemFull pressure
Ignition systemElectronic ignition system
Fuel systemElectronic fuel injection (EFI)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemElectric starter
GovernorMechanical centrifugal governor
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)473 x 445 x 354 mm (18.6 x 17.5 x 13.9 in)
Dry weight38.6 kg (85.0 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:9.1:1
Cylinder bore:83.0 mm (3.27 in)
Piston stroke:69.0 mm (2.72 in)
Cylinder internal diameter (standard):82.988-83.013 mm (3.2672-3.2682 in)
Thrust face outer diameter (standard):82.978 mm (3.2668 in)
Piston pin diameter:16.995-17.000 mm (0.6691-0.6693 in)
Number of piston rings (compression / oil):2/1
Side clearance (Top):0.030-0.070 mm (0.0010-0.0026 in)
Side clearance (Second):0.030-0.070 mm (0.0010-0.0026 in)
Side clearance (Oil):0.060-0.190 mm (0.0022-0.0073 in)
Ring end gap (Top):0.189-0.277 mm (0.0074-0.0109 in)
Ring end gap (Second):1.519-1.797 mm (0.0598-0.0708 in)
Number of main bearings:2
Crankshaft main journal diameter:40.913-40.935 mm (1.6107-1.6116 in)
Crankpin journal diameter:35.950-35.974 mm (1.4154-1.4163 in)
Cylinder head
Valve arrangement:OHV, gear driven
Valves:2 (4 valves in total)
Valve head diameter (INTAKE):33.370-33.630 mm (1.3138-1.324 in)
Valve head diameter (EXHAUST):29.370-29.630 mm (1.1563-1.1665 in)
Valve seat angle (INTAKE):89°
Valve seat angle (EXHAUST):89°
Valve seat angle (INTAKE):45°
Valve seat angle (EXHAUST):45°
Valve steam diameter (INTAKE):6.982-7.000 mm (0.2749-0.2756 in)
Valve steam diameter (EXHAUST):6.970-6.988 mm (0.2744-0.2751 in)
Valve lift minimal (INTAKE):8.500 mm (0.3346 in.)
Valve lift minimal (EXHAUST):8.500 mm (0.3346 in.)
Camshaft journal diameter:19.948-19.960 mm (0.7854-0.7858 in)

Tightening torque specs

Tightening torque specs
Intake manifold mounting (torque in 2 increments) Step 1: 7.4 Nm (0.75 kg·m; 5.5 ft·lb)
Step 2: 9.9 Nm (1.00 kg·m; 7.3 ft·lb)
Cylinder head bolt (torque in 2 increments) Step 1: 22.6 Nm (2.31 kg·m; 16.7 ft·lb)
Step 2: 41.8 Nm (4.26 kg·m; 30.8 ft·lb)
Rocker arm stud11.3 Nm (1.2 kgf·m; 8.3 ft·lb)
Connecting rod cap Black Coating: 11.3 Nm (1.2 kgf·m; 8.3 ft·lb)
Gray Metallic Coating: 13.6 Nm (1.4 kgf·m; 10.0 ft·lb)
Flywheel retaining screw74.5 Nm (7.6 kgf·m; 55.0 ft·lb)
Governor lever nut6.8 Nm (0.7 kgf·m; 5.0 ft·lb)
Oil drain plug13.6 Nm (1.4 kgf·m; 10.0 ft·lb)
Spark plug27.0 Nm (2.75 kg·m; 20.0 ft·lb)

Service Data

Engine
Maximum speed:3600±50 rpm
Idle speed:1200±75 rpm
Compression pressure
Standard:1.1 MPa (160 psi)
Compression differential limit between cylinders:15% and less
Oil system
Lubrication system:Full pressure
Oil type:API SG, SH, SJ, or higher
Recommended oil:SAE 10W-30
Oil capacity: W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts)
Fuel system
Type:Electronic fuel injection (EFI)
Fuel pump:Pulse type
Fuel filter:In-line
Ignition system
Type:Electronic ignition system
Spark plug:Champion RC12YC
Spark plug gap:0.76 mm (0.030 in)
Ignition coil air gap0.203-0.305 mm (0.008-0.012 in)

References

1. Kohler 7500 series EFI: EKT730-EKT750 service manual. Kohler Co. 2020.
