Kohler SH270

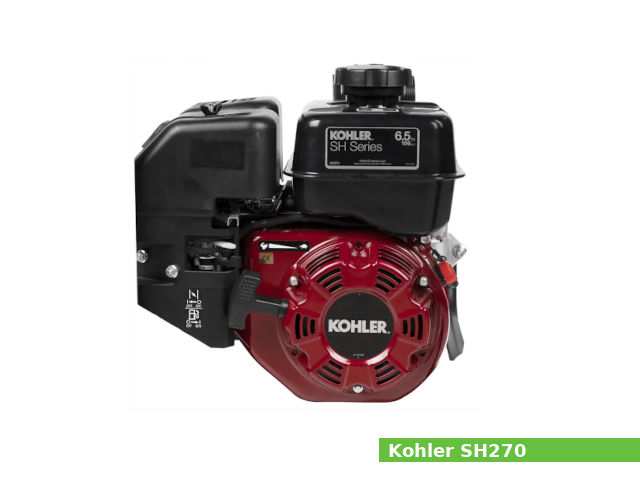

Kohler SH270The Kohler SH270 is a 196 cc (12.0 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine from the Courage/3000/SH series with a horizontal shaft, manufactured by Kohler Co for general-purpose applications.

The cylinder bore and the piston stroke are 68.0 mm (2.70 in) and 54.0 mm (2.1 in), respectively. Compression ratio rating is 8.5:1.

The Kohler SH270 engine produced 6.7 PS (4.9 KW; 6.5 HP) at 3,600 rpm of maximum horsepower.

The Kohler SH270 features:

  • OHV design
  • Aluminum cylinder block
  • Cast iron cylinder liners
  • Dependable magneto breakerless ignition system
  • One-barrel carburetor with fixed main jet
  • Automatic compression release
  • Mechanical centrifugal governor
  • High-inertia flywheel
  • Splash type lubrication system
  • Forced air cooling system
  • Recoil or electric (optional) starter

General information

Engine Specifications
Engine model Courage SH270
Engine type 4-stroke, OHV, single-cylinder
Displacement 196 cm 3 (12.0 cu-in)
Max. horsepower 6.7 PS (4.9 KW; 6.5 HP) at 3,600 rpm
Max. torque
Cooling system Forced air
Air cleaner Replaceable, dual type
Lubricating system Splash type
Ignition system Dependable magneto breakerless ignition system
Fuel system One-barrel carburetor with fixed main jet
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 3.3 liters (3.5 US.qts, 2.9 Imp. qts)
Starting system Recoil or electric starter
Governor Mechanical centrifugal governor
PTO shaft rotation Counterclockwise (from PTO shaft side)
Dimensions (L x W X H) 319x366x343 mm (12.5×14.4×13.5 in)
Dry weight 16.0 kg (35.3 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: 8.5:1
Cylinder bore: 68.0 mm (2.7 in)
Piston stroke: 54.0 mm (2.1 in)
Cylinder internal diameter (standard): 68.027-68.035 mm (2.6782-2.6785 in)
Piston skirt outer diameter: 67.975-67.985 mm (2.6762-2.6766 in)
Number of piston rings (compression / oil): 2/1
Piston pin diameter: 17.992-17.995 mm (0.7083-0.7084 in)
Ring-to-groove side clearance (Top): 0.040 mm (0.0016 in)
Ring-to-groove side clearance (Second): 0.040 mm (0.0016 in)
Ring end gap (Top): 0.325-0.400 mm (0.0130-0.0160 in)
Ring end gap (Second): 0.325-0.400 mm (0.0130-0.0160 in)
Connecting rod small end inner diameter 18.010-18.015 mm (0.7090-0.7092 in)
Connecting rod big end inner diameter 30.021-30.026 mm (1.1819-1.1821 in)
Main bearing journal outer diameter: 24.975-24.989 mm (0.9833-0.9838 in)
Connecting rod journal outer diameter: 29.975-29.985 mm (1.1801-1.1805 in)
Cylinder head
Valve arrangement: OHV, gear driven
Valves: 2
Valve head diameter (INTAKE): 25.000 mm (0.9842 in)
Valve head diameter (EXHAUST): 24.000 mm (0.9449 in)
Valve seat angle (INTAKE): 89.5-90.0°
Valve seat angle (EXHAUST): 89.5-90.0°
Valve face angle (INTAKE): 90.0-90.5°
Valve face angle (EXHAUST): 90.0-90.5°
Valve steam diameter (INTAKE): 5.500 mm (0.2165 in)
Valve steam diameter (EXHAUST): 5.500 mm (0.2165 in)
Valve length (INTAKE): 64.000 mm (2.5197 in)
Valve length (EXHAUST): 62.000 mm (2.4409 in)

Tightening torque specs

Tightening torque specs
Cylinder head (torque in 2 increments) Step 1: 12.0 Nm (1.2 kgf·m; 8.9 ft·lb)
Step 2: 24.0 Nm (2.4 kgf·m; 17.7 ft·lb)
Connecting rod 12.0 Nm (1.2 kgf·m; 8.9 ft·lb)
Flywheel 74.0 Nm (7.5 kgf·m; 54.6 ft·lb)
Oil drain plug 17.0 Nm; (1.73 kg·m; 12.5 ft·lb)
Spark plug 27.0 Nm (2.8 kgf·m; 19.9 ft·lb)

Service Data

Valve lash
Intake valve lash 0.100 mm (0.0040 in)
Exhaust valve lash 0.150 mm (0.0060 in)
Oil system
Lubrication system: Splash type
Oil type: API SJ or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 0.6 liters (0.7 US.qts, 0.58 Imp. qts)
Ignition system
Type: Dependable electronic magneto
Spark plug: Champion RC12YC
Spark plug gap 0.76 mm (0.030 in)
Spark plug torque: 27.0 Nm (2.75 kg·m; 20.0 lb·ft)
Ignition coil air gap 0.254 mm (0.0100 in)

References

1. Kohler Courage, 3000, SH series: SH255, SH265, SH270 service manual. Kohler Co. 2021.
