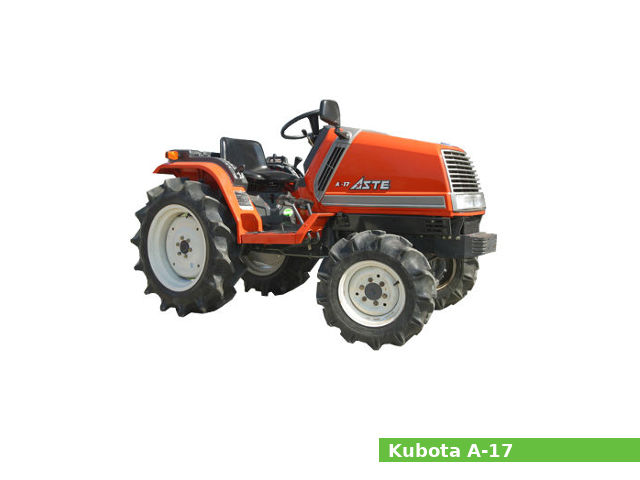

Kubota A-17The Kubota A-17 is a sub-compact utility tractor model from the Aste series, manufactured from 1988 to 1992 by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota A-17 is equipped with a 1.0 L (61.1 cu·in) three-cylinder gasoline engine with 76.0 mm (2.99 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke, and transmission with 6 forward and 2 reverse gears.

The Kubota A-17 utility tractor features:

  • The Kubota D1005 gasoline engine which produces 17 PS (12.5 kW; 16.8 HP) at 2,600 rpm of horsepower
  • Open operator station with two-post ROPS
  • Category 0 rear hitch
  • Rear PTO with 540 rpm

General specifications

General Specifications
ModelKubota A-17
Tractor typeSub-compact utility tractor
Production years1988-1992
Factory
Dimensions and weight
Length2,530 mm (99.6 in)
Width1,040 mm (40.9 in)
Height1,250 mm (49.2 in)
Wheel base1,350 mm (53.1 in)
Ground clearance300 mm (11.8 in)
Weight660 kg (1,455 lbs)
Fuel capacity
Fuel tank capacity17.0 liters (4.5 US gal.; 3.7 Imp. gal)

Engine

Engine Specifications
Engine modelKubota D1005
Engine type4-stroke, SOHC, three-cylinders
Displacement1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke76.0 mm x 73.6 mm (3.0 in x 2.9 in)
Max. horsepower17 PS (12.5 kW; 16.8 HP) at 2,600 rpm
Cooling systemLiquid-cooled
Fuel usedDiesel fuel
Starting systemElectric starting with 12V starter
Starting support deviceGlow plug in combustion chamber
GovernorAll speed mechanical governor
Charging systemAlternator 12V
PTO shaft rotationCounterclockwise
Valve clearance
Intake valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance:0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system:Forced lubrication by trochoid pump
Oil type:CF or higher
Recommended oil:SAE 10W-30, 10W-40
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter:Full flow paper filter (Cartridge type)
Oil pressure indicating:Electrical type switch
Oil and oil filter change interval:Every 200 hours
Fuel system
Fuel injection pump:Bosch MD type mini fuel injection pump
Injection nozzle:Mini Nozzle (DNOPD)
Firing order:1-2-3
Injection pressure:13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering type
Brakes
Transmission
Transmission manufacturer or model
Transmission type
Gears6 forward and 2 reverse
Speed Forward: 12.9 kmh (8 mph)
Reverse: 6.0 kmh (3.7 mph)

Tires

Tires
Front tiresAg: 6-12
Rear tiresAg: 8-18

Rear Hitch

Three-Point Hitch
Category0
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Rear PTO type
Rear PTO speed540 rpm

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery12V
