Kubota B17X

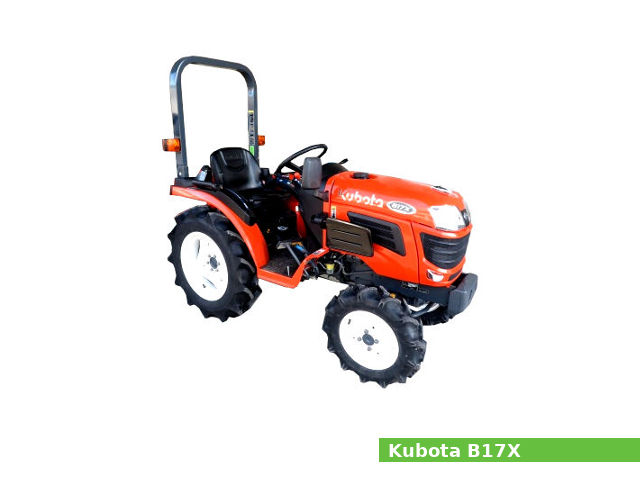

Kubota B17XThe Kubota B17X is a sub-compact utility tractor model from the B series, manufactured from 2015 to by Kubota. It was available in four-wheel drive (4WD) version.

The Kubota B17X is equipped with a 1.0 L (61.1 cu·in) three-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and transmission with 6 forward and 2 reverse gears.

The Kubota B17X utility tractor features:

  • The Kubota D1005 diesel engine which produces 17.0 PS (12.5 kW; 16.8 HP) at 2,600 rpm of horsepower
  • Hydrostatic power steering
  • Wet disc type brakes
  • Open operator station with two-post ROPS
  • Rear PTO with 540 rpm

General specifications

General Specifications
Model Kubota B17X
Tractor type Sub-compact utility tractor
Production years 2015-
Factory
Dimensions and weight
Length 2,040 mm (80.3 in)
Width 900 mm (35.4 in)
Height 1,830 mm (72 in)
Wheel base 1,270 mm (50 in)
Ground clearance 280 mm (11 in)
Weight 575 kg (1,268 lbs)
Fuel capacity
Fuel tank capacity 14.0 liters (3.7 US gal.; 3.1 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1005
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm x 73.6 mm (3.0 in x 2.9 in)
Max. horsepower 17 PS (12.5 kW; 16.8 HP) at 2,600 rpm
Cooling system Liquid-cooled
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type
Gears 6 forward and 2 reverse

Tires

Tires
Front tires Ag: 5.00-12
Rear tires Ag: 8-18

PTO (Power take-off shaft)

PTO
Rear PTO type
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V
