Kubota B2110

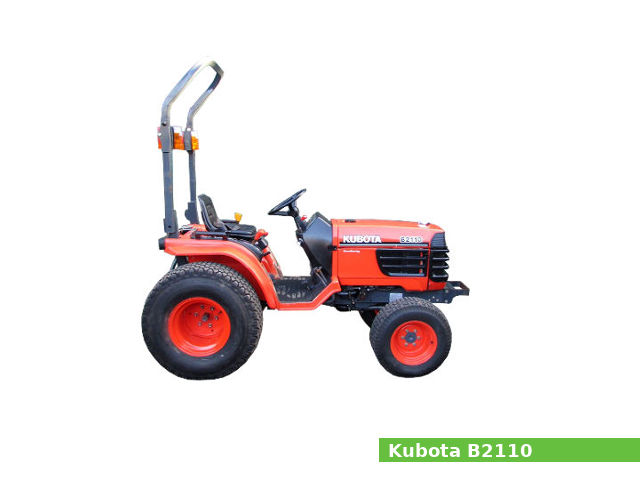

Kubota B2110The Kubota B2110 is a compact utility tractor model from the L series, manufactured from 2000 to 2005 by Kubota. It was available in two-wheel drive (2WD) or four-wheel drive (4WD) versions.

The Kubota B2110 is equipped with a 1.0 L (61.1 cu·in) three-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and one of two transmissions: a gear shift transmission with 6 forward and 2 reverse gears and dry single-plate type clutch or a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota B2110 compact utility tractor features:

  • The Kubota D1005 diesel engine which produces 21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm of horsepower.
  • Integral type power steering
  • Wet disc type brakes
  • Open operator station with two-post ROPS
  • Category I rear hitch with 750 kg (1,654 lbs) of maximum lift capacity
  • Middle PTO with 2,500 rpm
  • Live front PTO with 540 rpm

General specifications

General Specifications
Model Kubota B2110
Tractor type Compact utility tractor
Production years 2000-2005
Factory
Dimensions and weight
Length 2,405 mm (94.7 in)
Width 1,040 mm (40.9 in)
Height 2,268 mm (89.3 in)
Wheel base 1,500 mm (59.1 in)
Weight 668 kg (1,473 lbs)
Fuel capacity
Fuel tank capacity 24.0 liters (6.3 US gal.; 5.3 Imp. gal)

Engine

Engine Specifications
Engine model Kubota D1005
Engine type 4-stroke, SOHC, three-cylinders
Displacement 1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm x 73.6 mm (3.0 in x 2.9 in)
Max. horsepower 21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm
Max. torque 59.0 N·m (6 kg·m, 43.5 ft·lb)
Cooling system Liquid-cooled
Coolant capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Fuel used Diesel fuel
Starting system Electric starting with 12V starter
Starting support device Glow plug in combustion chamber
Governor All speed mechanical governor
Charging system Alternator 12V
PTO shaft rotation Counterclockwise
Valve clearance
Intake valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve clearance: 0.145-0.185 mm (0.0057-0.0073 in)
Oil system
Lubrication system: Forced lubrication by trochoid pump
Oil type: CF or higher
Recommended oil: SAE 10W-30, 10W-40
Oil capacity: 3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Oil pressure: At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
Oil filter: Full flow paper filter (Cartridge type)
Oil pressure indicating: Electrical type switch
Oil and oil filter change interval: Every 200 hours
Fuel system
Fuel injection pump: Bosch MD type mini fuel injection pump
Injection nozzle: Mini Nozzle (DNOPD)
Firing order: 1-2-3
Injection pressure: 13.73 MPa (140 kgf/cm2, 1,991 psi)

Transmission and chassis

Chassis, steering and brakes
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Integral type power
Brakes Wet disc type
Transmission
Transmission manufacturer or model
Transmission type Gear shift with dry single plate type clutch
Gears 6 forward and 2 reverse
Speed Forward: 17.8 kmh (11.1 mph)
Reverse: 7.0 kmh (4.4 mph)
Transmission oil capacity 11.5 L (3 US. gal, 2.5 Imp. gal.)
Transmission № 2
Transmission manufacturer or model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 20.9 kmh (13 mph)
Reverse: 16.7 kmh (10.4 mph)
Transmission oil capacity 12.5 L (3.3 US. gal, 2.7 Imp. gal.)

Tires

Tires
Front tires Ag: 6-12
Rear tires Ag: 9.5-16

Rear Hitch

Three-Point Hitch
Category I
Control type Position control
Lift capacity 750 kg (1,655 lbs)

PTO (Power take-off shaft)

PTO
Middle PTO type
Middle PTO speed 2,500 rpm
Rear PTO type Live
Rear PTO speed 540 rpm

Electrical system

Electrical system
Ground Negative
Charging system
Charging amps
Battery 12V, CCA: 433A

Hydraulic system

Hydraulic system
Hydraulic type Open center
Pump flow 4.4 gpm (16.7 lpm)
Steering flow 2.6 gpm (9.8 lpm)
Total flow 7.0 gpm (26.5 lpm)
