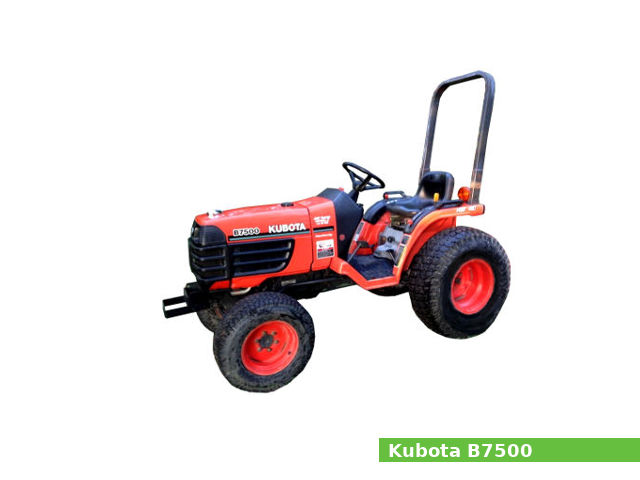

The Kubota B7500 is a compact utility tractor model from the B series, manufactured from 2000 to 2003 by Kubota. It was available in two-wheel drive (2WD) version.
The Kubota B7500 is equipped with a 1.0 L (61.1 cu·in) three-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke, and one of two transmissions: a gear shift transmission with 6 forward and 2 reverse gears and with dry disc clutch or a hydrostatic transmission with infinite (2-range) forward and reverse gears.
The Kubota B7500 utility tractor features:
- The Kubota D1005-E-D16 diesel engine which produces 21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm of horsepower
- Power steering
- Wet disc type brakes
- Open operator station with two-post ROPS
- Category I rear hitch with 615 kg (1,356 lbs) of maximum lift capacity
- Middle PTO with 2,500 rpm
- Transmission (gear) or independent (HSD) rear PTO with 540 rpm
The Kubota B7500 variants:
- B7500D – gear shift transmission
- B7500HSD – hydrostatic transmission
General specifications
| General Specifications |
| Model |
Kubota B7500 |
| Tractor type |
Compact utility tractor |
| Production years |
2000-2003 |
| Factory |
|
| Dimensions and weight |
| Length |
2,290 mm (90.2 in)
|
| Width |
1,070 mm (42.1 in)
|
| Height |
1,940 mm (76.4 in)
|
| Wheel base |
1,490 mm (58.7 in)
|
| Weight |
600 kg (1,323 lbs)
|
| Fuel capacity |
| Fuel tank capacity |
19.0 liters (5 US gal.; 4.2 Imp. gal) |
Engine
| Engine Specifications |
| Engine model |
Kubota D1005-E-D16 |
| Engine type |
4-stroke, SOHC, three-cylinders |
| Displacement |
1.0 L, 1,001 cm2, (61.1 cu·in) |
| Bore and stroke |
76.0 mm x 73.6 mm (3.0 in x 2.9 in) |
| Max. horsepower |
21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm |
| Max. torque |
59.7 N·m (6.1 kg·m, 44 ft·lb) |
| Cooling system |
Liquid-cooled |
| Coolant capacity: |
3.8 L (4 US. qt, 3.3 Imp. qt.) |
| Fuel used |
Diesel fuel |
| Starting system |
Electric starting with 12V starter |
| Starting support device |
Glow plug in combustion chamber |
| Governor |
All speed mechanical governor |
| Charging system |
Alternator 12V |
| PTO shaft rotation |
Counterclockwise |
| Valve clearance |
| Intake valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Exhaust valve clearance: |
0.145-0.185 mm (0.0057-0.0073 in) |
| Oil system |
| Lubrication system: |
Forced lubrication by trochoid pump |
| Oil type: |
CF or higher |
| Recommended oil: |
SAE 10W-30, 10W-40 |
| Oil capacity: |
3.0 L (3.2 US. qt, 2.6 Imp. qt.) |
| Oil pressure: |
At idle speed: 49 MPa (0.5 kgf/cm2, 7 psi)
At rated speed: 196 to 441 MPa (2.0-4.5 kgf/cm2, 28 to 64 psi)
|
| Oil filter: |
Full flow paper filter (Cartridge type) |
| Oil pressure indicating: |
Electrical type switch |
| Oil and oil filter change interval: |
Every 200 hours |
| Fuel system |
| Fuel injection pump: |
Bosch MD type mini fuel injection pump |
| Injection nozzle: |
Mini Nozzle (DNOPD) |
| Firing order: |
1-2-3 |
| Injection pressure: |
13.73 MPa (140 kgf/cm2, 1,991 psi) |
Transmission and chassis
| Chassis, steering and brakes |
| Chassis |
4×4 MFWD 4WD |
| Steering type |
Power |
| Brakes |
Wet disc type |
| Transmission |
| Transmission manufacturer or model |
– |
| Transmission type |
Gear shift with dry disc clutch |
| Gears |
6 forward and 2 reverse |
| Transmission oil capacity |
11.5 L (3 US. gal, 2.5 Imp. gal.) |
| Transmission № 2 |
| Transmission manufacturer or model |
– |
| Transmission type |
Hydrostatic |
| Gears |
Infinite (2-range) forward and reverse |
| Transmission oil capacity |
12.5 L (3.3 US. gal, 2.7 Imp. gal.) |
Tires
| Tires |
| Front tires |
Ag: 6-12 |
| Rear tires |
Ag: 9.5-16 |
Rear Hitch
| Three-Point Hitch |
| Category |
I |
| Control type |
– |
| Lift capacity (at ends) |
615 kg (1356 lbs) |
PTO (Power take-off shaft)
| PTO |
| Middle PTO type |
– |
| Middle PTO speed |
2,500 rpm |
| Rear PTO type |
Transmission (gear) or independent (HSD) |
| Rear PTO speed |
540 rpm |
Electrical system
| Electrical system |
| Ground |
Negative |
| Charging system |
– |
| Charging amps |
– |
| Battery |
12V, CCA: 433A |
Hydraulic system
| Hydraulic system |
| Hydraulic type |
Open center |
| Total flow |
7.0 gpm (26.5 lpm) |
Attachments
| Kubota RCK54-24B: 54″ mid-mount mower deck with 3-blade and hydraulic lift |
| Cutting width |
1,370 mm (54 in) |
| Weight |
156 kg (344 lb) |
| Cut height |
30-100 mm (1.5 to 4 in) |
| Kubota RCK60-24B: 60″ mid-mount mower deck with 3-blade and hydraulic lift |
| Cutting width |
1,520 mm (60 in) |
| Weight |
157 kg (348 lb) |
| Cut height |
30-100 mm (1.5 to 4 in) |
| Kubota FZB2019: 60″ front-mount blade |
| Cutting width |
1,520 mm (60 in) |
| Height |
440 mm (17.5 in) |
| Lift height |
190 mm (7.5 in) |
| Cut depth |
60 mm (2.5 in) |
| Kubota B2650: 50″ front-mount two-stage snow blower |
| Clearing width |
1,270 mm (50 in) |
| Kubota B2660: 60″ front-mount two-stage snow blower |
| Clearing width |
1,520 mm (60 in) |
| Kubota LA272 loader |
| Height (to pin): |
1,770 mm (69.7 in) |
| Clearance, dumped bucket: |
1,310 mm (51.6 in) |
| Dump reach: |
680 mm (26.8 in) |
| Dump angle: |
45° |
| Reach at ground: |
1,280 mm (50.4 in) |
| Rollback angle: |
24° |
| Breakout force (lift): |
454 kg (1,005 lbs) |
| Lift to full height (at pin): |
310 kg (685 lbs) |
| Bucket width: |
1,210 mm (48.0 in) |
| Kubota LA302 loader |
| Height (to pin): |
1,760 mm (69.5 in) |
| Clearance, dumped bucket: |
1,320 mm (52.0 in) |
| Dump reach: |
640 mm (25.4 in) |
| Dump angle: |
45° |
| Reach at ground: |
1,290 mm (51.0 in) |
| Rollback angle: |
24° |
| Breakout force (lift): |
508 kg (1,120 lbs) |
| Lift to full height (at pin): |
350 kg (770 lbs) |
| Bucket width: |
1,210 mm (48.0 in) |
| Kubota B4672A backhoe |
| Weight: |
383 kg (845 lbs) |
| Transport height: |
1710 mm (67.7 in) |
| Digging depth: |
1,870 mm (73.9 in) |
| Reach from pivot: |
2,490 mm (98.1 in) |
| Loading height: |
1,650 mm (65 in) |
| Bucket force: |
1,338 kg (2,950 lbs) |
| Dipperstick force: |
789 kg (1,740 lbs) |
