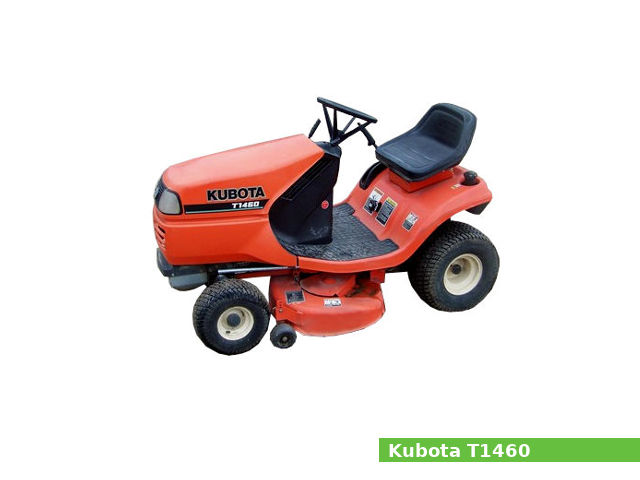

Kubota T1460

Kubota T1460The Kubota T1460 is a lawn tractor model from the T series, manufactured from 1991 to 2001 by Kubota. It was available in two-wheel drive (2WD) version.

The Kubota T1460 is equipped with a 0.4 L (25.8 cu·in) single-cylinder gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke, and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1460 lawn tractor features:

  • The Kawasaki FC420V gasoline engine which produces 12.6 PS (9.3 kW; 12.5 HP) of horsepower
  • Manual steering
  • Open operator station

General specifications

General Specifications
ModelKubota T1460
Tractor typeLawn tractor
Production years1991-2001
Factory
Dimensions and weight
Length1,710 mm (67.3 in)
Width1,320 mm (52 in)
Height
Wheel base
Weight240 kg (529 lbs)
Fuel capacity
Fuel tank capacity

Engine

Engine
Engine modelKawasaki FC420V
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.4 L, 423 cm3, (25.8 cu·in)
Bore and stroke89.0 mm X 68.0 mm (3.5 in X 2.68 in)
Compression ratio8.4:1
Horsepower12.6 PS (9.3 kW; 12.5 HP)
StarterElectric
Air filterTwo-stage with replaceable filter element
Oil system
Lubrication system:Full pressurized
Oil type:4-stroke or an equivalent (SF, SE, SD)
Recommended oil:SAE 10W-30, 10W-40
Ignition system
Spark plug:NGK BPR5ES or Champion RN11YC
Spark plug gap:0.7-0.8 mm (0.0276-0.0315 in)
Valve clearance
Intake valve clearance:0.15 mm (0.006 in)
Exhaust valve clearance:0.15 mm (0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission
Transmission manufacturer or model
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph)
Reverse: 4.0 kmh (2.5 mph)

Tires

Tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 18×8.50-8, 20×10.00-8

Electrical system

Electrical system
GroundNegative
Charging system
Charging amps
Battery12V

Attachments

Kubota RCK40LT: 40″ mid-mount mower
Cutting width1,010 mm (40.0 in)
Cut height20-100 mm (1 to 4 in)
Kubota T2083: 46″ front-mount blade
Cutting width1,160 mm (46.0 in)
Kubota T2738: 38″ front-mount sanow blower
Cutting width960 mm (38.0 in)
