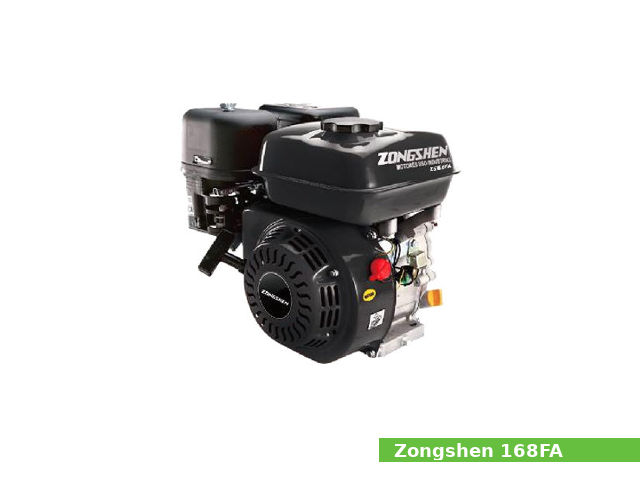

Zongshen 168FA(E) engineThe Zongshen 168FA(E) is a 0.2 L (163 cc, 9.95 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion small gasoline engine with a horizontal shaft from Zongshen BT-series, manufactured by Zongshen Power Co. for general-purpose applications.

The ZS 168FA(E) engine has a single-cylinder, overhead valve (OHV) design, and recoil starter (168FA) or electric starter (168FAE). This engine used a carburetor fuel system, transistorized magneto ignition system, splash type lubricating system, and forced-air cooling system. The ZS 168FA(E) is equipped with a 2.6 L (0.69 US. gal. 0.57 Imp. gal.) fuel tank.

The Zongshen 168FA(E) engine produced 4.8 PS (3.5 kW; 4.7 HP) at 3,600 rpm of maximum output power and 8.8 N·m (0.9 kg·m, 6.5 ft·lb) of peak torque.

General information

Engine Specifications
Engine modelZS 168FA(E)
Engine type4-stroke, OHV, single-cylinder
Displacement163 cm3, (9.95 cu·in)
Max. horsepower4.8 PS (3.5 kW; 4.7 HP) at 3,600 rpm
Max. torque8.8 N·m (0.9 kg·m, 6.5 ft·lb)
Cooling systemForced air
Lubricating systemSplash type
Ignition systemTransistorized ignition
Fuel systemCarburetor
Fuel consumption395 g/kWh
Fuel tank capacity2.6 L (0.69 US. gal. 0.57 Imp. gal.)
Fuel usedUnleaded gasoline (octane number 86 or higher)
Starting systemRecoil or electric starter
PTO shaft rotationCounterclockwise (from PTO shaft side)
Dimensions (L x W X H)272 x 246 x 337 mm (10.7 x 9.7 x 13.3 in)
Dry weight15.0 kg (33.1 lbs)

Cylinder Block and Head

A 68.0 mm (2.68 in) cylinder bore and 45.0 mm (1.77 in) piston stroke give the ZS 168FA(E) engine a total of 163 cc of displacement. Compression ratio rating is 8.5:1.

Cylinder block
Compression ratio:8.5:1
Cylinder bore:68.0 mm (2.68 in)
Piston stroke:45.0 mm (1.77 in)
Crankshaft center distance:22.5 mm (0.885 in)
Cylinder head
Valve arrangement:OHV
Valves:2

Service Data

The 4-stroke engine oil with a viscosity of SAE 10W-30 is recommended for the ZS 168FA(E), refilling oil capacity is 0.6 L (0.63 US. qt, 0.53 Imp. qt.). The valve clearance is 0.10-0.15 mm (0.0039-0.0059 in) for intake valves and 0.15-0.20 mm (0.0059-0.0079 in) for exhaust valves.

Engine
Maximum speed:3,900 rpm
Idle speed:1,800±200 rpm
Valve clearance
Intake valve clearance (COLD):0.10-0.15 mm (0.0039-0.0059 in)
Exhaust valve clearance (COLD):0.15-0.20 mm (0.0059-0.0079 in)
Oil system
Lubrication system:Splash
Oil type:4-stroke engine oil
Recommended oil:SAE 10W-30
Oil capacity:0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Fuel system
Type:Carburetor
Ignition system
Type:Transistorized ignition
Ignition timing:23°±2° B.T.D.C.
Spark plug gap:0.6-0.8 mm (0.0236-0.0315 in)
Spark plug torque:20 N·m (2 kg·m, 14.7 ft·lb)
