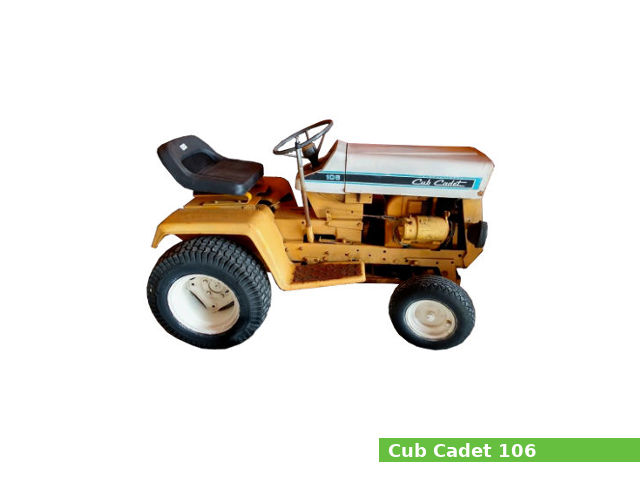

Cub Cadet 106The Cub Cadet 106 is a garden tractor model from the 1X6/1X7 series, manufactured from 1969 to 1971 by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA. It was available in a two-wheel drive (2WD) version.

The Cub Cadet 106 is equipped with a 391 cc (23.9 cu·in) single-cylinder gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and a gear-type transmission with 3 forward and 1 reverse gear and dry disc clutch.

The Cub Cadet 106 garden tractor features:

  • The Kohler K241A gasoline engine which produces 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of horsepower.
  • Manual steering
  • Dry disc brakes
  • Open operator station
  • Cub Cadet three-point hitch
  • Independent front PTO with 3.600 rpm
  • Transmission rear PTO with 515 rpm

General specifications

General Specifications
ModelCub Cadet 106
Tractor typeGarden tractor
Production years1969-1971
FactoryLouisville, Kentucky, USA
Dimensions and weight
Length1,620 mm (63.8 in)
Width840 mm (33.1 in)
Height1,000 mm (39.4 in)
Wheel base1,090 mm (42.9 in)
Ground clearance150 mm (5.9 in)
Weight281 kg (619 lbs)
Fuel capacity
Fuel tank capacity6.2 liters (1.6 US gal.; 1.4 Imp. gal)

Engine

Engine Specifications
Engine modelKohler K241AS
Engine type4-stroke, L-head (side valve), single-cylinder
Displacement391 cm3, (23.86 cu·in)
Bore and stroke82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Compression ratio7.0:1
Max. horsepower10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Torque22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,200 rpm
Cooling systemForced air
Lubricating systemSplash type
Ignition systemBattery ignition system
Fuel systemCarburetor
Starting systemElectirc starter
Compression pressure
Normal:7.7-8.4 kg/cm2 (7.6-8.3 bar, 110-120 psi) / 1,000 rpm
Valve clearance
Intake valve clearance:0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:Splash type
Oil type:API SF or SG
Recommended oil: Summer: SAE 30W
Winter: SAE 5W-20, 5W-30
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Ignition system
Type:Battery ignition system
Spark plug:Champion RH10
Spark plug gap:0.65 mm (0.0256 in)
Spark plug torque:27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis4×2 2WD
Steering typeManual
BrakesDry disc
Transmission
Transmission manufacturer or model
Transmission typeGear type with dry disc clutch
Gears3 forward and 1 reverse
Speed Forward: 10.9 kmh (6.8 mph)
Reverse: 4.0 kmh (2.5 mph)
Transmission oil capacity3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Transmission № 2
Transmission manufacturer or model
Transmission typeCreeper
Gears6 forward and 2 reverse
Speed Forward: 10.9 kmh (6.8 mph)
Reverse: 4.0 kmh (2.5 mph)
Transmission oil capacity Transmission: 3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Creeper: 0.5 L (0.1 US. gal, 0.1 Imp. gal.)

Tires

Tires
Front tiresLawn/turf: 4.80×4.00-8
Rear tiresLawn/turf: 6-12

Rear Hitch

Three-Point Hitch
CategoryCub Cadet three-point
Control type
Lift capacity (at ends)

PTO (Power take-off shaft)

PTO
Front PTO typeIndependent
Front PTO speed3.600 rpm
Rear PTO typeTransmission with dry disc clutch
Rear PTO speed515 rpm

Electrical system

Electrical system
GroundNegative
Charging systemGenerator
Charging amps15A
Battery12V

Serial numbers

Cub Cadet 106 serial numbers
1969307000
1970322858
1971373301
Final400000

Attachments

Cub Cadet 38″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width960 mm (38 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 42″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width1,060 mm (42 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 48″ mower deck with 3-blade and manual lift or electric lift (optional)
Cutting width1,210 mm (48 in)
Cutting height:20-100 mm (1-4 in)
Cub Cadet 42″ blade and manual lift and manual angle
Cutting width1,060 mm (42 in)
Height:400 mm (16 in)
Cub Cadet QA-36: 36″ two-stage front-mount snow blower
Cleaning width910 mm (36 in)
Weight77 kg (170 lbs)
Cub Cadet 42″ two-stage front-mount snow blower
Cleaning width1,060 mm (42 in)
Weight81 kg (180 lbs)
