Cub Cadet LTX 1045 lawn tractor specs and service data

The Cub Cadet LTX 1045 is a lawn tractor model from the LTX 1000 series, manufactured from 2009 to 2014 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet LTX 1045 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet LTX 1045 lawn tractor features:

The Kohler Courage SV600 gasoline engine which produces 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of horsepower.
Manual steering
Open operator station

General specifications

General Specifications
Model	Cub Cadet LTX1045
Tractor type	Lawn tractor
Production years	2009-2014
Factory	–
Dimensions and weight
Length	1,750 mm (68.9 in)
Width	–
Height	–
Wheel base	1,200 mm (47.2 in)
Weight	230 kg (507 lbs)
Fuel capacity
Fuel tank capacity	12.5 liters (3.3 US gal.; 2.7 Imp. gal)

Engine

Engine
Engine model	Kohler SV600
Engine type	Four-stroke, air-cooled
Cylinders	1
Fuel type	Gasoline
Displacement	597 cm³, (36.4 cu·in)
Bore and stroke	94.0 mm X 86.0 mm (3.70 in X 3.39 in)
Compression ratio	8.5:1
Horsepower	20.3 PS (14.9 KW; 20.0 HP) at 3,600 rpm
Torque	46.1 N·m (4.7 kg·m, 34 ft·lb)
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	API SJ or higher
Recommended oil:	SAE 10W-30
Oil capacity (with filter):	1.5 L (1.6 US.qts, 1.32 Imp. qts)
Ignition system
Spark plug:	Champion RC12YC
Spark plug gap:	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:	0.127 mm (0.005 in)
Exhaust valve clearance:	0.178 mm (0.007 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	–
Transmission
Transmission manufacturer or model	Tuff Torq K46A
Transmission type	Hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity	1.8 L (0.5 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 15x6x6
Rear tires	Lawn/turf: 20x8x8

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with manual lever clutch
Front PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	Flywheel alternator
Charging amps	15A
Battery	12V CCA: 190A

Attachments

Cub Cadet 46″ mid-mount mower deck with 2-blade and manual lift
Cutting width	1,160 mm (46 in)
Cut height	30-100 mm (1.5-4 in)
Cut positions	12
Cub Cadet 190-833: 46″ front-mount blade and manual lift
Width	1,160 mm (46 in)
Cub Cadet 190-032: 42″ front-mount two-stage snowblower with manual lift
Width	1,060 mm (42 in)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

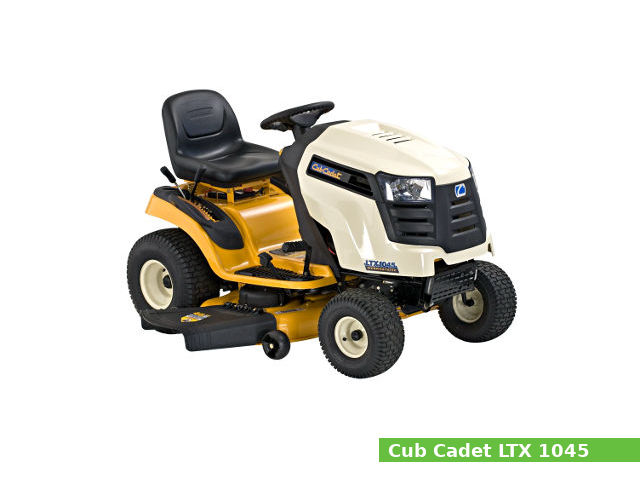

Cub Cadet LTX 1045
